RSBW35M 106mm OD Backstop Self Contained Sprag Type Clutch
RSBW35M 106mm OD Backstop Self Contained Sprag Type Clutch
RSBW35M 106mm OD Backstop Self Contained Sprag Type Clutch
RSBW35M 106mm OD Backstop Self Contained Sprag Type Clutch
RSBW35M 106mm OD Backstop Self Contained Sprag Type Clutch
RSBW35M 106mm OD Backstop Self Contained Sprag Type Clutch
RSBW35M 106mm OD Backstop Self Contained Sprag Type Clutch
RSBW35M 106mm OD Backstop Self Contained Sprag Type Clutch
RSBW35M 106mm OD Backstop Self Contained Sprag Type Clutch
RSBW35M 106mm OD Backstop Self Contained Sprag Type Clutch
Specifications
Brand Name :
SUMA
Model Number :
RSBW35M
Certification :
ISO SGS
Place of Origin :
CHINA
MOQ :
1
Price :
USD86-USD105 PER PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
1000PCS Per Month
Delivery Time :
7-10 Days
Packaging Details :
Carton Box
Product Name :
Backstop Clutch RSBW35M
Material :
GCr15 Bearing Steel
Size :
35*106*35mm
Torque Capacity :
375Nm
Rotation Speed :
400RPM
Unit Weight :
2Kg
Warranty :
1 Year
OEM :
Accept
Description

RSBW35M Self Contained Freewheel Backstop Clutch One Way
Features

Application:
Primarily used as a backstop. This type provide a high torque capacity with a minimum space requirement.

Structure:
Type RSBW is a DC sprag type freewheel. It is self-contained, centered by plain bearings for low rotational speeds, and sealed using shield protected O rings.

Technical Datas

Product name Sprag type freewheel clutches
Model RSBW35M
Torque capacity 375Nm
Overrunning speeds 400 min -1
Inner diameter 35mm
Outer diameter 106mm
Thickness 35mm
Weight 4.6kg
Application Fishinery machinery, Reducer, household appliances
Package Carton Box
Payment terms TT, L/C, D/A, D/P, Western Union, Paypal
Delivery time 7-10 Days


Dimensions and Capacities

Type Size Overrunning Speeds Weight









RSBW

 dH7 TKN1) nimax D L 1 F E B N L bH11
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
20 375 400 106 35 113 102.5 40 35 15 18 2
25 606 400 106 48 113 102.5 40 35 15 18 2.6
30 606 400 106 48 113 102.5 40 35 15 18 2.5
35M 375 400 106 35 113 102.5 40 35 15 18 2
35 606 400 106 48 113 102.5 40 35 15 18 2.4
40 1295 300 132 52 125 115 60 35 15 18 4.6
45 1295 300 132 52 125 115 60 35 15 18 4.5
50 1295 300 132 52 125 115 60 35 15 18 4.5
55 1295 300 132 52 125 115 60 35 15 18 4.4
60 2550 250 161 54 140 130 70 35 15 18 6.5
70 2550 250 161 54 140 130 70 35 15 18 6.4
80 4875 200 190 70 165 150 70 45 20 25 9.9
90 4875 200 190 70 165 150 70 45 20 25 9.8
Mounting and Coupling

Pictures

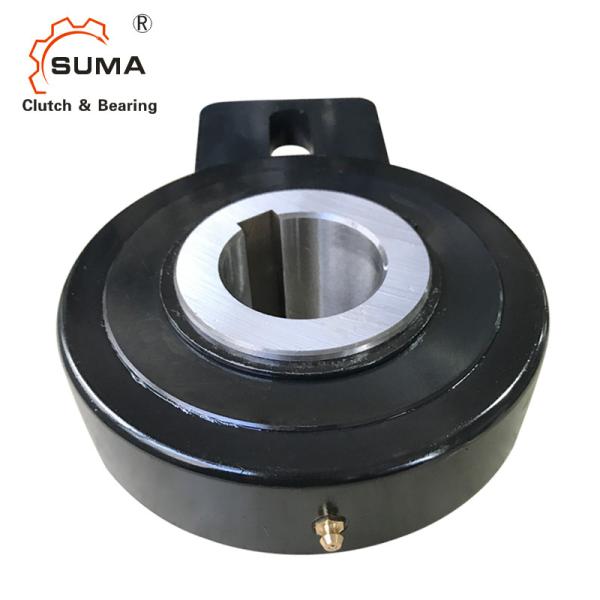

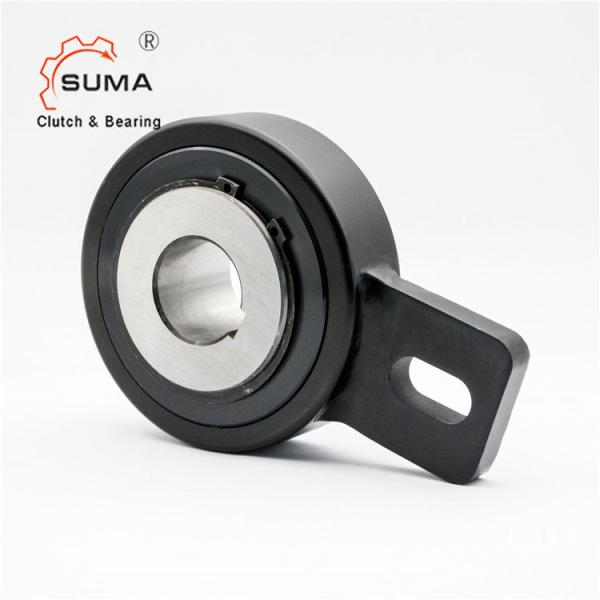

RSBW35M 106mm OD Backstop Self Contained Sprag Type Clutch

FAQ

Q: How do you pack the goods?

  • Total less than 25 KG : 29*28*19CM carton box
  • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
