Specifications
MOQ :
500
Price :
6.9
Model NO. :
TX-HG031
Operating Wavelength :
Microwave
Sturcture Form :
Surface Antenna
VSWR :
1.5~2
Dimensions :
20*262mm
Material :
Fiberglass
Frequency :
3G 4G 5G
Antenna Gain :
5 dBi
Polarization :
Linear
Impedance :
50 Ohm
Radiator Material :
Brass
Plastic Material :
Fiberglass
Cable Type :
RG58 or by Requests
Connector Type :
SMA Plug
Operation Temperature :
-20 ˚C ~ +60 ˚C
Description

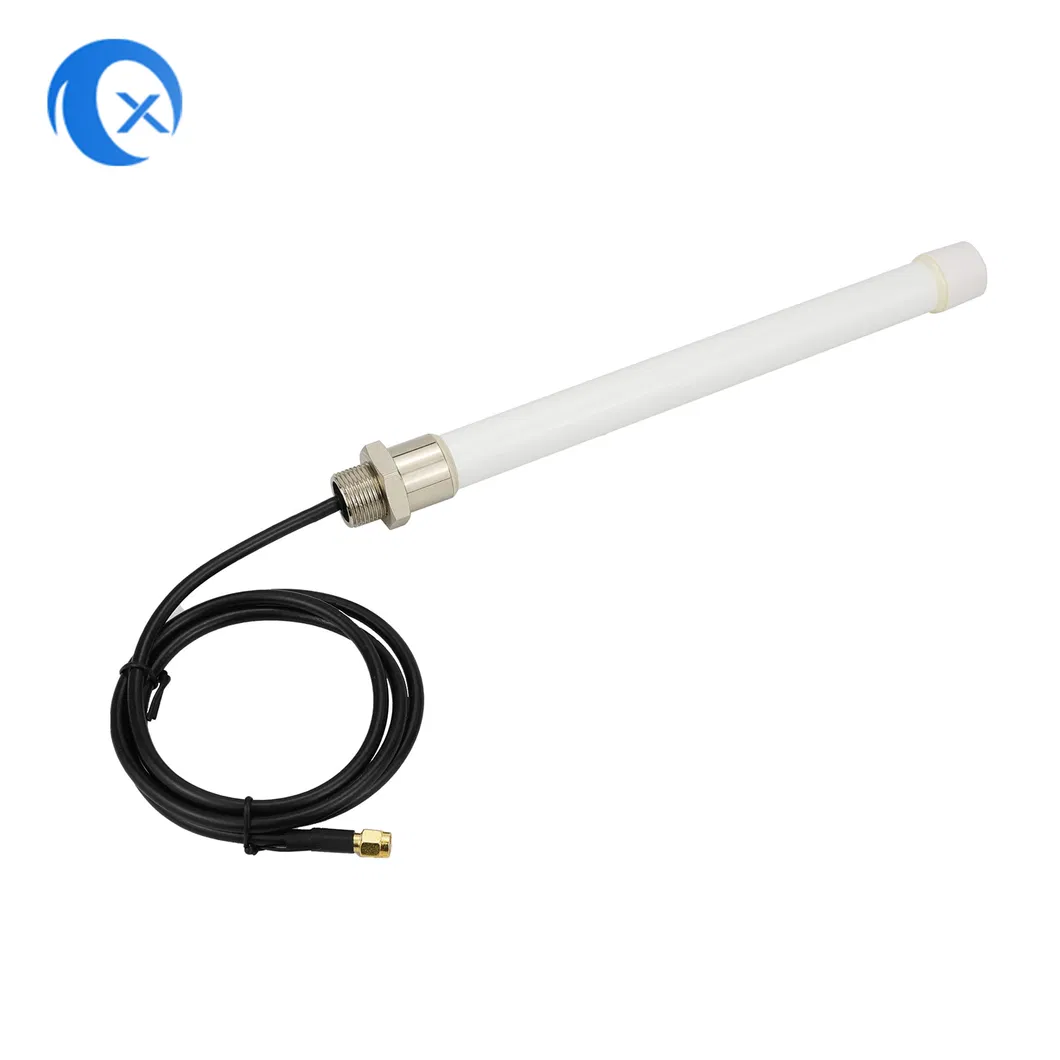

Customized GSM 3G 4G 5G Omni Directional Fiberglass Antenna
Customized GSM 3G 4G 5G RF Frequency Omni Directional Fiberglass antenna
Customized GSM 3G 4G 5g Omni Directional Fiberglass Antenna Customized GSM 3G 4G 5g Omni Directional Fiberglass Antenna Customized GSM 3G 4G 5g Omni Directional Fiberglass Antenna Customized GSM 3G 4G 5g Omni Directional Fiberglass Antenna Customized GSM 3G 4G 5g Omni Directional Fiberglass Antenna
Electrical Characteristics
Frequency 3G 4G 5G
V.S.W.R <= 2
Antenna Gain 5 dBi
Polarization Linear
Impedance 50 Ohm
Material & Mechanical Characteristics
Material of Radiator Brass
Material of Plastic Fiberglass

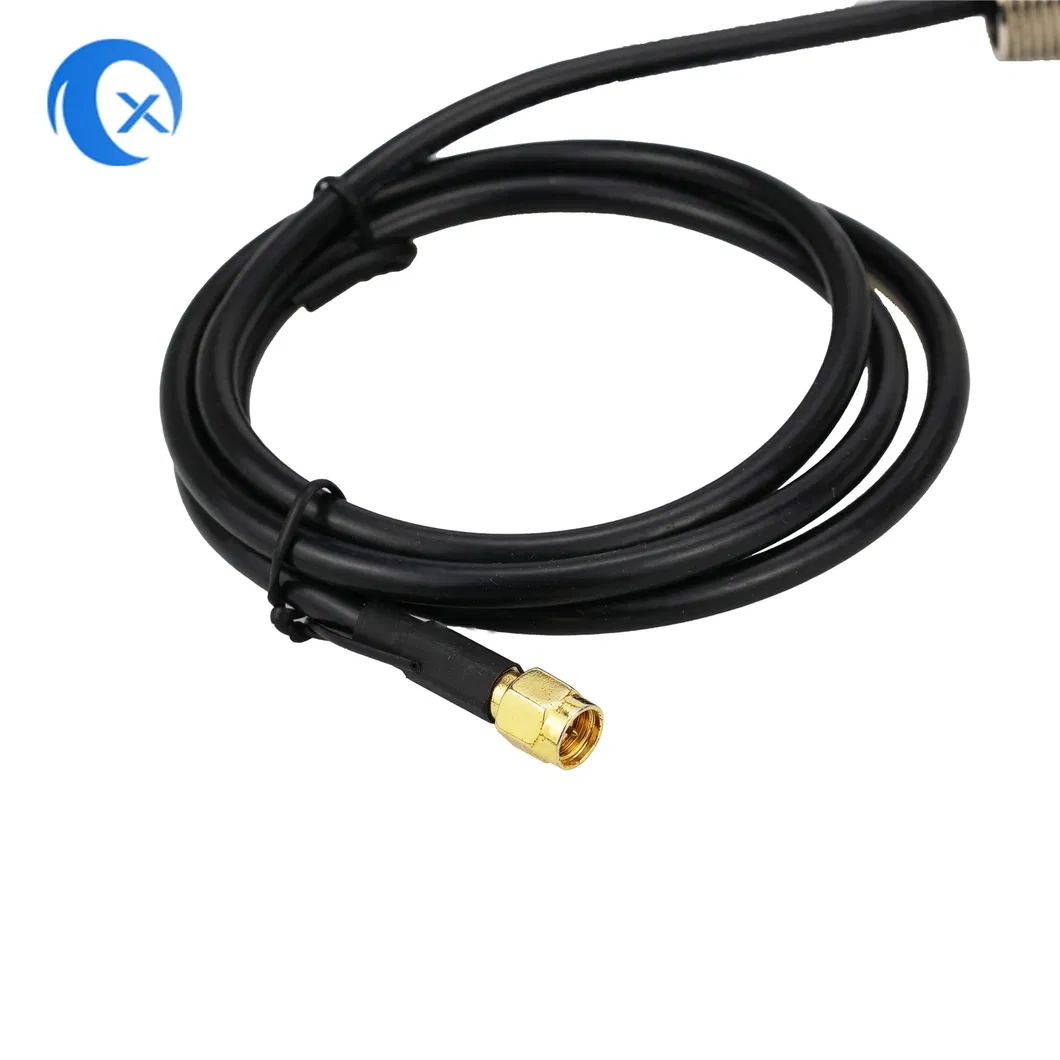

Cable Type RG58 or by Requests
Connector Type SMA Plug
Environmental Specifications
Operation Temperature -20°C ~ +60°C
Storage Temperature -40°C ~ +80°C
