High Resolution Two Color Cross LED Pharmacy Sign Photo Media Compatible

Specifications

Place of Origin :

Fujian, China

Model Number :

SC 800x800-P10(Two sides)

Brand Name :

Genilight

MOQ :

2 pieces

Price :

$1,600.00/pieces 2-9 pieces

Payment Terms :

T/T, MoneyGram, PayPal, Western Union

Application :

Outdoor

Color :

RGB, Red,Blue,Green,Yellow,White etc..

Supplier Type :

Original manufacturer, ODM, OEM

use :

advertising publish, retail store, shopping mall, education

Screen Dimension :

520*520mm,800*800mm, 1000*1000mm, 1024*1024mm etc..

Tube Chip Color :

Single color, two color or full color

Pixels :

10mm, 16mm, 20mm,25mm

Pixel Configuration :

IP Grade :

IP65

operation :

Easy for installation and operation

display :

message, time, temperature, text, video

Description

Product Description

China Manufacturer Cheap Led Green Cross sign

Specifications

1. LED chip size			red:9mil,green/blue/amber/white:12mil
2. View Angle			H:120°(+60/-60),V:60°(+30/-30)
3. Viewing Distance			≥20m
4. Input voltage (AC)			110V~240V
5. Input power frequency (Hz)			50HZ~60HZ
6. Control Mode			Asynchronous
7. Drive Mode			1/4 scan constant current (1200×1200 is static scan)
8. Communication Mode			RS232,RF Wireless, WIFI(Optional)---The default configuration(RF Wireless)
9. Control distance			RS232:<100m,RF Wireless:<800m
10. Display content			Animation/Graphics/Word/Time/Temperature
11. Languages			English, French, Spanish ,Greek,Russian and Italian
12. Operating system			Windows (2000/XP/Vista/Win7)
13. Frame Material			Steel(cold rolled iron) frame.500500,800800,1000*1000 can do aluminum frame
14. Working Temperature(°C)			-45~+65(for working)
15. Working Humidity			10%~95%RH
16. Life span			100,000 hours
17.Certificate			CE-EMC,CE-LVD,ROHS

520*520mm led cross sign(two side)

P10-SC-520*520 (single color)

1. Pixel Pitch:10mm
2. Pixel configuration: one led (red/green/blue)
3. Display color: pure green,pure red,green with two lines blue fringe,red with two lines green fringe…
4. Display Pixels:2560 dots(for two sides, one side is 1280)
5. Brightness: 6000CD
6. IP grade:IP65
7. MAX Power Consumption: 115W
8. Cabinet Size(mm): 890*540*100
9. Packing Meas.(mm): 950*610*240
10. Net Weight(kg):15
11. Gross Weight(kg):28

P10-TC-520*520 (two color)

1. Pixel Pitch:10mm
2. Pixel configuration: 1R1G or 1G1B or 1R1B
3. Display color: pure green,pure red,green with two lines blue fringe,red with two lines green fringe…
4. Display Pixels:2560 dots(for two sides, one side is 1280)
5. Brightness: 6000CD
6. IP grade:IP65
7. MAX Power Consumption: 200W
8. Cabinet Size(mm): 890*540*100
9. Packing Meas.(mm): 950*610*240
10. Net Weight(kg):15
11. Gross Weight(kg):28

P10-FC-520*520 (full color)

1. Pixel Pitch:10mm
2. Pixel configuration: 1R1G1B
3. Display color: pure green,pure red,green with two lines blue fringe,red with two lines green fringe…
4. Display Pixels:2560 dots(for two sides, one side is 1280)
5. Brightness: 6000CD
6. IP grade:IP65
7. MAX Power Consumption:300W
8. Cabinet Size(mm): 890*540*100
9. Packing Meas.(mm): 950*610*240
10. Net Weight(kg):15
11. Gross Weight(kg):28

800*800mm led cross sign(two side)

P16-SC-800*800 (single color)
1. Pixel Pitch:16mm
2. Pixel configuration: one led (red/green/blue)
3. Display color: pure green,pure red,green with two lines blue fringe,red with two lines green fringe…
4. Display Pixels:2560 dots(for two sides, one side is 1280)
5. Brightness: 6000CD
6. IP grade:IP65

7. MAX Power Consumption: 145W
8. Cabinet Size(mm): 1176×820×100
9. Packing Meas.(mm): 1250×890×240
10. Net Weight(kg):26
11. Gross Weight(kg):43

P16-TC-800*800(two color)
1. Pixel Pitch: 16mm
2. Pixel configuration: three leds (2R1G/2R1B/1B1G)
3. Display color: red,green,yellow or green,blue,cyan
4. Display Pixels: 2560 dots(for two sides, one side is 1280)
5. Brightness: 6500CD
6. IP grade: IP65
7. MAX Power Consumption: 200W
8. Cabinet Size(mm): 1176×820×100
9. Packing Meas.(mm): 1250×890×240
10. Net Weight(kg): 27
11. Gross Weight (kg): 43

P16-TC-800*800(full color)
1. Pixel Pitch: 16mm
2. Pixel configuration: three leds (2R1G/2R1B/1B1G)
3. Display color: red,green,yellow or green,blue,cyan
4. Display Pixels: 2560 dots(for two sides, one side is 1280)
5. Brightness: 6500CD
6. IP grade: IP65
7. MAX Power Consumption: 200W
8. Cabinet Size(mm): 1176×820×100
9. Packing Meas.(mm): 1250×890×240
10. Net Weight(kg): 27
11. Gross Weight (kg): 43

1000*1000mm led cross sign(two side)

P20-SC-1000*1000

1. Pixel Pitch: 20mm
2. Pixel configuration: one led (red/green/blue)
3. Display color: pure green,pure red,green with two lines blue fringe,red with two lines green fringe…
4. Display Pixels: 2560 dots (for two sides, one side is 1280)
5. Brightness: 5500CD
6. IP grade: IP65
7. MAX Power Consumption: 145W
8. Cabinet Size(mm): 1368×1010×100
9. Packing Meas.(mm): 1440×1070×240
10. Net Weight(kg): 38
11. Gross Weight(kg): 60

P20-TC-1000*1000

1. Pixel Pitch: 20mm
2. Pixel configuration: three leds (2R1G/2R1B/1B1G)
3. Display color: red,green,yellow or green,blue,cyan
4. Display Pixels: 2560 dots(for two sides, one side is 1280)
5. Brightness: 6000CD
6. IP grade: IP65
7. MAX Power Consumption: 200W
8. Cabinet Size(mm): 1368×1010×100
9. Packing Meas.(mm): 1440×1070×240
10. Net Weight(kg): 38
11. Gross Weight (kg): 60

P20-FC-1000*1000

1. Pixel Pitch: 20mm
2. Pixel configuration: 1R1G1B
3. Display color: red,green,yellow or green,blue,cyan
4. Display Pixels: 2560 dots(for two sides, one side is 1280)
5. Brightness: 6000CD
6. IP grade: IP65
7. MAX Power Consumption: 200W
8. Cabinet Size(mm): 1368×1010×100
9. Packing Meas.(mm): 1440×1070×240
10. Net Weight(kg): 38
11. Gross Weight (kg): 60

10024*1024mm led cross sign(two side)

P16-SC-1024*1024

1. Pixel Pitch: 16mm
2.Pixel configuration: one led (red/green/blue)
3.Display color: pure green,pure red,green with eight lines blue fringe,red with eight lines green fringe…
4.Display Pixels: 6144 dots(for two sides, one side is 3072)
5.Brightness: 6000CD
6.IP grade: IP65
7.MAX Power Consumption: 273W
8.Cabinet Size(mm): 1432×1076×100
9.Packing Meas.(mm): 1520×1170×240
10.Net Weight(kg): 48
11. Gross Weight (kg): 85

P16-TC-1024*1024

1. Pixel Pitch: 16mm
2.Pixel configuration: (2R1G/2R1B/1B1G)
3.Display color: pure green,pure red,green with eight lines blue fringe,red with eight lines green fringe…
4.Display Pixels: 6144 dots(for two sides, one side is 3072)
5.Brightness: 6000CD
6.IP grade: IP65
7.MAX Power Consumption: 545W
8.Cabinet Size(mm): 1432×1076×100
9.Packing Meas.(mm): 1500×1130×240
10.Net Weight(kg): 48
11. Gross Weight (kg): 85

P16-FC-1024*1024

1. Pixel Pitch: 16mm
2.Pixel configuration: 1R1G1B
3.Display color: pure green,pure red,green with eight lines blue fringe,red with eight lines green fringe…
4.Display Pixels: 6144 dots(for two sides, one side is 3072)
5.Brightness: 6000CD
6.IP grade: IP65
7.MAX Power Consumption: 720W
8.Cabinet Size(mm): 1432×1076×100
9.Packing Meas.(mm): 1500×1130×240
10.Net Weight(kg): 48
11. Gross Weight (kg): 85

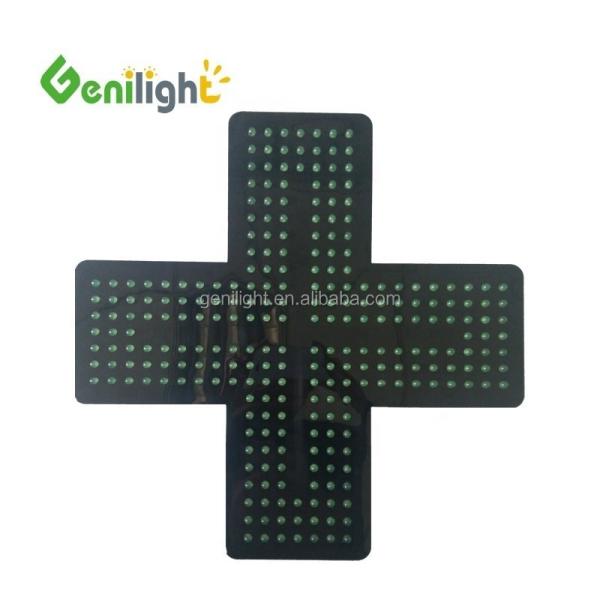

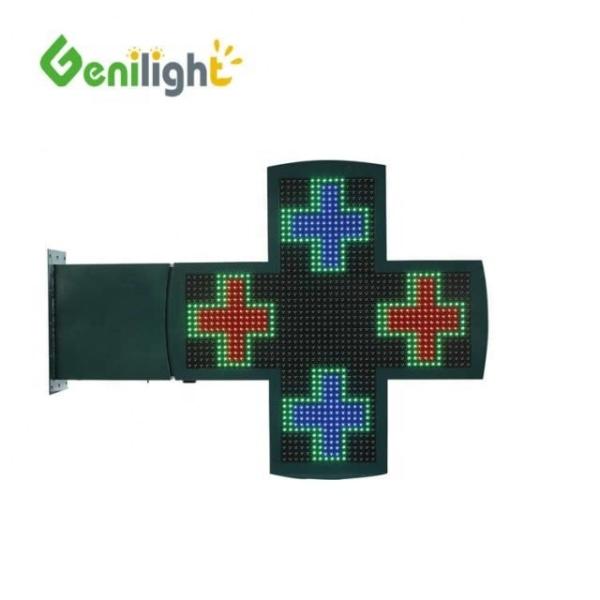

Detailed Images

Packing & Delivery

Packaging Details: carton box, wooden box or as your request.
Delivery Time: 15days, please check with us
