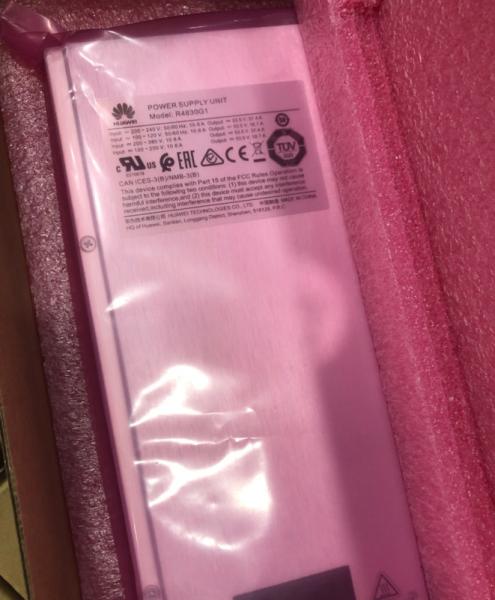

HuaWei ETP4890 Rectifier Power Supply R4830G R4830G1 48V 200A Module
HuaWei ETP4890 Rectifier Power Supply R4830G R4830G1 48V 200A Module
HuaWei ETP4890 Rectifier Power Supply R4830G R4830G1 48V 200A Module
HuaWei ETP4890 Rectifier Power Supply R4830G R4830G1 48V 200A Module
Specifications
Brand Name :
HuaWei
Model Number :
R4830G R4830G1
Certification :
FCC,CCC,CE
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Height×Width×Depth :
40.8mm×95.5mm×208mm
Weight :
≤1.5kg
Working voltage range :
85V AC~300V AC or 85V DC~420V DC
AC input frequency :
45Hz~66Hz
Altitude :
≤5000m (Note: 2000m~5000m, the temperature decreases by 1°C for every 200m increase in altitude)
Warranty :
1 Year
Description

HuaWei ETP4890 Rectifier Power Supply R4830G R4830G1 48V 200A Module

HuaWei ETP4890 rectifier power supply R4830G R4830G1 embedded 1U communication power supply module 48V 200A

Overviews

R4830G 30A rectifier.

* Apply to ETP4890-A2.

* Wide range of AC input voltage from 85V to 300V.

* Maximum output power: 1600W

* Wide operation temperature range of rectifier from -40℃ to 75℃.

* High rectifier efficiency over 96% helps to save energy.

R4830G1 is a high-power density digital rectifier module that supports 85V AC~300V AC or 85V DC~420V DC input, and 53.5V DC default output. It has the advantages of low noise, can be used in parallel, and perfect protection functions such as soft start. Using new power monitoring technology, real-time monitoring of rectifier module status and load, and background adjustment of output voltage can be realized

Tech Specs

Specification
Basic parameters

Efficiency point: ≥96%≥95% (230V AC, 30%~90% load)

Height×Width×Depth: 40.8mm×95.5mm×208mm; Weight: ≤1.5kg

Cooling method: built-in fan (fan has temperature control and speed regulation function)
Input characteristics

Working voltage range: 85V AC~300V AC or 85V DC~420V DC

AC input frequency: 45Hz~66Hz; rated value is 50Hz/60Hz

Input current: ≤13A power factor ≥0.99 (load ≥50%)

THD: ≤3% (230VAC, load ≥50%)
Input characteristics

Working voltage range: 85V AC~300V AC or 85V DC~420V DC

AC input frequency: 45Hz~66Hz; rated value is 50Hz/60Hz

Input current: ≤13A power factor ≥0.99 (load ≥50%)

THD: ≤3% (230VAC, load ≥50%)
Use environment

Working temperature: -40°C~+80°C;

Storage temperature: -40°C~+80°C;

Relative humidity: 5%~95% (non-condensing)

Altitude: ≤5000m (Note: 2000m~5000m, the temperature decreases by 1°C for every 200m increase in altitude)

HuaWei ETP4890 Rectifier Power Supply R4830G R4830G1 48V 200A Module
