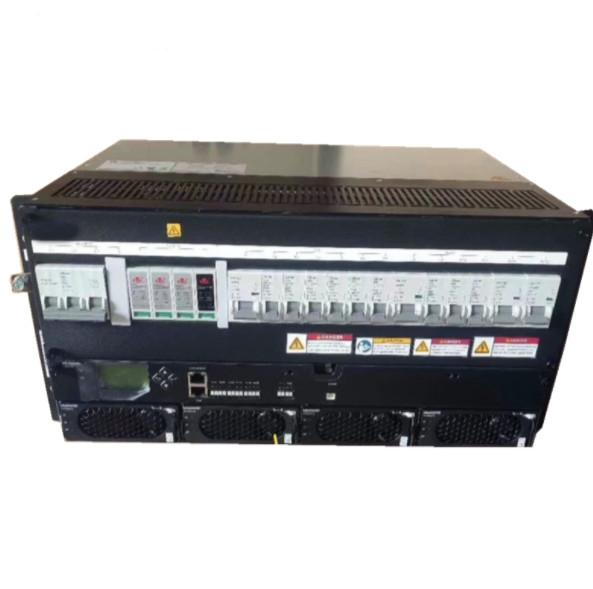

HuaWei ETP48200 C5B6 Embedded power supply system Without Power Supply
HuaWei ETP48200 C5B6 Embedded power supply system Without Power Supply
HuaWei ETP48200 C5B6 Embedded power supply system Without Power Supply
HuaWei ETP48200 C5B6 Embedded power supply system Without Power Supply
Specifications
Brand Name :
HuaWei
Model Number :
ETP48200-C5B6
Certification :
FCC,CCC,CE
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
50 Pack/Packs per Week
Packaging Details :
new in the huawei box
Product name :
ETP48200-C5B6
Input Voltage :
220-380V AC
Output Power :
12KW
Output Current: :
200A
Output Voltage: :
48V
Output Frequency :
50/60 Hz
Size(W × D × H) :
482.6 mm × 330 mm × 219.5 mm
Warranty :
1 Year
Description

HuaWei ETP48200-C5B6 embedded communication power system 5U height base station 48V200A Empty frame without power supply

Descriptions

ETP48200-C5B6 is an AC/DC 48V embedded power system that can be installed in standard 19 or 23 inch cabinet.,maximum match 4 pcs 48V 50A rectifier, max current 200A.

Each functional unit adopts standardized size design, supports hot swap, The system can adapt to a wide range of AC input, using intelligent battery management, remote monitoring and other functions.

Tech Specs

Type

ETP48200-C5B6

System

Size(W × D × H)

482.6 mm × 330 mm × 219.5 mm

Weight

≤ 20 kg(non-rectifier )

Cooling mode

Natural cooling

Installation mode

19 inch or 23 inch relay rack or embedded cabinet

Cabling mode

Top in Top out

Maintenance mode

Front maintenance

IP grade

IP20

AC distribution

Input mode

220/380 Vac 3 phase ,compatible 220 Vac single phase

Input voltage

85–300 Vac,Rated voltage:220 Vac

Frequency

45–66 Hz,Rated efficiency:50/60 Hz

Battery breakers

1 × 63 A/3P

SPD

20/40 kA,8/20 μs

AC output

-

DC distribution

Output voltage

42–58 Vdc,Rated:53.5 Vdc

Max capacity

12 kW

Battery breakers

2 × 125 A/1P

Load breakers

1 × 80 A/1P,6 × 32 A/1P

Batery breakers

1 × 80 A/1P,2 × 32 A/1P,1 × 10 A/1P

SPD

10/20 kA,8/20 μs

Rectifier

Type

R4850G2

Rated power

3000 W (176–300 Vac)

Dimension(W× D× H)

105 mm × 281 mm × 40.8 mm

Efficiency

> 96%

HuaWei ETP48200 C5B6 Embedded power supply system Without Power Supply

FAQ

1. what's the way to pay?
We support T/T, WESTERN UNION,Paypal
2. What's your shipping way?
Shopped by air sea express
3. What is the product used for packing?
We always use catron, Unless you have different packing need
