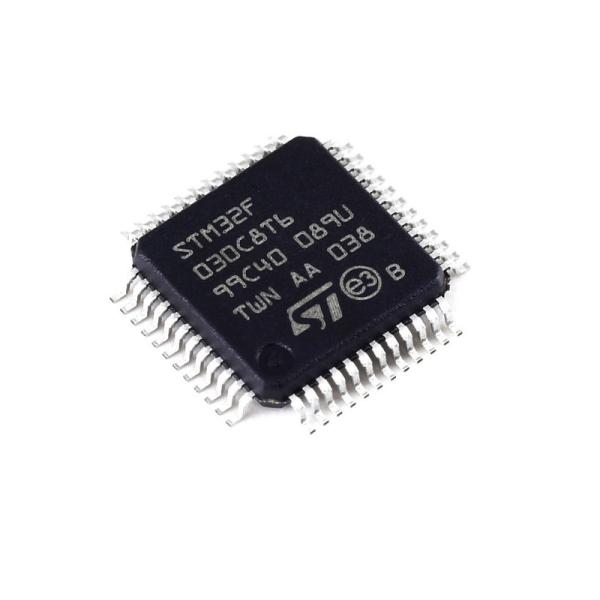

STM32F030C8T6 LQFP48 32Bit Switch Control Chip MCU
STM32F030C8T6 LQFP48 32Bit Switch Control Chip MCU
Specifications
Brand Name :
ST
Model Number :
GD32F103C8T6
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Brand name :
ST
Flash Size :
48MHz
Controller Series :
A/D 12x12b
Oscillator Type :
2.4V ~ 3.6V
Sample :
Support
Description :
IC MCU 32BIT 64KB FLASH 48LQFP STM32F030
Interface :
Internal
Peripherals :
32-Bit
Price :
Negotiable
Description

STM32F030C8T6 switch control chip LQFP48 ST STMicroelectronics IC chip 32-bit stand-alone MCU microcontroller original

Description:

The STM32F030C8T6 microcontroller is a 32-bit M0 series LQFP-48 microcontroller, a very cost-effective ARM microcontroller. It is widely used in the electric vehicle and home appliance industries. It is cracked for the STM32F030C8T6 microcontroller. The STM32F030X4/X6/X8/XC microcontrollers operate in a temperature range of -40 to +85°C, with a power supply voltage of 2.4 to 3.6V. A comprehensive set of power saving modes allows the design of low-power applications.

STM32F030x4/X6/X8/XC microcontrollers include four devices in different packages, ranging from 20-pin to 64-pin. Depending on the selected device, different peripheral devices are included. These features make STM32F030x4/X6/X8/XC microcontrollers suitable for various applications, such as application control and user interface, handheld devices, A/V receivers and digital TVs, PC peripherals, gaming and GPS platforms, industrial Applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms and HVAC.

Main features:

1. 16 to 256kb flash memory

2. 4 to 32k bytes of memory HW parity

3. Digital and I/o supply: VDD=2.4V to 3.6V

4. Analog supply: VDDA=VDDto3.6V

5. Power on/off reset (POR/PDR)

6. Low power consumption mode: sleep, stop standby

7. 4 to 32MHz crystal oscillator

8. Calibration of 32kHz oscillator RTC

9. Selection of internal 8MHzRCx6 phase-locked loop

10. Internal 40kHz RC oscillator

Detailed description:

EU RoHS Compliant
ECCN (US) 3A991.a.2
Part Status Active
HTS 8542.31.00.01
Family Name STM32F
Instruction Set Architecture RISC
Device Core ARM Cortex M0
Core Architecture ARM
Maximum CPU Frequency (MHz) 48
Maximum Clock Rate (MHz) 48
Data Bus Width (bit) 32
Program Memory Type Flash
Program Memory Size 64KB
RAM Size 8KB
Programmability Yes
Interface Type I2C/SPI/USART
Number of I/Os 39
No. of Timers 7
Number of ADCs Single
ADC Channels 12
ADC Resolution (bit) 12
USART 2
UART 0
USB 0
SPI 2
I2C 2
I2S 0
CAN 0
Ethernet 0
Watchdog 1
Parallel Master Port No
Real Time Clock Yes
Minimum Operating Supply Voltage (V) 2.4
Typical Operating Supply Voltage (V) 2.5|3.3
Maximum Operating Supply Voltage (V) 3.6
Maximum Power Dissipation (mW) 364
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Packaging Tray
CECC Qualified No
Standard Package Name QFP
Pin Count 48
Supplier Package LQFP
Mounting Surface Mount
Package Height 1.4
Package Length 7
Package Width 7
PCB changed 48
Lead Shape Gull-wing

Picture details:

STM32F030C8T6 LQFP48 32Bit Switch Control Chip MCUSTM32F030C8T6 LQFP48 32Bit Switch Control Chip MCU
