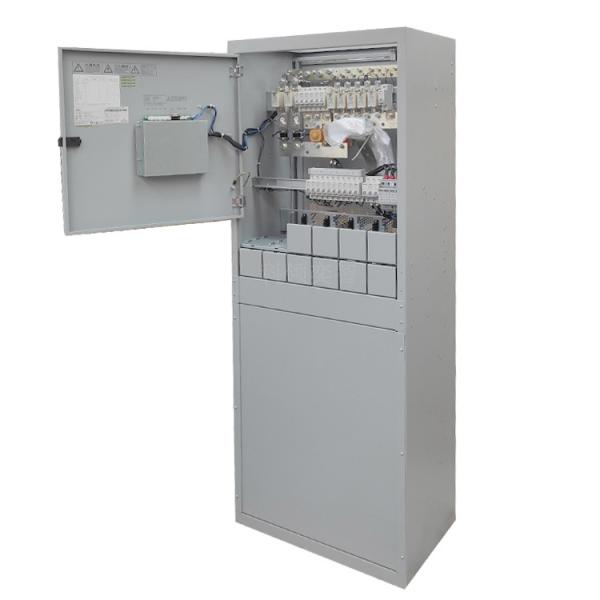

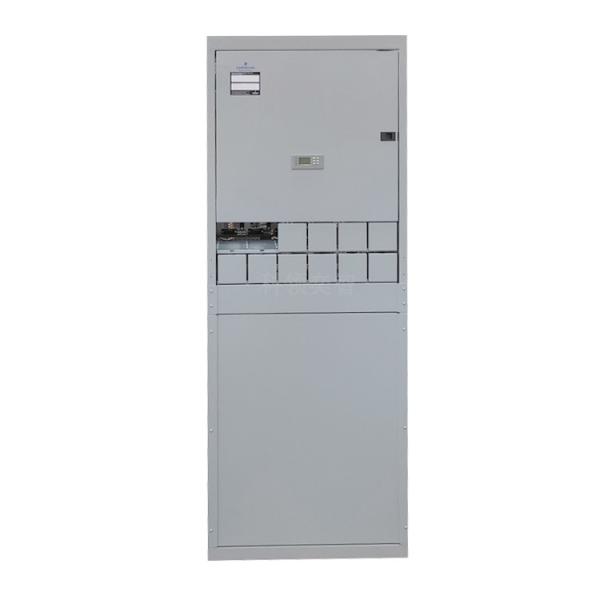

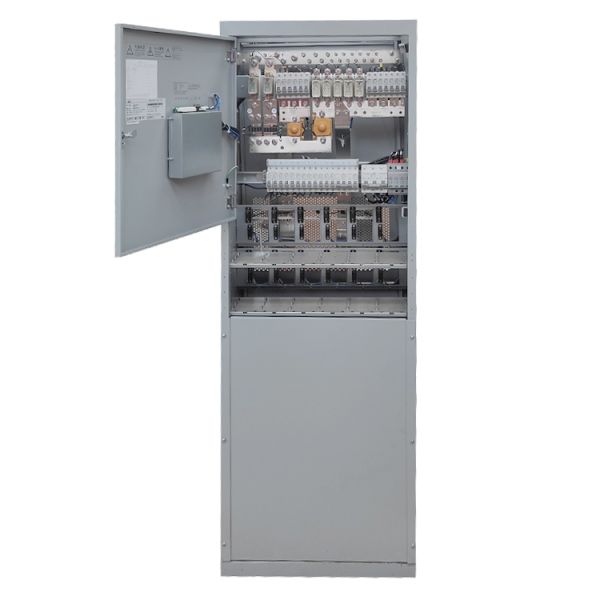

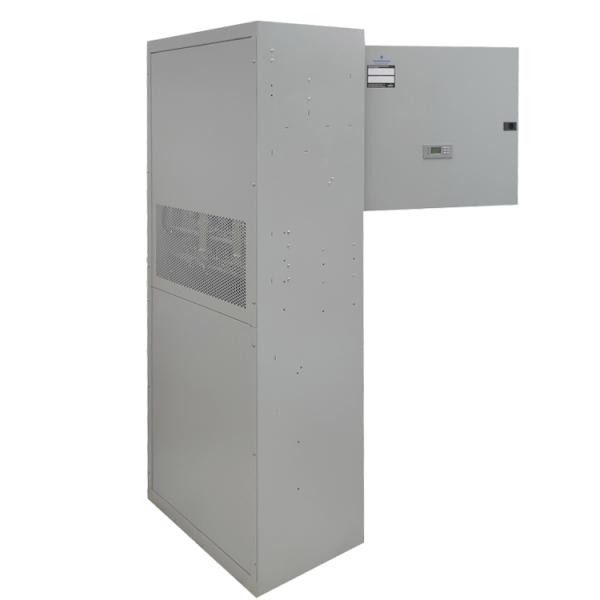

500W 300A Integrated Communication Cabinet Emerson PS48300-3B/1800
500W 300A Integrated Communication Cabinet Emerson PS48300-3B/1800
500W 300A Integrated Communication Cabinet Emerson PS48300-3B/1800
500W 300A Integrated Communication Cabinet Emerson PS48300-3B/1800
Specifications
Brand Name :
Emerson
Model Number :
PS48300-3B/1800
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100
Delivery Time :
5-8days
Packaging Details :
new in the box.
Output Power :
>500W
Input Voltage :
220VAC
Output Frequency :
50/60Hz
Application :
Network Power Supply
Working temperature :
-40℃~+70℃
Max output curreent :
300A
Output Voltage :
48V
Output voltage range :
-42~-58V
Certification :
CE
Warranty :
1 Year
Output Type :
Multiple
Description

Brand new original Emerson PS48300-3B/1800 indoor communication power supply cabinet integrated communication cabinet

System Features

  • Patented Rectifier Redundancy technology effectively reduces the overall TOC (total operation cost) of base station
  • Full front access for easy installation and maintenance
  • Wide input voltage range of 80 to 300 Vac
  • Rectifier with wide range of working temperature: -40°C ~70°C
  • Application of DSP control technologies effectively increases rectifier power density
  • Smart battery management effectively protects the battery
  • Lightning and surge protection at AC side, DC side and signal interfaces
  • Hot-swappable of rectifier and controller module, realizing quick and easy online maintenance
  • UL, CE and NEBS compatible, applicable for residential areas

System Model


2m-high cabinet has the following two models: PS48300/1800- -X8 X9 X10
1.6m-high cabinet has the following models: ƒPS48300/1800-X1

Applications

  • Power supply for NodeB/BTS
  • Small exchanges
  • Centralized indoor coverage
  • Transmission relay stations

Rectifier - R48-1800

  • CE and UL certified
  • Wide input voltage range: 80 ~300Vac
  • Input voltage frequency range: 45 ~65Hz
  • Wide operating temperature range: -40°C ~+70°C (derated output at +45°C above)
  • Relative humidity: ≤90%RH
  • Altitude: ≤2000m
  • Efficiency: 91%
  • Power factor: 0.99
  • Weight: 2.0 kg

Controller module – M500D

  • Maximum 48 modules can be managed through CAN
  • Smart battery management
  • PLC available
  • Alarm and maximum 200 alarm messages can be recorded
  • 8 groups of alarm dry contact output
  • RS232/Modem communication available
  • Multi-language operational interface

Specifications:

Mechanical Parameter
Structure
19 inches(W), 4U(H)
Dimensions (W x D x H)(mm)
483 x 390 x 178
Weight (kg)
≤25 (including rectififier and controller)

500W 300A Integrated Communication Cabinet Emerson PS48300-3B/1800500W 300A Integrated Communication Cabinet Emerson PS48300-3B/1800
