NetSure531 C21 48V 60A RS232 500W Rectifier Modules
NetSure531 C21 48V 60A RS232 500W Rectifier Modules
NetSure531 C21 48V 60A RS232 500W Rectifier Modules
NetSure531 C21 48V 60A RS232 500W Rectifier Modules
NetSure531 C21 48V 60A RS232 500W Rectifier Modules
NetSure531 C21 48V 60A RS232 500W Rectifier Modules
Specifications
Brand Name :
Emerson
Model Number :
NetSure531 C21
Place of Origin :
China,guangdong
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100
Delivery Time :
5-8days
Packaging Details :
new in the box.
Output Power :
>500W
Input Voltage :
85-300VAC
Output Frequency :
50/60Hz
Working temperature :
-40℃~+70℃
Max output curreent :
60A
Output Voltage :
48V
Output voltage range :
-42~-58V
Certification :
CE
Warranty :
1 Year
Output Type :
Multiple
Description

Emerson Rectifier Modules NetSure531 C21 48V 60A wall-mounted power supply

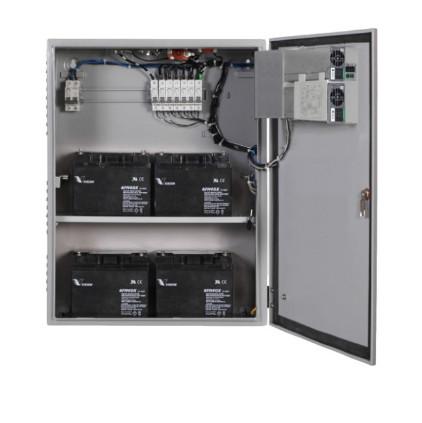

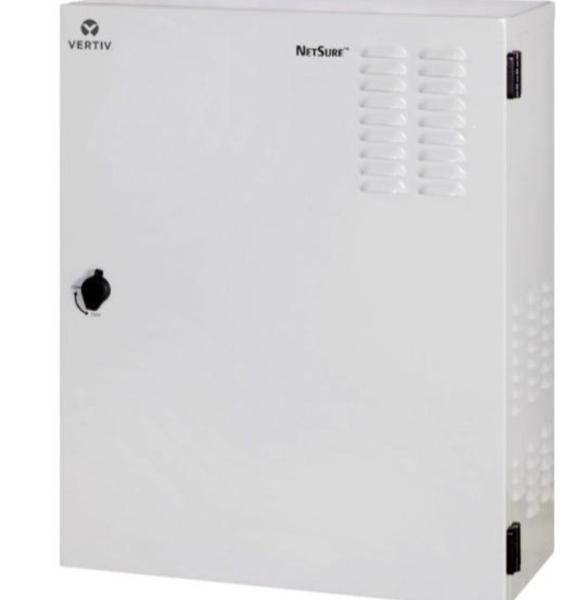

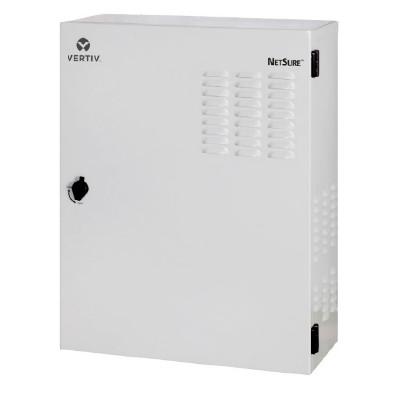

The NetSure 531 C21 DC Power Distribution Cabinet is a new generation of highly reliable power system designed by Emerson. The system can be smoothly expanded up to 60A through parallel connection.

It is applicable for following applications:

1.Telecom Base Station;
2.3G 4G 5G Indoor ;
3.Integrated access point
4.RRU independent power supply

5.Micro / Remote Base Station

Key Feature:

1.Wide voltage input range 80 ~ 300Vac, strong adaptability to power grid and oil engine

2.Ultra-wide operating temperature range -40 ~ + 65 ℃ (derating above 45 ℃), suitable environment
Strong ability to adapt to various geographical areas.

3.Comprehensive lightning protection design on AC side, DC side and signal side to improve system lightning protection ability

4.With Walk-in function, avoid impact on the front stage transformer and oil engine when starting.

5.With RS232 / RS485 interface, network port (optional), intelligent dry contact, etc.Communication interface, flexible networking

6.The rectifier module has an independent ID identification function to facilitate user asset management

7.Perfect battery management function, effectively prolong battery life

Application:

1.3G and LTE indoor cove rage power supply

2.FTTx access power supply

3.Transmission relay station, microwave satellite communication station

4.Green and energy-saving stations

Specifications:

Mechanical Parameter
Structure
19 inches(W), 4U(H)
Dimensions (W x D x H)(mm)
550mm*250mm*700mm
Weight (kg)
≤30kg (including rectififier and controller)

NetSure531 C21 48V 60A RS232 500W Rectifier ModulesNetSure531 C21 48V 60A RS232 500W Rectifier Modules
