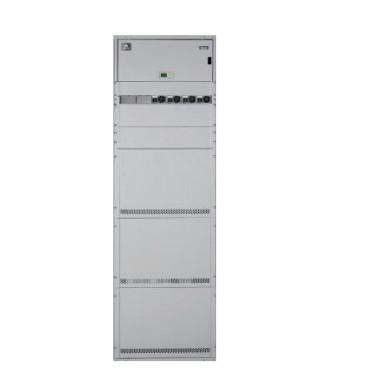

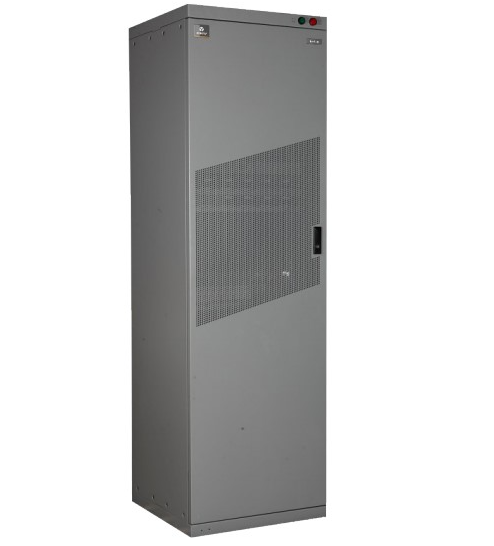

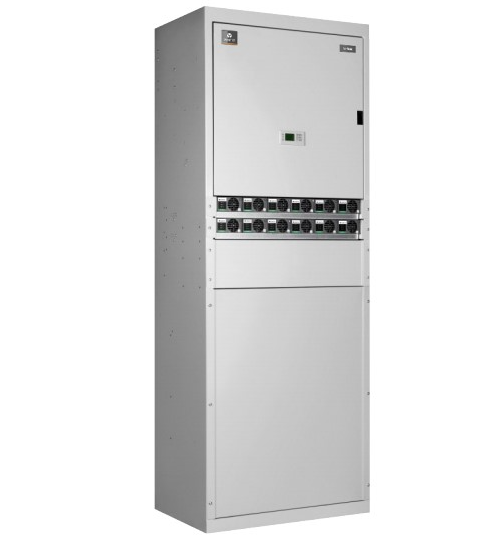

Emerson NetSure 531 C42 48V 120A 500W Power Supply Cabinet
Emerson NetSure 531 C42 48V 120A 500W Power Supply Cabinet
Specifications
Brand Name :
Emerson
Model Number :
NetSure 531 C42
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100
Delivery Time :
5-8days
Packaging Details :
new in the box.
Output Power :
>500W
Input Voltage :
85-300VAC
Output Frequency :
50/60Hz
Application :
Network Power Supply
Working temperature :
-40℃~+70℃
Max output curreent :
120A
Output Voltage :
48V
Output voltage range :
-42~-58V
Certification :
CE
Warranty :
1 Year
Output Type :
Multiple
Description

Emerson NetSure 531 C42 48V120A combined communication power supply switching power supply cabinet

NetSure 531 C42 wall-mounted power supply system with high-frequency switching rectifier is a kind of communication power supply system of high reliability, high power density, high performance and full digitalization designed by Vertiv based on its years of experiences in development and running to meet customer needs.

The system includes AC/ DC distribution unit, rectifier, controller and SPD unit.

It isfront operated and top/bottom cabled which is easy and convenient to install and maintain.

Features:

1.Front operation, which is convenient to install and maintain.

2.System cabling : up inlet, up outlet ; lower inlet, lower outlet.

3.Small size, light weight. Wallmounted installation mode minimizes the cost.

4.High efficiency rectifier efficiency up to 96%, system efficiency up to 95%.

5.Wide input voltage range (85~300Vac), strong ability in adapting power grid.

6.High-efficiency rectifier working temperature range: -40~+80 (-40~+55 , full load output; >55, derating output).

7. Energy-saving sleep mode function, which reduces electricity consumption.

8.Hot pluggable, easy and fast online maintenance.

9.Perfect battery management, which prolongs battery life.

10.Multiple communication ports (such as RS232 and dry contacts), which enables flexible networking and remote monitoring

Application:

1.3G and LTE indoor cove rage power supply

2.FTTx access power supply

3.Transmission relay station, microwave satellite communication station

4.Green and energy-saving stations

Specifications:

Mechanical Parameter
Structure
19 inches(W), 4U(H)
Dimensions (W x D x H)(mm)
483 x 390 x 178
Weight (kg)
≤25 (including rectififier and controller)
