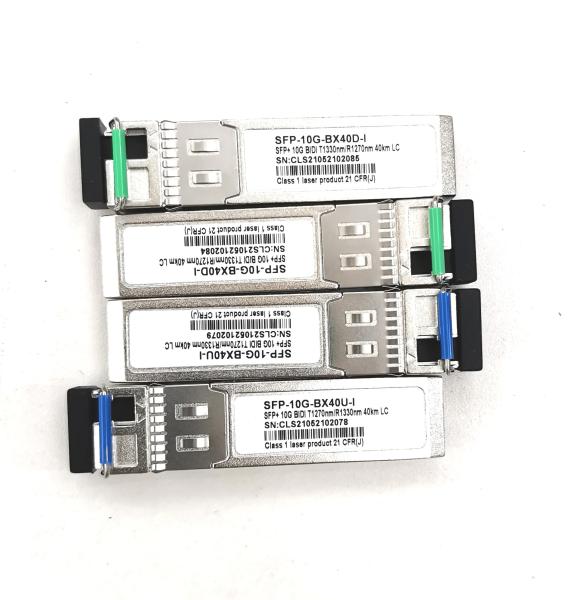

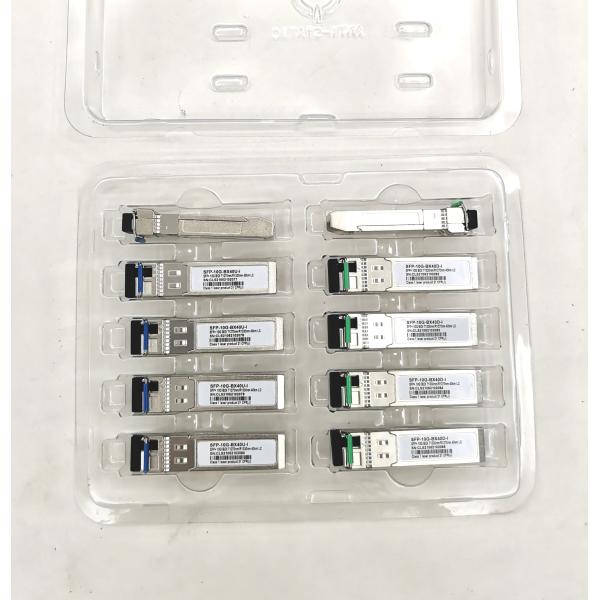

10 Gigabit Fiber SFP Modules HuaWei H3C SFP-10G-BX40U-I SFP-10G-BX40D-I
10 Gigabit Fiber SFP Modules HuaWei H3C SFP-10G-BX40U-I SFP-10G-BX40D-I
10 Gigabit Fiber SFP Modules HuaWei H3C SFP-10G-BX40U-I SFP-10G-BX40D-I
10 Gigabit Fiber SFP Modules HuaWei H3C SFP-10G-BX40U-I SFP-10G-BX40D-I
Specifications
Brand Name :
HuaWei
Model Number :
SFP-10G-BX40U-I/SFP-10G-BX40D-I
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
10000
Delivery Time :
3-5DAYS
Packaging Details :
NEW IN THE BOX.
Model :
SFP-10G-BX40U-I/SFP-10G-BX40D-I
Form Factor :
SFP+
Connector :
LC simplex
Max Cable Distance :
40km
Receiver Sensitivity :
<-15dBm
Media :
SMF
Commercial Temperature Range :
Temperature Range 0 to 70°C (32 to 158°F)
Warranty :
1 Year
Description

10 Gigabit Fiber SFP Modules HuaWei H3C SFP-10G-BX40U-I SFP-10G-BX40D-I

Compatible module HuaWei H3C SFP-10G-BX40U-I/SFP-10G-BX40D-I 10 Gigabit single-mode optical fiber module

Decription of SFP-10G-BX40U-I/SFP-10G-BX40D-I

For CWDM 10G SFP+ and DWDM SFP+ optical modules, the wavelength increases with the part number. For example, the part number of CWDM-SFP10G-1470 is CWDM SFP+, and its working wavelength is 1470nm. If you want a CWDM SFP+ optical module operating at a wavelength of 1550nm, then the product number of this CWDM optical module should be CWDM-SFP10G-1550. Since the wavelength of all DWDM SFP+ optical modules is about 1500nm, in the product number of Cisco DWDM SFP+ optical modules, the first two numbers 1 and 5 must be eliminated. For example, the working wavelength of the DWDM SFP+ standard optical module DWDM-SFP10G-61.41 is 1561.41nm.

Specifications of SFP-10G-BX40U-I and SFP-BX40D-I

SFP-10G-BX40U Compatible 10GBASE-BX40-U SFP+ Transceiver Module (SMF, 1270nm-TX/1330nm-RX, 40km, LC,DOM)

Cisco Compatible SFP-10G-BX40U Vendor Name H3C,HW
Form Factor SFP+ Max Data Rate 10.3125Gbps
Wavelength 1270nm-TX/1330nm-RX Max Cable Distance 40km
Connector LC simplex Optical Components DFB BiDi
Media SMF DOM Support Yes
TX Power 1~5dBm Receiver Sensitivity <-15dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) Protocols SFP+ MSA Compliant, CPRI, eCPRI

Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator according to the table.

Distance ≤ 5km ≤ 10km ≤ 15km
Attenuator 7dB 5dB 3dB

SFP-10G-BX40D Compatible 10GBASE-BX40-D SFP+ Transceiver Module (SMF, 1330nm-TX/1270nm-RX, 40km, LC, DOM)

Cisco Compatible SFP-10G-BX40D Vendor Name HW,H3C
Form Factor SFP+ Max Data Rate 10.3125Gbps
Wavelength 1330nm-TX/1270nm-RX Max Cable Distance 40km
Connector LC simplex Optical Components DFB BiDi
Media SMF DOM Support Yes
TX Power 1~5dBm Receiver Sensitivity <-15dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) Protocols SFP+ MSA Compliant, CPRI, eCPRI

Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator according to the table.

Distance ≤ 5km ≤ 10km ≤ 15km
Attenuator 7dB 5dB 3dB

10 Gigabit Fiber SFP Modules HuaWei H3C SFP-10G-BX40U-I SFP-10G-BX40D-I

FAQ

1. what's the way to pay?

We support T/T, WESTERN UNION,Paypal

2.What's your shipping way?

Shopped by air sea express

3.What is the product used for packing?

We always use catron, Unless you have different packing needs

With many years of export experience, excellent quality, advanced services and competitive prices, it has won the trust and support of many customers. If you have any questions, please feel free to contact us, we will provide you with quality service.

10 Gigabit Fiber SFP Modules HuaWei H3C SFP-10G-BX40U-I SFP-10G-BX40D-I
