Specifications
Place of Origin :
China, Guangdong
Brand Name :
DELTA, Delta
Model Number :
ESR-48/56BC
MOQ :
Negotiable
Price :
Negotiable
Input Voltage :
200-240V
Output Voltage :
54V, -40 to -59 V DC
Output Current :
28.9A
Product Name :
ESR-48/56BC
Power Factor :
0.99
Type :
Rectifier Module
Efficiency :
>=91%
Output Power :
2880W
Single package size  :
56X18X35 cm
Single gross weight :
7.000 kg
Description

DELTA Network Power Supply rectifier 48V-54V module power ESR-48/56BC DPR48/50-G-DGC

Descriptions

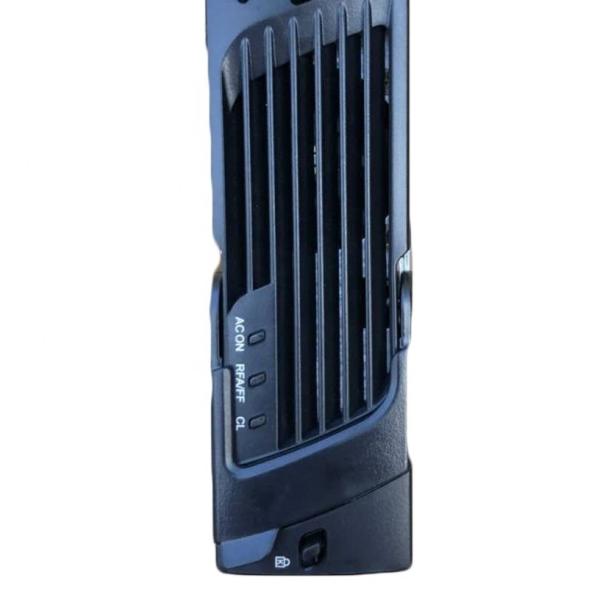

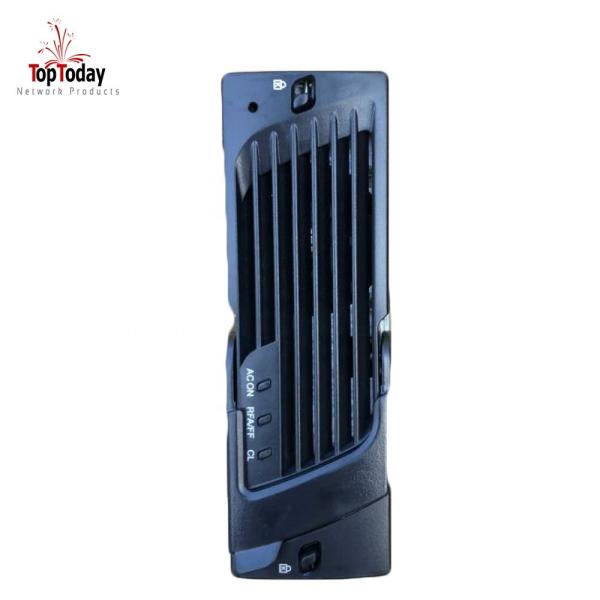

The rectifier ESR-48/56B C is a single phase, hot-pluggable, fan-cooled, high efficiency rectifier. The outstanding power density of this product offers the optimum 1U shelf solutions for easy integration into power systems. The constant output power characteristic supplies the specified power over the full output voltage range. The benefit is an optimised modular system design (fewer number of modules).These performances as well as the extended temperature range and wide input voltage range are the key factors of the success of this rectifier and it offers a cost effective and reliable solution. The typical applications for this rectifier are both in indoor and outdoor environments, which is a perfect solution for wireless base stations, core network, telecommunication & data networks and central offices.

Features:

* 48V/50A rectifier, maximum 2880W nominal output

* Single phase input drawing sinusoidal current
* Constant power output characteristics
* Maximum shelf depth 304 mm / 12 inch (overall)
* High efficiency ≥ 96%
* Wide input voltage range: 90 - 300 V
* Power factor correction
* Operating temperature range up to 75°C
* Intelligent micro-processor controlled
* Fan cooled with fan speed control
* -40C Start up allowable
* Compact and light weight, weight≈1.8Kg
* 3 modules per 1U 19-inch shelf or 4 modules per 1U 23-inch shelf

* Hot swappable, no system shutdown for maintenance

Applications:
• Indoor and outdoor
• Medium to large power systems
• Telecom, wireless, datacom, enterprise

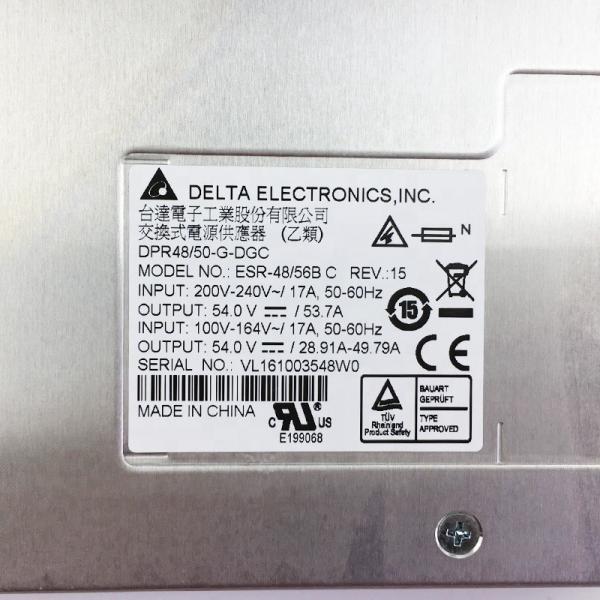

Specifications

Model ESR-48/56BC
AC input 200 - 240V ~ 17A 50/60HZ
AC Input 100 - 164V ~ 17A 50/60HZ
DC output 54V 53.7A
DC Output 54V 28.91-49.79A
Efficiency 96%
Dimensions (H*W*D) 40*125*260mm
Product Size 110*195*340mm
Weight < 2.4kg
Operation temperature -33 to 55°C
Storage temperature -40 to 70°C
Altitude < 3000m
Equalizing Charging Temp.Coefficient built-in fan, forced convection

DELTA Network Power Supply rectifier 48V-54V module power ESR-48/56BC DPR48/50-G-DGC

Our service

1. One-to-one "heart-to-heart service". The sales representative only serves five customers.

We look at providing you with continuous long-term service, but not just one or two cooperation.

2. Warranty. 1 year

3. Perfect after-sales service.

Specify the phone number 24 hours a day. Mailbox and manager.

4. Quality assurance. 100% new material production, 100% reliable quality.

With many years of export experience, excellent quality, advanced services and competitive prices, it has won the trust and support of many customers. If you have any questions, please feel free to contact us, we will provide you with quality service.
