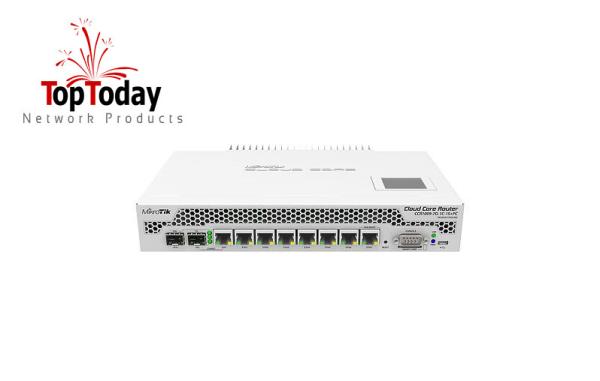

7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 1xSFP+ cage, 9 cores x 1GHz CPU, 2GB RAM, LCD panel, passive cooling desktop enclosure, SmartCard slot, RouterOS L6, PSU
Product code | CCR1009-7G-1C-1S+PC |
CPU nominal frequency | TILE-Gx9, 9 cores, 1 GHz |
Size of RAM | 2GB |
Storage type | NAND |
Storage size | 128 MB |
10/100/1000 Ethernet ports | 7 |
Number of USB ports | 1 |

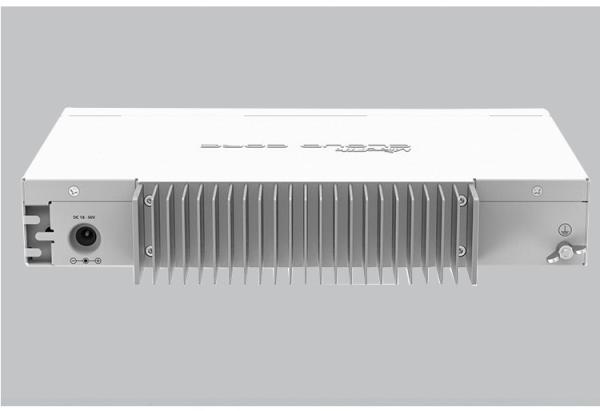

Power jack | 1 |
PoE in | Yes |
Supported input voltage | 18V - 56V |
Voltage monitor | Yes |
PCB temperature monitor | Yes |
CPU temperature monitor | Yes |
LCD | Yes |
Ethernet/SFP combo port | 1 |
SFP+ ports | 1 |
USB slot type | microUSB type AB |
Smart card | Yes |
Storage expansion | microSD |
Serial port | RS232 |
Operating system | RouterOS, level 6 license |
Max Power consumption | 33W |
Dimensions | 272x190x47mm |
Weight |
Package: 1.63 Kg; Unit: 916g
|
