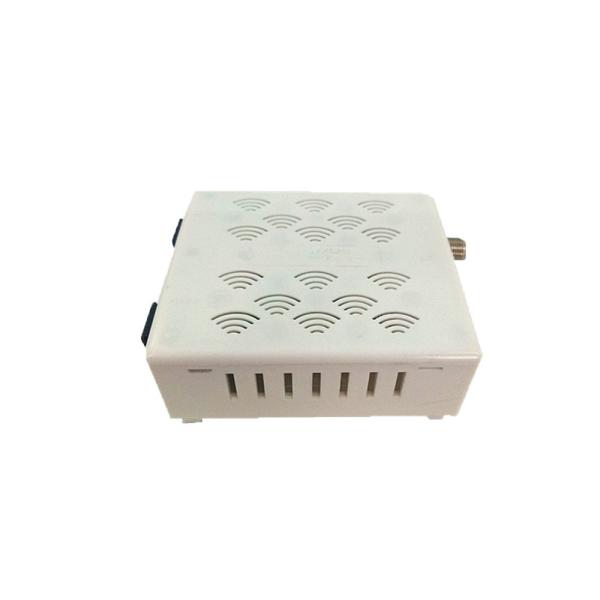

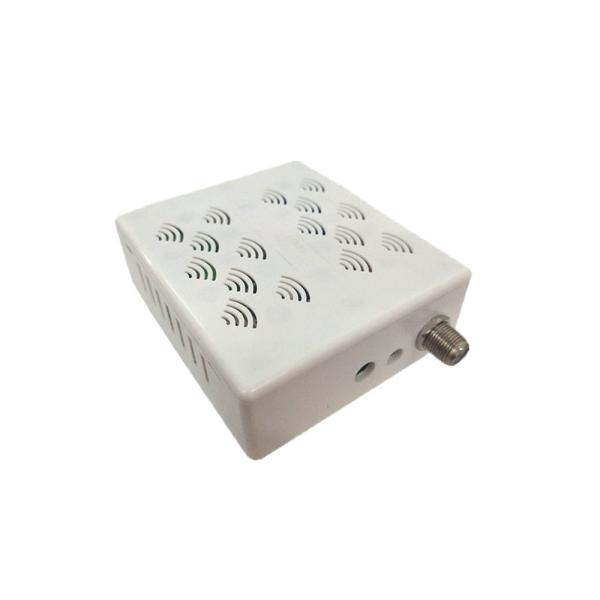

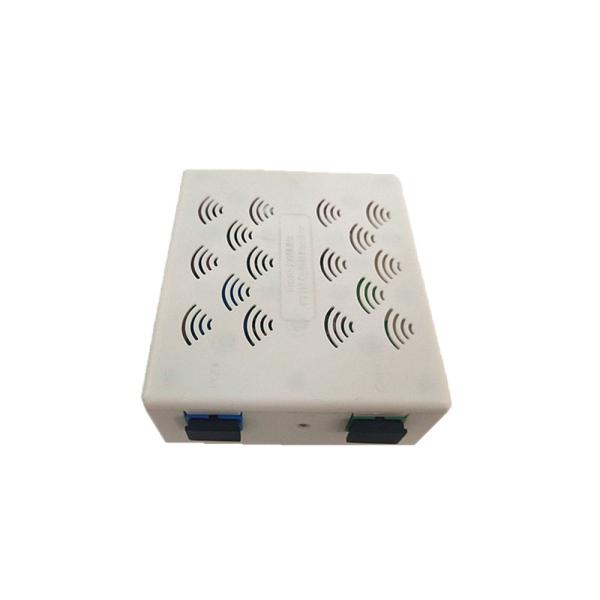

Passive CATV PON FTTH Mini Optical Node Receiver with WDM
Passive CATV PON FTTH Mini Optical Node Receiver with WDM
Passive CATV PON FTTH Mini Optical Node Receiver with WDM
Passive CATV PON FTTH Mini Optical Node Receiver with WDM
Passive CATV PON FTTH Mini Optical Node Receiver with WDM
Passive CATV PON FTTH Mini Optical Node Receiver with WDM
Specifications
Brand Name :
Topulink
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, Western Union
Product name :
1550 13dbm~26dBm EDFA 1550nm Fiber Optical Amplifier
Optical Fiber Type :
Single Mode
Input Optical Power :
-10 ~ +2dBm
Optical Receiver Wavelength :
1550±10nm
Optic Connector: :
SC/APC
Optical Return Loss :
>45dB
Price :
Negotiable
Description

assive FTTH WDM (CATV+PON) Optical Receiver for Digital TV, input Optical Power:-10 ~ +2dBm, Optical Return Loss:>45db,Optical Receiver Wavelength:1550±10nm,Optical Fiber Type: Single Mode, Frequency Range:40-1000MHZ, Optical in and Optical out isSC/APC Connector.

Features

No Power Required

Optical Interface for data

Designed for triple play FTTH

Much smaller size and very easy install

Frequency range 40-1000MHz For CATV Network

RF Interface for CATV End-Users (M-Male or F-Female )

Built-in WDM, suitable for single-fiber triple wavelength system,

RFTV operating wavelength 1550nm, pass wavelength 1310/1490nm,

Can conveniently connect the ONU of GEPON

Specification

Item Unit Description Remark
Customer Interface

RF Connector

75Ω "F-Female" connector

 75Ω "F-Female" connector
Optical Connector SC/APC Can be Customized

Input Optical Power

Optical Return Loss

dBm

-10 ~ +2

Digital TV
Optical Return Loss dB >45
Operating Wavelength nm 1550±10
Responsivity A/W ≥0.9 1310~1490nm
Optical Fiber Type Single Mode
Frequency Range MHz 40-1000
Flatness dB ±1dB
RF Output Level dBuV ≤62 -1dBm input power
Output Return Loss dB ≥15
Output Impedance Ω 75
C/N dBc >50 -1dBm input power
Power Input Voltage VDC 0
Power Consumption W N/A
Dimensions mm 110*63*23mm
Net weight KG 0.129

Passive CATV PON FTTH Mini Optical Node Receiver with WDM
