ERPOE-5 Gigabit PoE Dual Band Fiber Optic Router Multi Service Wired Router 24V 48V
ERPOE-5 Gigabit PoE Dual Band Fiber Optic Router Multi Service Wired Router 24V 48V
ERPOE-5 Gigabit PoE Dual Band Fiber Optic Router Multi Service Wired Router 24V 48V
ERPOE-5 Gigabit PoE Dual Band Fiber Optic Router Multi Service Wired Router 24V 48V
Specifications
Brand Name :
UBNT
Model Number :
ERPOE-5
Certification :
FCC,CCC,CE
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Product name :
ERPOE-5
Dimensions :
200 x 90 x 30 mm (7.87 x 3.54 x 1.18")
Weight :
360 g (12.7 oz)
Max. Power Consumption :
60W
Power Supply :
External AC/DC Adapter
Power Input :
24VDC / 48VDC (48VDC, 1.25A Power Adapter Included)
PoE Out Voltage Range :
22-24VDC / 45-48VDC
Warranty :
1 Year
Description

ERPOE-5 Gigabit PoE Dual Band Fiber Optic Router Multi Service Wired Router 24V 48V

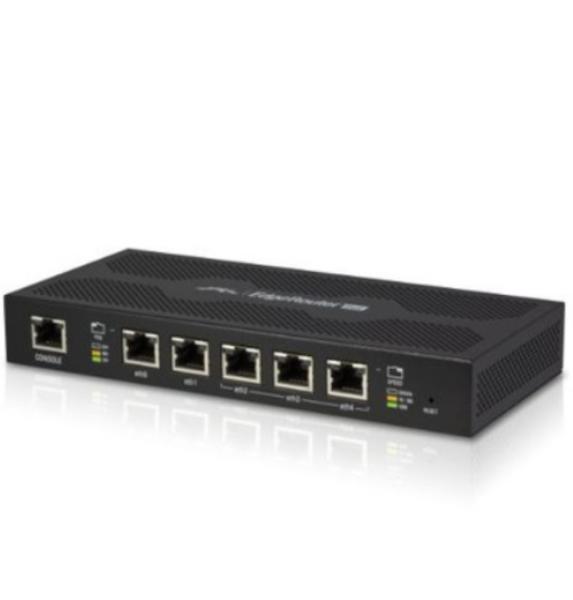

Hardware Overview

ERPOE-5 Gigabit PoE Dual Band Fiber Optic Router Multi Service Wired Router 24V 48V

1. Power LED
Green EdgeRouter Powered On

2. RJ45 PoE LED (eth0 - eth4 Ports)
Off No Power over Ethernet
Green 24V Power over Ethernet
Amber 48V Power over Ethernet

3. RJ45 Speed/Link/Activity LED (eth0 - eth4 Ports)
Off No Link
Amber

Link Established at 10/100 Mbps

Flashing Indicates Activity
Green

Link Established at 1000 Mbps

Flashing Indicates Activity

4. Console Port
RJ45 serial console port for Command Line Interface (CLI) management.

5. RJ45 (eth0 - eth4 Ports)
All ports can be used for routing and support 10/100/1000 Mbps connections with configurable PoE settings. eth2, eth3, and eth4 can be configured for switching using the EdgeOS Configuration Interface.

6. Reset Button
Click here to learn how to reset the EdgeRouter to factory defaults.

7. Power Port
Connect the included Power Adapter to the Power port.

8. Grounding Point
Ground bonding point for an optional ground wire.

Specifications

ERPoe-5

Dimensions

 200 x 90 x 30 mm (7.87 x 3.54 x 1.18")

Weight

 360 g (12.7 oz)
Max. Power Consumption 60W
Power Method External AC/DC Power Adapter, 60W (24V, 2.5A) (Included)
Power Supply External AC/DC Adapter
Supported Voltage Range 38 - 54VDC

Power Input

24VDC / 48VDC

(48VDC, 1.25A Power Adapter Included)

Button

 Reset

Processor

 Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing

System Memory

 512 MB DDR2 RAM

Code Storage

 2 GB

LEDs
Serial Console Port Power
Data Ports PoE, Speed/Link/Activity

PoE Configurations
Serial Console Port N/A
Data Ports Off/24V/48V*

Networking Interfaces
Serial Console Port (1) RJ45 Serial Port
Data Ports (2) 10/100/1000 Ethernet Router Ports
(3) 10/100/1000 Ethernet Router/Switch Ports

Wall-Mount

 Yes

Operating Temperature

 -30 to 50° C (-22 to 122° F)

Operating Humidity

 10 to 90% Noncondensing

Certifications

 CE, FCC, IC

* 48V only available when using the included 48VDC Power Adapter.

PoE with 48VDC Power Adapter
PoE Out Voltage Range 22-24VDC / 45-48VDC
Max. PoE Wattage Per Data Port 12W (24V), 24W (48V)
Max. PoE Wattage Combined for All 5 Data Ports 50W
PoE Method Passive
