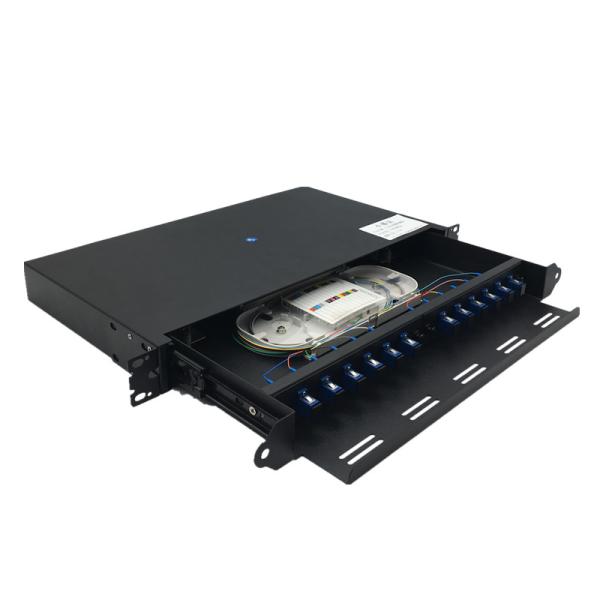

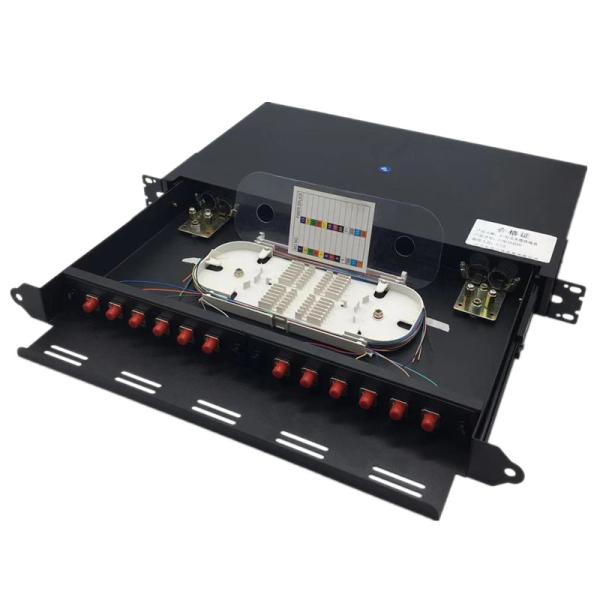

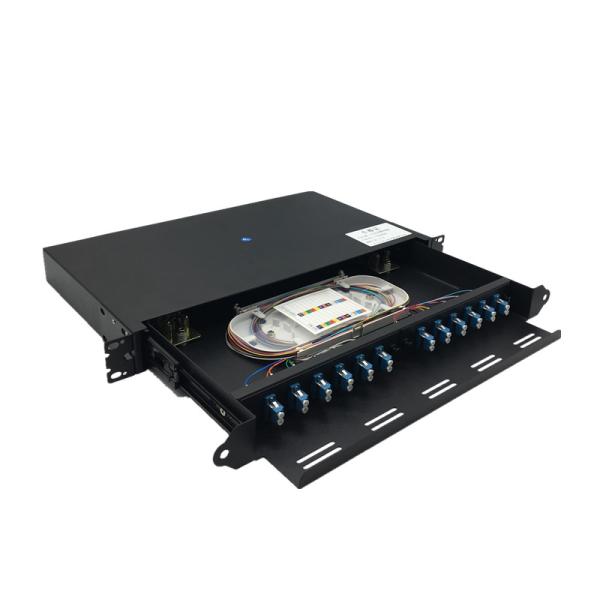

4/8/12/16/24 Core 1u Rack Mount Stainless Steel Optic Fiber SC Port Patch Panel
4/8/12/16/24 Core 1u Rack Mount Stainless Steel Optic Fiber SC Port Patch Panel
4/8/12/16/24 Core 1u Rack Mount Stainless Steel Optic Fiber SC Port Patch Panel
4/8/12/16/24 Core 1u Rack Mount Stainless Steel Optic Fiber SC Port Patch Panel
4/8/12/16/24 Core 1u Rack Mount Stainless Steel Optic Fiber SC Port Patch Panel
4/8/12/16/24 Core 1u Rack Mount Stainless Steel Optic Fiber SC Port Patch Panel
4/8/12/16/24 Core 1u Rack Mount Stainless Steel Optic Fiber SC Port Patch Panel
4/8/12/16/24 Core 1u Rack Mount Stainless Steel Optic Fiber SC Port Patch Panel
Specifications
Brand Name :
TPULINK
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000
Delivery Time :
5-8days
Packaging Details :
new in the box.
Product name :
24 port fiber optic patch panel
Certification :
CE RoHS FCC
port :
4/8/12/16/24 Port
connector :
SC
Application :
FTTH FTTB FTTX Network
Description

4/8/12/16/24 core 1u Rack Mount Stainless Steel optic fiber SC port patch panel

can be applied in the branch connection of fiber termination,working as distribution box;19" standard structure rack mounted;Available for the installation of FC,SC,ST,LC adaptors.

Product Name: 24 Port Fiber Optic Patch Panel Certification: CE RoHS FCC
Port: 4/8/12/16/24 Port Connector: SC
Application: FTTH FTTB FTTX Network Place Of Origin: Guangdong, China

1. Application

Rack mount serial dustproof cover optical fiber terminal box can be applied in the storage of indoor optical cable, distribution and terminal of various optical fiber system. Available for the rack installation of adaptors for FC, SC, ST, LC and so on. Revolving structure, easy for operation.

2. Features

l The body make use of cold rolling steel,and the surface use the technique of dim plastic.strong

adhesive force,artistic and durable;

l Standard size, light weight and reasonable structure;

l Splice tray inside changeable;

l Can be used in 19'', 23'' standard distribution frame;

l Suitable for ribbon and single fiber;

l SC/ST/FC/LC ports is available;

l Front mark on the plate is easy for identification and operation;

l 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters;

l Easy for management and operation .

3.Performance for fiber optic terminal box

n External size 480x250x1U, 2U,

n Fiber capacity from 12 cores to 48 cores

n Insertion loss: <0.3dB

n Return loss: PC< 40 dB, UPC<50dB, APC< 60dB

n Winding radius ≥40mm

n Working temperature -25°C~+45°C

n Atmosphere pressure 70~106Kpa

n Insulated Resistance 2×10MΩ/500V(DC)W

n Voltage- resistance:Under the effect of 3kv/DC/1min, non-puncture, and no arc-over.

4/8/12/16/24 Core 1u Rack Mount Stainless Steel Optic Fiber SC Port Patch Panel
