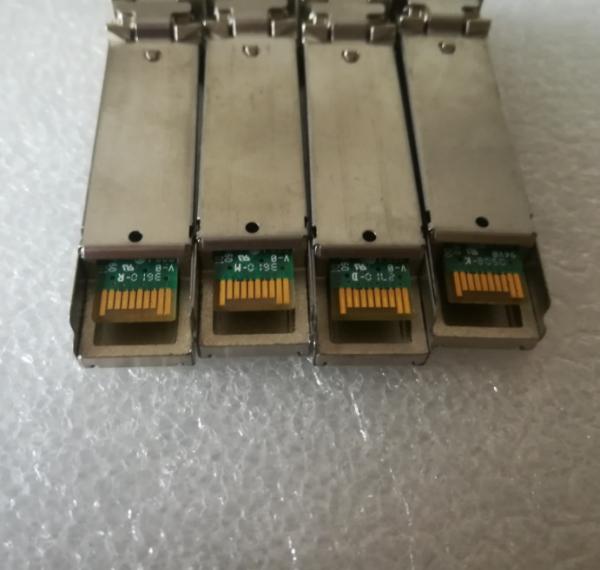

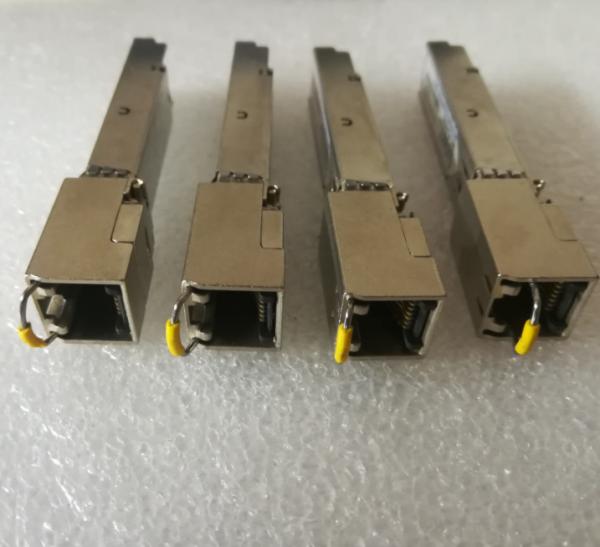

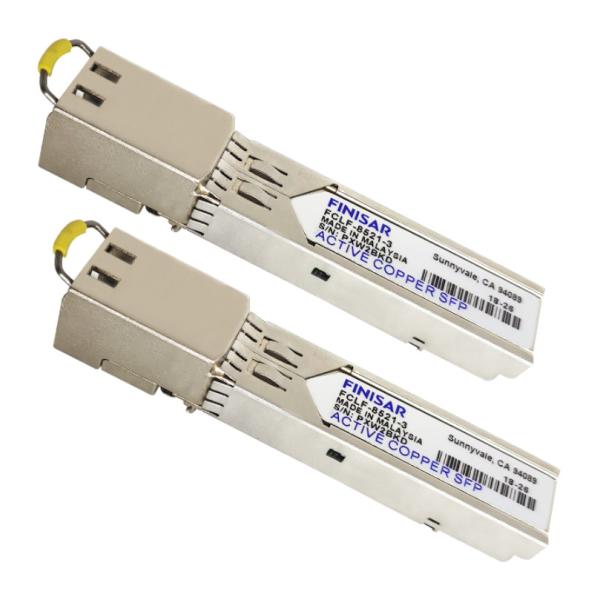

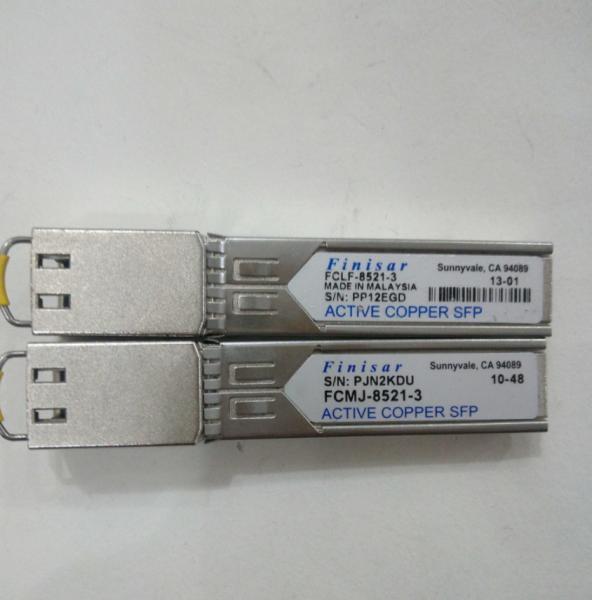

Finisar FCLF-8521-3 Fiber SFP Modules RJ45 Transceiver FTLC8522P2BLT
Finisar FCLF-8521-3 Fiber SFP Modules RJ45 Transceiver FTLC8522P2BLT
Finisar FCLF-8521-3 Fiber SFP Modules RJ45 Transceiver FTLC8522P2BLT
Finisar FCLF-8521-3 Fiber SFP Modules RJ45 Transceiver FTLC8522P2BLT
Finisar FCLF-8521-3 Fiber SFP Modules RJ45 Transceiver FTLC8522P2BLT
Finisar FCLF-8521-3 Fiber SFP Modules RJ45 Transceiver FTLC8522P2BLT
Finisar FCLF-8521-3 Fiber SFP Modules RJ45 Transceiver FTLC8522P2BLT
Finisar FCLF-8521-3 Fiber SFP Modules RJ45 Transceiver FTLC8522P2BLT
Specifications
Brand Name :
Finisar
Model Number :
FCLF-8521-3
Place of Origin :
China, Guangdong
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100
Delivery Time :
3days
Packaging Details :
new in the box.
Model :
FCLF-8521-3
Operating supply voltage :
3.13 to 3.47 V
The maximum data rate :
1250Mbps
The connector type :
RJ-45
The data transfer rate :
1.25Gbs
Power supply :
3.3V
Connector type :
USB-A to RJ45
Warranty :
1 Year
Description

Finisar FCLF-8521-3 Fiber SFP Modules RJ45 Transceiver FTLC8522P2BLT

Finisar FCLF-8521-3 original Gigabit electric port light-to-electric RJ45 module industrial grade FTLC8522P2BLT

Product Features

* Up to 1.25Gb/s bi-directional data links

* Hot-pluggable SFP footprint

* Extended case temperature

range (0°C to +85°C )

* Fully metallic enclosure for low EMI

* Low power dissipation (1.05 W typical)

* Compact RJ-45 connector assembly

* RoHS compliant and Lead Free

* Access to physical layer IC via 2-wire

serial bus

* 10/100/1000 BASE-T operation in host

systems with SGMII interface

Product Applications

* 1.25 Gigabit Ethernet over Cat

5 cable

Finisar’s FCLF-8520/8521-3 1000BASE-T Copper Small Form Pluggable (SFP)

transceivers are based on the SFP Multi Source Agreement (MSA)

1. They are compatible

with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3

2. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to

all PHY settings and features.

The FCLF-8520-3 uses the SFP’s RX_LOS pin for link indication, and 1000BASE-X

auto-negotiation should be disabled on the host system. The FCLF-8521-3 is compatible

with 1000BASE-X auto-negotiation, but does not have a link indication feature

(RX_LOS is internally grounded). See AN-2036, “Frequently Asked Questions

Regarding Finisar’s 1000BASE-T SFPs”, for a more complete explanation on the

differences between the two models and details on applications issues for the products.

FCLF-8521-3 product specifications

Specifications

FCLF-8520-21-3

Rohs

Lead free / RoHS Compliant

Standard packaging

1

type

USB to Ethernet

Connector type

USB-A to RJ45

wrap

20SFP

type

TX/RX

Installation

Snap Fit To Panel

Rise time

0.175(Typ) ns

Operating supply voltage

3.13 to 3.47 V

Standard packaging

Trays

Typical operating supply voltage

3.3

EU RoHS Directive

Compliant

Maximum operating temperature

85

The maximum data rate

1250Mbps

Minimum operating temperature

0

Packing height

13.4

Minimum operating supply voltage

3.13

The connector type

RJ-45

Rise time

0.175(Typ)

Filter level

Extended

The width of the package

13.7

PCB

20

The length of the package

74

Maximum operating supply voltage

3.47

Maximum drop time

0.175(Typ)

shape

SFP

The number of pins

20

The type of installation

Pluggable, SFP

The data transfer rate

1.25Gbs

The scope of application

Ethernet

Voltage - Power supply

3.3V

RoHS instruction

Lead free / RoHS Compliant

encapsulation

Tray

products

Transceivers

apply

Ethernet

Installation style

Snap In

Appearance size or package type

SFP

Minimum operating temperature

0 C

Part number alias

FCLF-8521-3

Maximum operating temperature

+ 85 C

RoHS

RoHS Compliant

Finisar FCLF-8521-3 Fiber SFP Modules RJ45 Transceiver FTLC8522P2BLTFinisar FCLF-8521-3 Fiber SFP Modules RJ45 Transceiver FTLC8522P2BLT
