1.25G 4FE GPON ONT High Performance Non Blocking Switching Support Port Monitoring
1.25G 4FE GPON ONT High Performance Non Blocking Switching Support Port Monitoring
1.25G 4FE GPON ONT High Performance Non Blocking Switching Support Port Monitoring
1.25G 4FE GPON ONT High Performance Non Blocking Switching Support Port Monitoring
1.25G 4FE GPON ONT High Performance Non Blocking Switching Support Port Monitoring
1.25G 4FE GPON ONT High Performance Non Blocking Switching Support Port Monitoring
Specifications
Brand Name :
NATYWISH
Model Number :
NTW-G17400S
Certification :
CE, RoHs , FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Paypol
Supply Ability :
5000 pcs / week
Delivery Time :
5 - 8 working days
Packaging Details :
1pc/ box
PON Port :
Upstream：1.24rea4Gbps.
LAN Port :
Downstream：2.488Gbps.
WIFI Function :
built in wifi
Power Supply :
External power adapter, 12V/1.5A
Color :
White
Receiving sensitivity :
-27dBm
Description

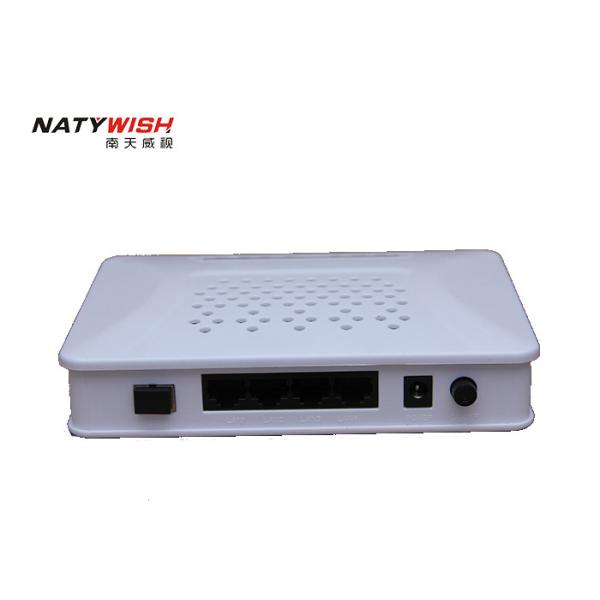

GPON ONU with one uplink GPON port ,1GE +3FE LAN ports , built in WIFI

NTW-G17400S

1.25G 4FE GPON ONT High Performance Non Blocking Switching Support Port Monitoring

Product Overview

NTW-G17400S series GPON 1GE+3FE ONU with integrated,powerful interoperability and low cost, provides triple-play services to the subscribers in FTTX application.Equipped with 2.5G Downstream and 1.25G Upstream GPON interface, compliant with ITU-T G.984 standard.

NTW-G17400S series ONU support the comprehensive triple-play services, including voice, video (IPTV or VoD), and high-speed internet access service.

Product Feature

► Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade etc.

► Integrated OMCI remote configuration and maintenance function.

► Support rich QinQ VLAN functions and IGMP Snooping multicast features.

► Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

► Support NAT, Firewall function.

► Support IPv4 and IPv6 dual stack.

► The WAN port supports bridge, router and bridge/router mixed mode.

Hardware Specification

Specification

 NTW-G17400S
PON Interface Rate

Upstream:1.24rea4Gbps.

Downstream:2.488Gbps.

Interface standard

 Class B+

Optical output rate

 +0.5~+5dBm

Receiving sensitivity

 -27dBm

Receiving saturability

 -8dBm
Service Interface

PON interface

 1

Data interface

 1*10/100/1000Base-T,3*10/100Base-T

Dimension

 170mm(L)*120mm(W)*30mm(H)

Weight

 240g

Power Supply

 External power adapter, 12V/1.5A

Power Consumption

 <18W

Working Environment

 Temperature 0°C ~ +40°C

Humidity

 5% ~ 90% (no condensing)

Specification Feature

Feature

NTW-G17400S
GPON Feature

1.Compliant with ITU-T G.984 GPON standard.

2.FEC (Forward Error Correction) in both upstream and downstream.

3.Dynamic bandwidth status report.

4.802.1p mapper for upstream.

5.QoS scheduling based on SP or WRR between GEM port and T-CONT.

6.Downstream multicast GEM port and broadcast GEM port.
Ethernet Feature

1.Support Auto-speed and MDI/MDIX auto detection.

2. Internal L2 switch.

3.Advanced data processing function, such as VLAN label processing, flow classification and packet filtering.
Gateway Feature
  • .WAN support Routerand Bridge mode.
  • Router mode supportsPPPoE/DHCP/ static IP.
  • WAN support Internet,VoIP,IPTV,TR069.
  • LAN supports DHCP and static IP.
  • Support NAT and NAPT.
  • Support UPnP.
OAM Feature

1. Standard OMCI (the embedded operations channel)compliant with ITU-T G.988.

  • Compliant with TR-069 standard.
  • Compliant with TR-098,TR-140 terminal integrated management interface specification,

configuration of all kinds of services, including Ethernet,VoIP,WLAN, etc.

  • Alarm reporting, performance monitoring.
  • Remote software upgrade through OMCI.
