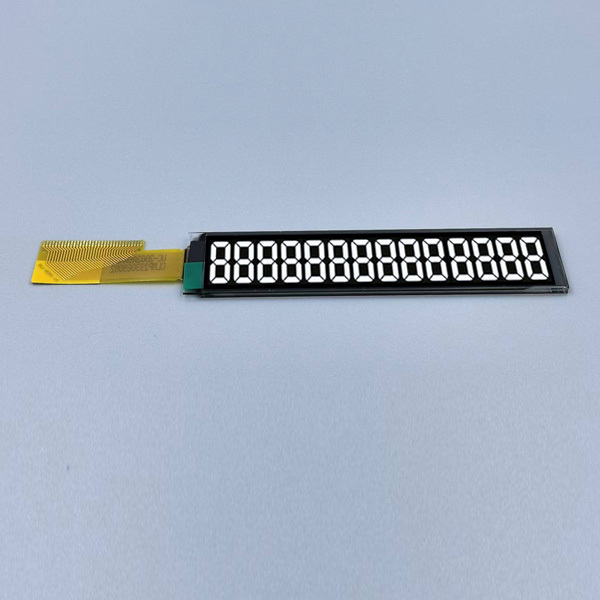

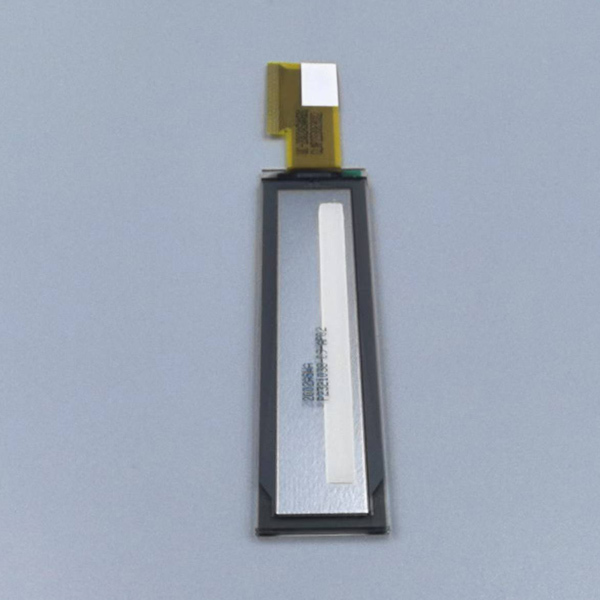

2.93 Inch White Character Lcd Display Character Oled Module 33 Pin 20x2 SPI I2C Interface
2.93 Inch White Character Lcd Display Character Oled Module 33 Pin 20x2 SPI I2C Interface
2.93 Inch White Character Lcd Display Character Oled Module 33 Pin 20x2 SPI I2C Interface
2.93 Inch White Character Lcd Display Character Oled Module 33 Pin 20x2 SPI I2C Interface
2.93 Inch White Character Lcd Display Character Oled Module 33 Pin 20x2 SPI I2C Interface
2.93 Inch White Character Lcd Display Character Oled Module 33 Pin 20x2 SPI I2C Interface
2.93 Inch White Character Lcd Display Character Oled Module 33 Pin 20x2 SPI I2C Interface
2.93 Inch White Character Lcd Display Character Oled Module 33 Pin 20x2 SPI I2C Interface
Specifications
Brand Name :
Limito
Model Number :
UC-2002ASWAG01
Place of Origin :
China
Diagonal Screen Size :
2.93
Drive IC :
US2066
Interface :
4-/8-bit 68XX/80XX Parallel, SPI, I2C
Life Time :
50000
Operating Temperature :
-40~85°C
Number of Characters :
20 Characters( 5x8 ) x 2 Lines
Brightness :
120
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Description

2.93inch white 33 pin 20x2 character type oled display Parallel SPI I2C Interface

LIMITO OLED Description:

  • Size and Format: Measuring 2.93 inches diagonally, this display features a 20x2 character layout, allowing for the display of 40 characters at a time, making it ideal for text-based applications.
  • White OLED Technology: The display uses white OLED technology, providing bright and clear visuals with high contrast against a dark background.
  • Multiple Interfaces: The module supports Parallel, SPI, and I2C interfaces, offering flexibility in connectivity and making it easy to integrate with various microcontrollers and systems.
  • Low Power Consumption: OLED displays are known for their energy efficiency, which is beneficial for battery-operated devices and applications where power conservation is important.
  • Wide Viewing Angles: The display maintains consistent brightness and clarity from different angles, ensuring good visibility for users.
  • Fast Response Time: The quick refresh rates of OLED technology allow for smooth text scrolling and dynamic updates.
  • Durable and Reliable: Built to last, this display is resistant to temperature variations and offers a long lifespan.

LIMITO OLED Specification:

Part Name: OLED Display Module
Limito Part ID:
UC-2002ASWAG01
Display Mode: Passive Matrix
Display Color: Monochrome(White)
Drive Duty: 1/16 Duty
Number of Characters: 20 Characters( 5x 8 ) x 2 Lines
Panel Size:
84.50 x 19.28 x 2.00 (mm)
Active Area: 73.52 x 11 .52 (mm)
Character Pitch: 3.70 x 5.95 (mm)
Character Size: 3.22 x 5.57 (mm)
Pixel Pitch: 0.65 x 0.70 (mm)
Pixel Size:
0.62 x 0.67 (mm)

LIMITO OLED Mechanical Drawing

2.93 Inch White Character Lcd Display Character Oled Module 33 Pin 20x2 SPI I2C Interface

LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.

LIMITO OLED Benefits:

High Contrast Ration(10,000:1)

Free Viewing Angle

Fast Response Time(<15us)

Thinner & Lighter & Durable

Wide operation Temperature-40°c~+85°c

Self-emitting, no need for a backlight

LIMITO OLED Application:

Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key

Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box

Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard

PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen

Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment

Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
