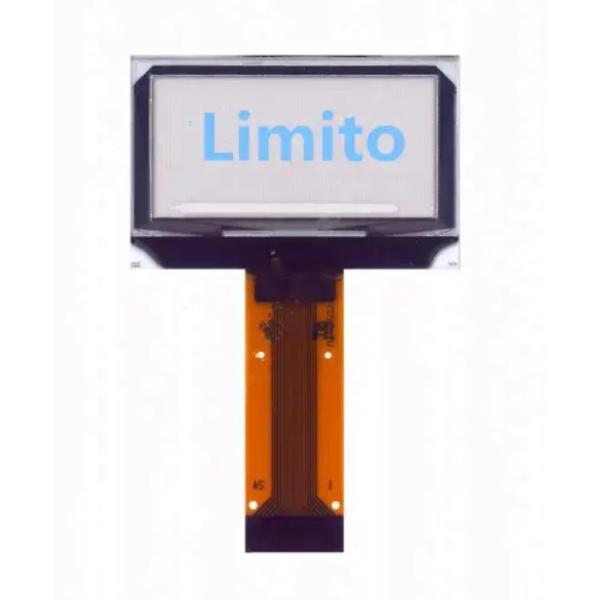

1.51 Inch Oled Display Transparent Oled 128x56 Pixels
1.51 Inch Oled Display Transparent Oled 128x56 Pixels
Specifications
Brand Name :
Limito
Model Number :
UG-6464TDDBG01
Place of Origin :
China
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
1.51
Drive IC :
SSD1309
Interface :
8-bit 68XX/80XX Parallel, 4-wire SPl, I2C
High Temperature Storage :
85°C, 240 hrs
Low Temperature Storage :
-40°C, 240 hrs
Description

1.51 Inch Oled Display Transparent Oled 128x56 Pixels

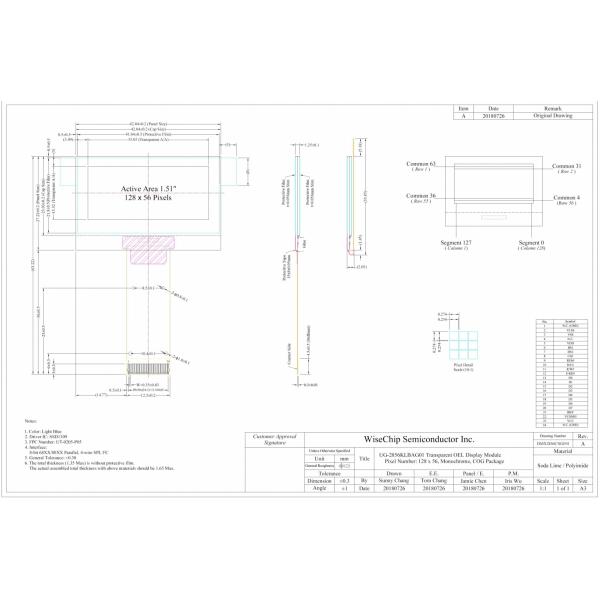

1.Mechanical Drawing

1.51 Inch Oled Display Transparent Oled 128x56 Pixels

2.Basic specification

Part Name:
OLED Display Module
Limito Part ID:
QG-2856KLBAG01
Display Mode:
Passive Matrix
Display Color:
Monochrome (Light Blue)
Drive Duty:
1/56 Duty
Number of Pixels
128 x 56
Module Size
42.04 x 63.22 x 1.25 (mm)
Panel Size:
42.04 x 27.22 x 1.25 (mm)
Active Area:
35.05 x 15.32 (mm)
Pixel Pitch:
0.274 x 0.274 (mm)
Pixel Size:
0.254 x 0.254 (mm)

LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.

LIMITO OLED Benefits:

High Contrast Ration(10,000:1)

Free Viewing Angle

Fast Response Time(<15us)

Thinner &Lighter&Durable

Wide operation Temperature-40°c~+85°c

Self-emitting,No need of backlight

LIMITO OLED Application :

Industrial: Mearusring& meter,OA Equipment,POS&Server Card Reader,Door Security,USB Key

Communication:Mobile Phone,Bluetooth Device,Router,Set-Top Box

Automotive:Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard

PC peripheral: Keyboard, Mouse,Printer,Scanner,NAS, Digital Pen

Medical:Glucose Meter,Oximeter,Blood-pressure Meter,Beauty&Cosmetic Equipment

Consumer:IoT,E-Cigarette,Wearable Device,Remote Controller,Game Machine,Digital Camera,Audio Video Equipment
