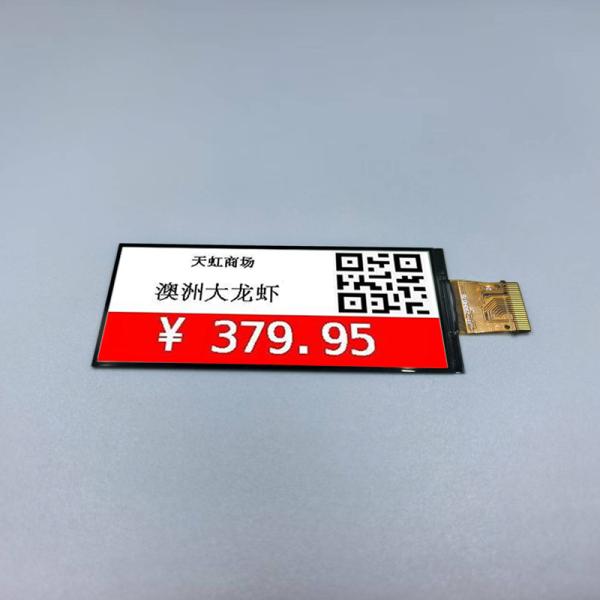

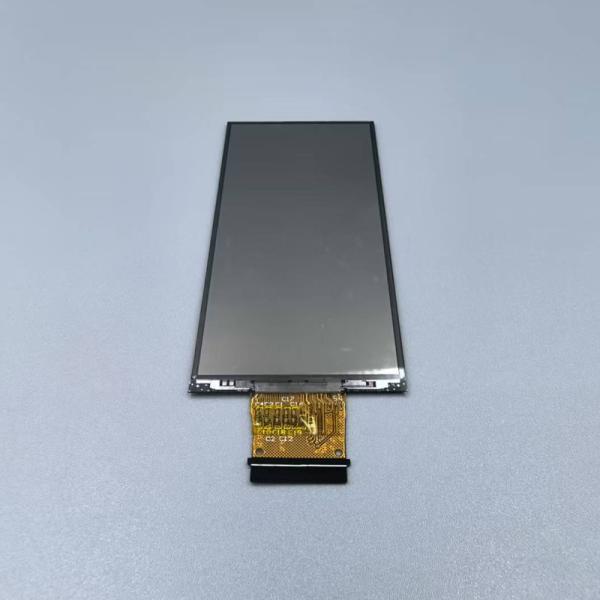

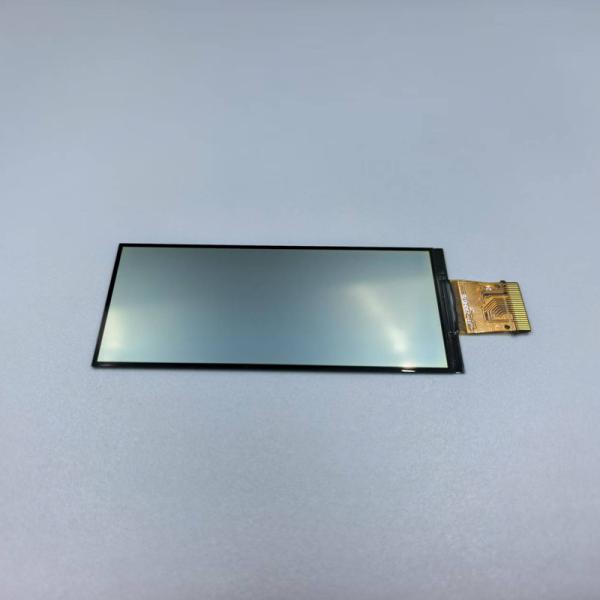

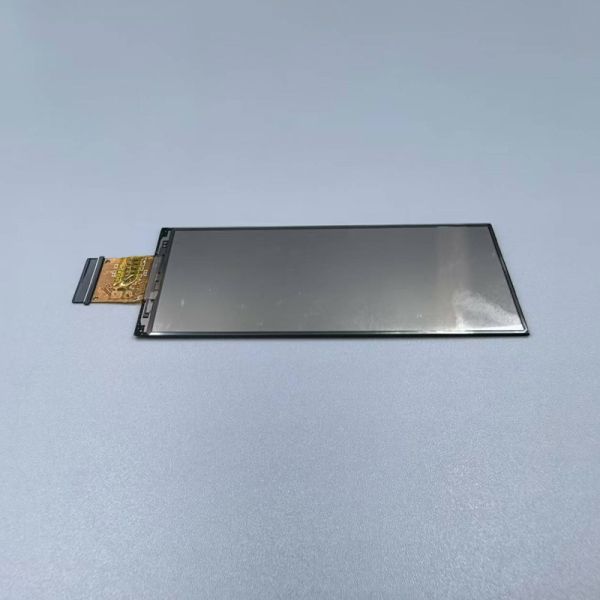

2.9 Inch E Paper Display Black White Red E Paper Display Module High Durability
2.9 Inch E Paper Display Black White Red E Paper Display Module High Durability
2.9 Inch E Paper Display Black White Red E Paper Display Module High Durability
2.9 Inch E Paper Display Black White Red E Paper Display Module High Durability
2.9 Inch E Paper Display Black White Red E Paper Display Module High Durability
2.9 Inch E Paper Display Black White Red E Paper Display Module High Durability
2.9 Inch E Paper Display Black White Red E Paper Display Module High Durability
2.9 Inch E Paper Display Black White Red E Paper Display Module High Durability
2.9 Inch E Paper Display Black White Red E Paper Display Module High Durability
2.9 Inch E Paper Display Black White Red E Paper Display Module High Durability
2.9 Inch E Paper Display Black White Red E Paper Display Module High Durability
2.9 Inch E Paper Display Black White Red E Paper Display Module High Durability
Specifications
Brand Name :
Limito
Model Number :
LHF290TB-F07
Place of Origin :
China
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
2.9
Drive IC :
ST7305
Interface :
4 Line SPI
Operating Temp :
-20℃~ +70℃
Storage Temp :
-30℃~+ 80℃
Description

2.9 Inch E Paper Display Black White Red E Paper Display Module High Durability

LIMITO IPS TFT LCD Display Description:

LHF290TB-F07 is a 168X384 dot-matrix TFT LCD module. This module is composed of a TFT LCD

Panel, driver ICs, FPC

LIMITO IPS TFT LCD Display Specification:

LCD Size

2.9

Display Mode

Mono TF T/Normally White/ Reflective

Resolution

168(H) x 384(V)

Pixel pitch

0.1732(H) x 0.17408(V)

Active area
29.1(H) x 66.85(V)

Module size

31.1(H) x 70.95(V) x0.8(D)

Weight

3.7g

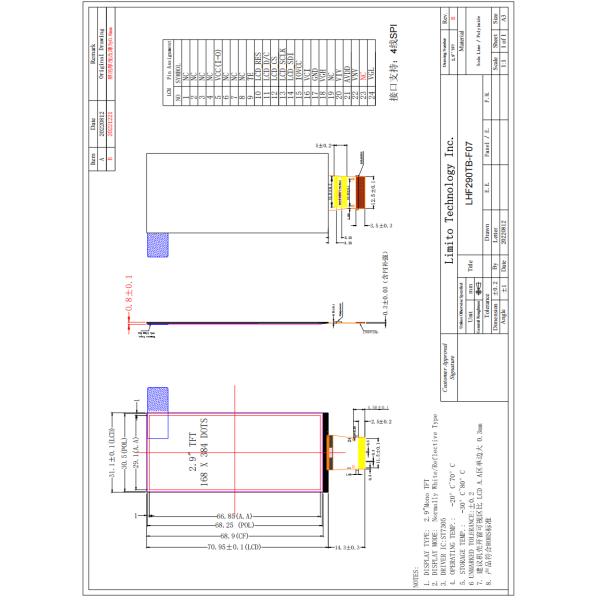

LIMITO IPS TFT LCD Display Mechanical Drawing

2.9 Inch E Paper Display Black White Red E Paper Display Module High Durability

LIMITO IPS TFT LCD Display Advantages:

1. Low Power Consumption

The bistable nature of E-Ink technology means that the display only consumes power when changing the image. This allows for longer battery life in devices.

2. Readability in Sunlight

E-Ink displays are designed to be easily readable in direct sunlight, making them ideal for outdoor use.

3. Wide Viewing Angles

The display provides excellent visibility from various angles, which is advantageous for shared viewing.

4. Paper-like Appearance

The display mimics the look of printed paper, reducing eye strain compared to traditional screens.

5. Durability

E-Ink screens are generally more robust and less susceptible to damage compared to LCD or OLED screens.

6. Lightweight and Thin

The compact size and lightweight nature of the display make it suitable for portable devices.

7. Environmental Benefits

E-Ink technology often uses less energy and can be more eco-friendly than traditional displays, especially for applications like e-readers.

8. Cost-Effective for Specific Applications

Ideal for devices requiring static information display, such as price tags or signage, thus reducing overall costs.

9. Versatile Applications

Suitable for a range of applications, from e-readers and smartwatches to IoT devices and digital signage.
