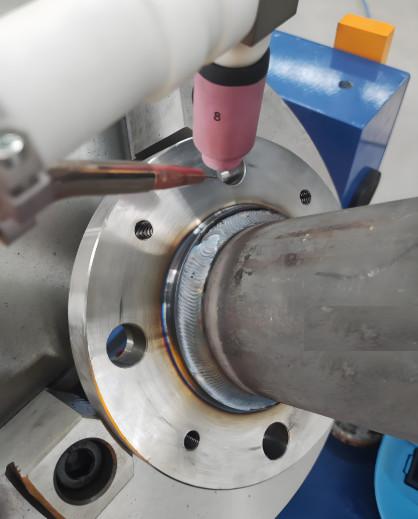

FWM-100 Flange Welding Machine with YC-400TX4 Power Supply
FWM-100 Flange Welding Machine with YC-400TX4 Power Supply
FWM-100 Flange Welding Machine with YC-400TX4 Power Supply
FWM-100 Flange Welding Machine with YC-400TX4 Power Supply
Specifications
Brand Name :
Olang
Model Number :
OL-41
Certification :
ISO
Place of Origin :
Foshan City ,China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 unit/month
Delivery Time :
15-30days
Packaging Details :
Wooden Case Packing
Welding Wire Diameter :
0.8-1.6mm
Model :
FWM-100
Welding Head Vertical Adjustment :
±15mm
Welding Diameter Range :
DN50-DN300
Welding Head Rotation Angle :
0-360 degrees
Power Source :
argon arc welding
Description

The Most Versatile Flange Welding Machine with YC-400TX4 Power Supply

Product characteristics:

· Super compatibility: can be applied to welding of engineering pipelines, fire protection pipelines, natural gas pipelines, fans, pressure vessel tanks, flange pipes, pipe elbows, pipe splicing, cylinder bodies and other products.

· Complete functional configuration: equipped with various models and sizes of positioners, suitable for processing products of different specifications. The flipping angle and rotation angle can be adjusted, and the welding method can choose DC welding or pulse welding. The welding can choose whether to swing or not, and whether to fill the welding wire can be selected. Equipped with arc voltage tracking function, the tungsten needle will automatically adjust according to the welding distance during welding, and the welding current can be controlled freely.

· Operating system: Easy to learn, can store countless welding formulas, and can call welding parameters with just one click.​

TECHNICALPARAMETER

ModelOL-A-FLG-400OL-A-FLG-1500OL-A-FLG-3000OL-A-FLG-6000
welding applicationPipe-to-Pipe Welding ,Pipe-to-Flange Welding,Elbow-to-Flange Welding,Pipe-to-Tee Welding

welding power supply

YC-400TX4YC-400TX4YC-400TX4YC-400TX4


welding torch working distance

400mm1500mm3000mm6000mm

work torch angle

0-90 degree0-90 degree0-90 degree0-90 degree


applicable thickness

0.8-3mm0.8-3mm0.8-3mm0.8-3mm



Positional center hole

170( Accept customization )170( Accept customization )170( Accept customization )170( Accept customization )


Flange OD

20-50020-50020-50020-500


Chuck center height

380mm380mm380mm380mm



Elbow rotation radius

<380<380<380<380


swinger


Swing Range: 0-20mm
Swing Speed: 0-20mm/min
Dwell Time: 0-5 seconds


wire feeding mamchine

Compatible with Wire Diameters: 0.8mm, 1.0mm, 1.2mm, 1.6mm
Power supply15kw/380v/50hz







Application


FWM-100 Flange Welding Machine with YC-400TX4 Power Supply

Factory work shop
FWM-100 Flange Welding Machine with YC-400TX4 Power Supply

Package:
FWM-100 Flange Welding Machine with YC-400TX4 Power Supply
Exhibiton:
FWM-100 Flange Welding Machine with YC-400TX4 Power Supply
Certificate
FWM-100 Flange Welding Machine with YC-400TX4 Power Supply
FWM-100 Flange Welding Machine with YC-400TX4 Power Supply
