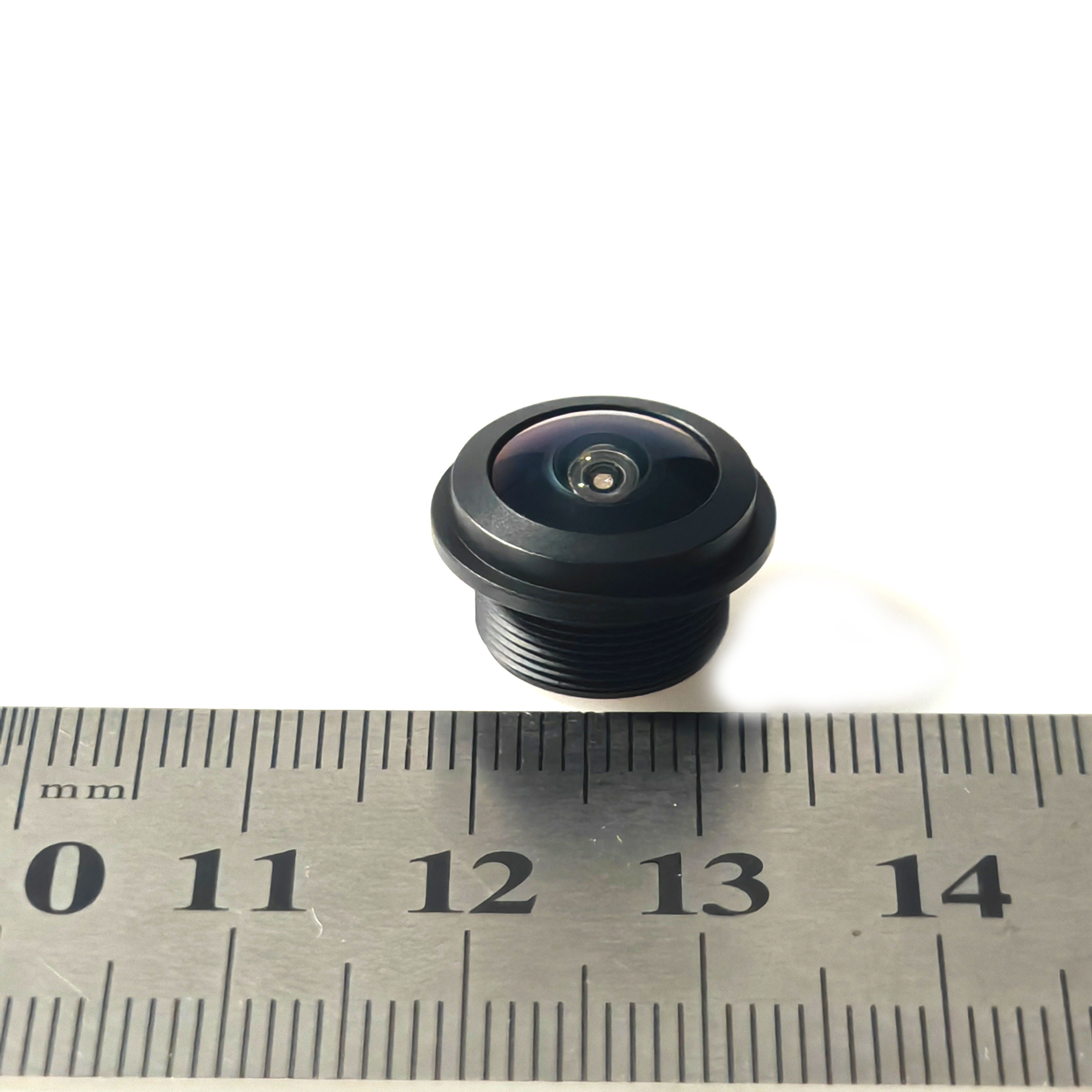

.OKS3604-A4-650 is a cost-effective ultra-wide M12 fisheye lens developed by OKSEE Optical, specially customized for automotive surround view and panoramic security monitoring.

Adopting 6 pieces all-glass optical design with 650nm IR cut filter, it effectively filters infrared interference and restores true color in daytime. The high 67% relative illumination ensures consistent brightness across the whole frame, avoiding dark corners common on cheap wide-angle lenses.

With F2.0 large aperture design, it greatly improves light intake, delivering clean and clear images under dim night environments. The ultra-compact 13.4mm TTL structure and 4.5g light weight perfectly fit mini hidden camera modules for passenger cars, trucks, buses and outdoor CCTV equipment.

All lenses pass strict reliability tests including high/low temperature storage, thermal cycle shock and vibration test, stable performance under complex vehicle & outdoor temperature and humidity changes. Standard M12×0.5 interface supports mass assembly for various camera modules.

• Product Name: Video Doorbell Lens
• Mechanical Back Focal Length: 2.99mm
• F/No: F1.8 for excellent low-light performance
• MAX Image Circle: 6.8mm, ensuring wide compatibility
• Field of View (FOV): 1/2.7" sensor size with Horizontal 160°, Vertical 96°, Diagonal 175°
• Waterproof Level: IP69K, suitable for all weather conditions
• Designed specifically as a Video Doorbell Camera Lens for clear and wide-angle video capture
• High-quality Video Doorbell Camera Lens that delivers sharp and vibrant images
• Durable and reliable Video Doorbell Camera Lens ideal for security and monitoring purposes

Automotive Electronics: 360° vehicle surround view system, reversing rearview camera, streaming CMS mirror, commercial truck/bus monitoring, ADAS auxiliary camera

Security Surveillance: Panoramic fisheye IP camera, parking lot, factory, store all-day monitoring, low-light outdoor waterproof camera

Intelligent Hardware: Video doorbell, access recognition camera, conference panoramic camera, retail passenger flow statistics

Industrial Vision: Mini machine vision inspection, equipment monitoring, logistics scanning camera

Mechanical customization: Adjust TTL, front barrel diameter, back focal length

Appearance: Laser engraving customer LOGO, custom anodized barrel color

Optical: Modify FOV, CRA, distortion according to sensor chip

Package: Custom color box, multi-language manual, printed inner bags

1/2.7" AR0237 (1920*1088) HFOV:157 VFOV:96 DFOV:175
1/2.8" IMX307(1920*1080) HFOV:154 VFOV: 93.5 DFOV:171
1/2.9" GC2053 (1920*1080) HFOV:149 VFOV:90 DFOV:166
1/3" H65(1280* 720 ) HFOV:136 VFOV :81 DFOV:153
1/4" JX-H62 (1280 *720) HFOV:112 VFOV :65 DFOV:127
