OKS-3024-A4-650+HY-2015A is professional M12 nontower lens exclusively developed for CMS Camera Monitor System (electronic rearview mirror) of heavy trucks, buses and commercial vehicles, compliant with ECE R46 regulation.
Adopting 5 pieces full glass + IR filter optical design, it reaches 63% high relative illumination and ultra-low CRA below 16.5°, effectively eliminate dark corners and strong glare from rear car headlights. Fixed 6mm focal length brings 63° diagonal field of view, ideal for long-distance lane monitoring and blind spot detection. Optimized -8.6% distortion ensures straight, undistorted lane lines to match CMS image correction algorithm perfectly.
IP67 dust & water resistant barrel together with wide temperature range (-40℃~+85℃) guarantees stable imaging in rain, snow, high temperature and cold northern areas. Matched integrated nontower mounting base simplifies camera assembly, fits narrow side mirror housing for mass commercial vehicle OEM production.

• M12×0.5 mount, matched with 1/2.8 sensor, dedicated for CMS electronic mirror system
• 63° diagonal moderate FOV, far-distance clear observation for lane & rear vehicles
• 5G+IR optical structure, 63% high relative illumination, bright image edges
• CRA <16.5°, suppress headlight glare for day & night driving
• Distortion -8.6%, natural straight lane line without deformation
• IP67 waterproof, -40℃~+85℃ extreme temp resistance for trucks/buses

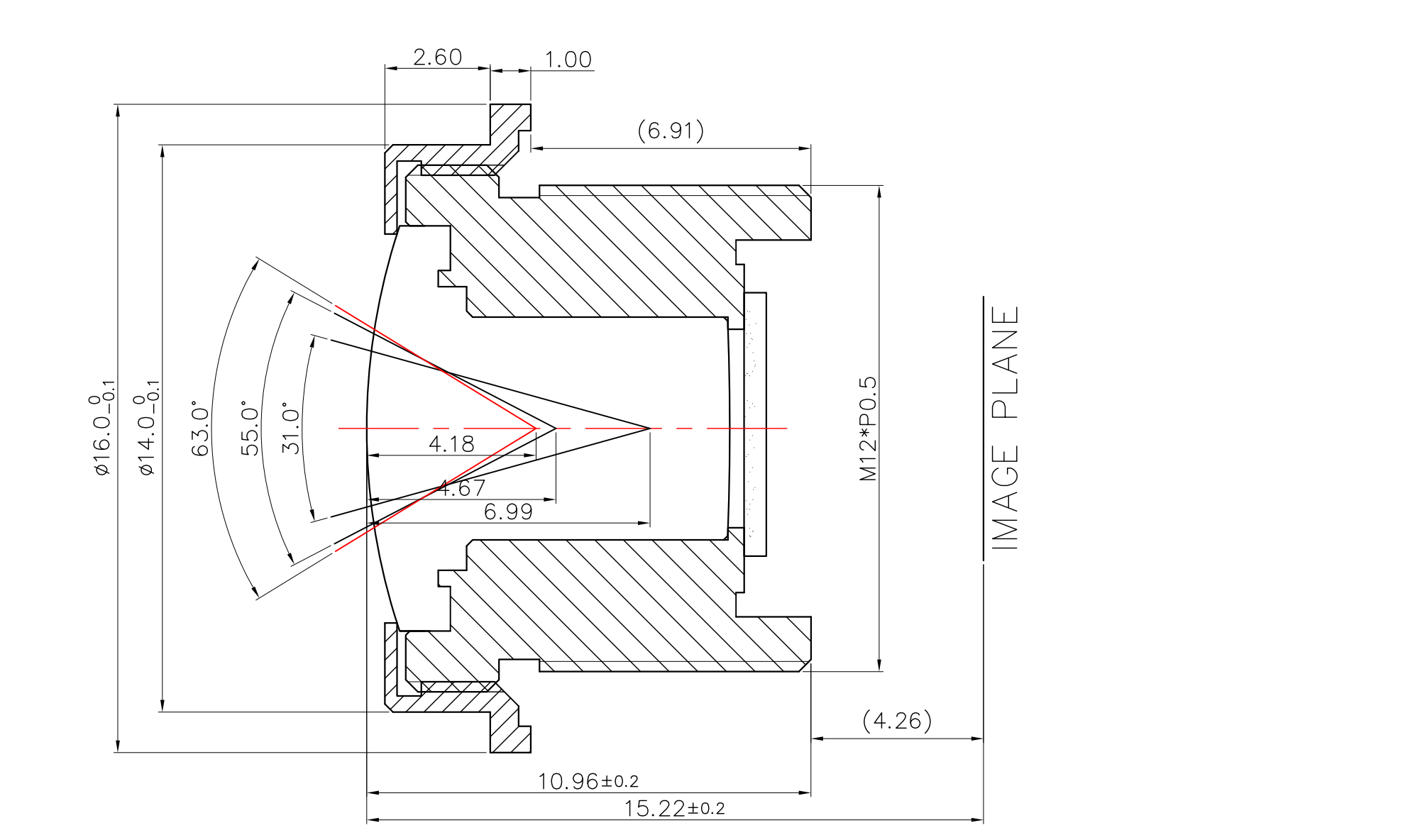

• Nontower metal holder, compact TTL 15.22mm, easy hidden installation

1. CMS Electronic Side Mirror: Truck/bus replacement digital rearview camera lens
2. BSD Blind Spot Detection: Commercial vehicle side blind zone monitoring module
3. Coach & Logistics Van: Long-distance rear lane observation camera
4. Heavy Machinery: Engineering vehicle wide-range side safety monitoring
5. New Energy Bus: ECE R46 certified electronic mirror camera parts

Optical parameter customization .We customize focal length, aperture, FOV, lens structure, distortion, CRA, filter, coating and image circle to match all mainstream CMOS sensors for surround view and surveillance cameras.
Mechanical structure customization.We customize barrel TTL, front diameter, waterproof grade, mount holder, back focal length, focus range and wide-temperature resistant housing.
OEM brand & appearance customization.We offer laser logo engraving, customized barrel colors and exclusive private model codes for OEM branding.
Packaging customization.We customize nner bags, export cartons and branded color boxes with multi-language instructions available.
