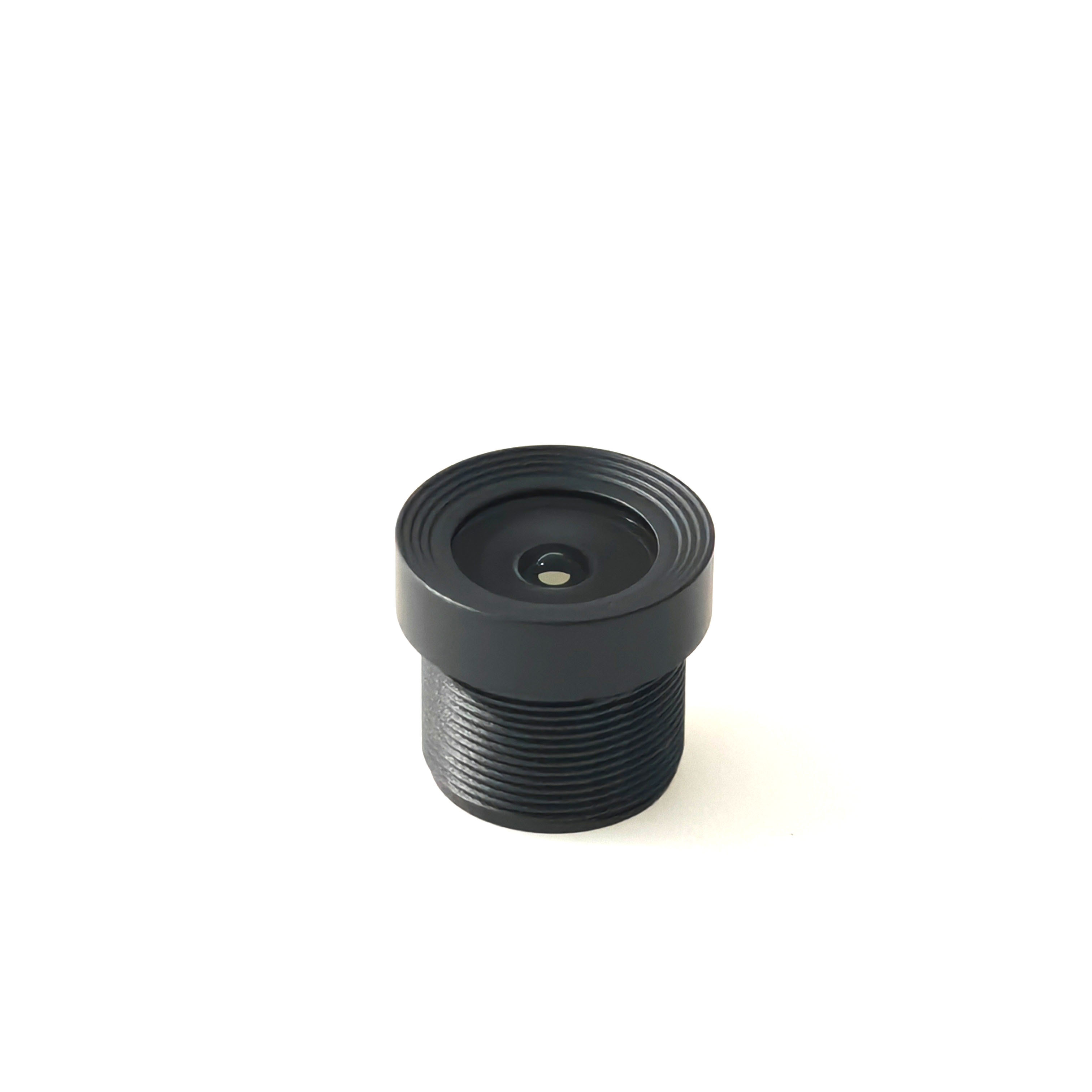

Low Distortion M12 CCTV Lens 2.8mm F1.8 High Relative Illumination Indoor Smart Pet Baby Monitor
Low Distortion M12 CCTV Lens 2.8mm F1.8 High Relative Illumination Indoor Smart Pet Baby Monitor
Low Distortion M12 CCTV Lens 2.8mm F1.8 High Relative Illumination Indoor Smart Pet Baby Monitor
Low Distortion M12 CCTV Lens 2.8mm F1.8 High Relative Illumination Indoor Smart Pet Baby Monitor
Low Distortion M12 CCTV Lens 2.8mm F1.8 High Relative Illumination Indoor Smart Pet Baby Monitor
Low Distortion M12 CCTV Lens 2.8mm F1.8 High Relative Illumination Indoor Smart Pet Baby Monitor
Low Distortion M12 CCTV Lens 2.8mm F1.8 High Relative Illumination Indoor Smart Pet Baby Monitor
Low Distortion M12 CCTV Lens 2.8mm F1.8 High Relative Illumination Indoor Smart Pet Baby Monitor
Low Distortion M12 CCTV Lens 2.8mm F1.8 High Relative Illumination Indoor Smart Pet Baby Monitor
Low Distortion M12 CCTV Lens 2.8mm F1.8 High Relative Illumination Indoor Smart Pet Baby Monitor
Low Distortion M12 CCTV Lens 2.8mm F1.8 High Relative Illumination Indoor Smart Pet Baby Monitor
Low Distortion M12 CCTV Lens 2.8mm F1.8 High Relative Illumination Indoor Smart Pet Baby Monitor
Specifications
Sensor Size :
1/4" SC132GS
MAX Image circle :
6.8mm
Optical Back Focal Length :
4.15mm
Distortion :
Low Distortion
Model Number :
OKS-3601-B4
MOQ :
100 PCS
Lens Structure :
2G2P
Certification :
CE,ISO
Flange Back Focal Length :
3.53mm
Supply Ability :
100K Pcs/month
TTL :
15.55mm
Application :
Pet Baby Monitor
F No :
F1.8
Focal Length :
2.8mm
Place of Origin :
CHINA
Price :
Negotiable Price Based On Qty
FOV :
D:83°,H:54°,V:62°
Brand Name :
OKSEE
Delivery Time :
Sample Within 7 Days
Description
Product Description:

OKS-3601‑B4‑650 is a high‑performance M12 fixed focal lens specially optimized for indoor pet camera, baby monitor and smart home IP camera. It adopts compact 2G2P optical structure, compatible with 1/4" SC132GS sensor.

Low‑6% F‑Tan distortion delivers natural, undistorted picture for pet activity monitoring. F1.8 large aperture ensures good image brightness under dim indoor environment. High relative illumination up to 80% keeps corner brightness uniform, avoids dark corners.

Compact total length TTL 15.55mm±0.3 fits compact camera housing. Working temperature‑20℃~+70℃ meets long‑term indoor smart‑home running requirements. Widely used for pet surveillance camera, baby monitor, indoor home security camera and other smart‑home vision modules.

Features:
  1. M12*P0.5 standard mount, perfectly matched with 1/4" SC132GS sensor for pet & baby monitor camera
  2. 83° diagonal FOV(H:54°, V:62°), max image circle Φ6.8mm
  3. 2G2P compact optical structure,-6% low distortion for true-to-life scene reproduction
  4. F1.8 large aperture, great low-light performance for indoor day-night pet monitoring
  5. CRA＜18.5°, high 80% relative illumination, bright and uniform image across corners
  6. Compact TTL 15.55mm±0.3, space-saving for small-size camera module
  7. Operating temperature-20℃~+70℃, stable for indoor smart home application
Technical Parameters:
TTL15.55mm
Operating Temperature-20°C ~ +70°C
Optical Back Focal Length4.15mm
MAX Image Circle6.8mm
Sensor Size1/4" SC132GS
F NoF1.8 ±5%
Focal Length2.8mm ±5%
FOVD: 83°, H: 54°, V: 62°
CRA<18.5°
Optical Distortion-6%
Applications:
  1. Smart pet camera / pet monitoring camera
  2. Baby monitor indoor surveillance camera
  3. Indoor home security IP camera
  4. Smart home visual monitoring equipment
  5. Mini indoor monitoring camera module
Customization:
Optical parameter customization .We customize focal length, aperture, FOV, lens structure, distortion, CRA, filter, coating and image circle to match all mainstream CMOS sensors for surround view and surveillance cameras.
Mechanical structure customization.We customize barrel TTL, front diameter, waterproof grade, mount holder, back focal length, focus range and wide-temperature resistant housing.
OEM brand & appearance customization.We offer laser logo engraving, customized barrel colors and exclusive private model codes for OEM branding.
Packaging customization.We customize nner bags, export cartons and branded color boxes with multi-language instructions available.

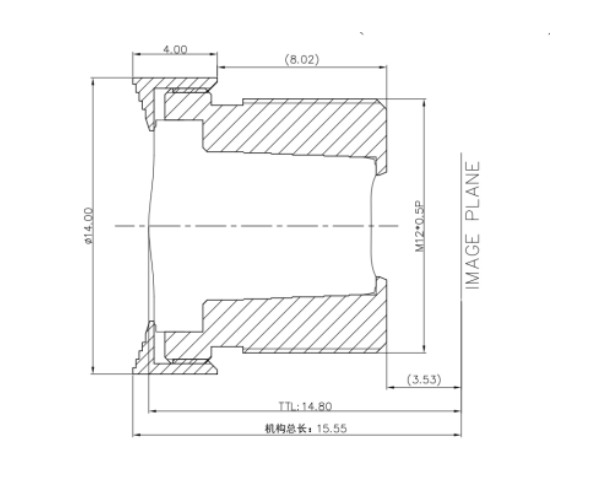

Lens Drawing:
Low Distortion M12 CCTV Lens 2.8mm F1.8 High Relative Illumination Indoor Smart Pet Baby Monitor
Sensor Solution:

1/2.7" AR0237 (1920*1088) HFOV : 116 °, VFOV: 60 °,DFOV: 145 °
1/2.8" IMX307(1920*1080) HFOV : 110 °, VFOV: 58 °,DFOV: 136 °
1/2.9" GC2053 (1920*1080) HFOV : 106 °, VFOV: 56 °,DFOV: 129 °
1/3" H65(1280* 720 ) HFOV : 92 °, VFOV: 50 °,DFOV: 109°
1/4" JX-H62 (1280 *720) HFOV : 72°, VFOV: 40 °, DFOV: 87 °
