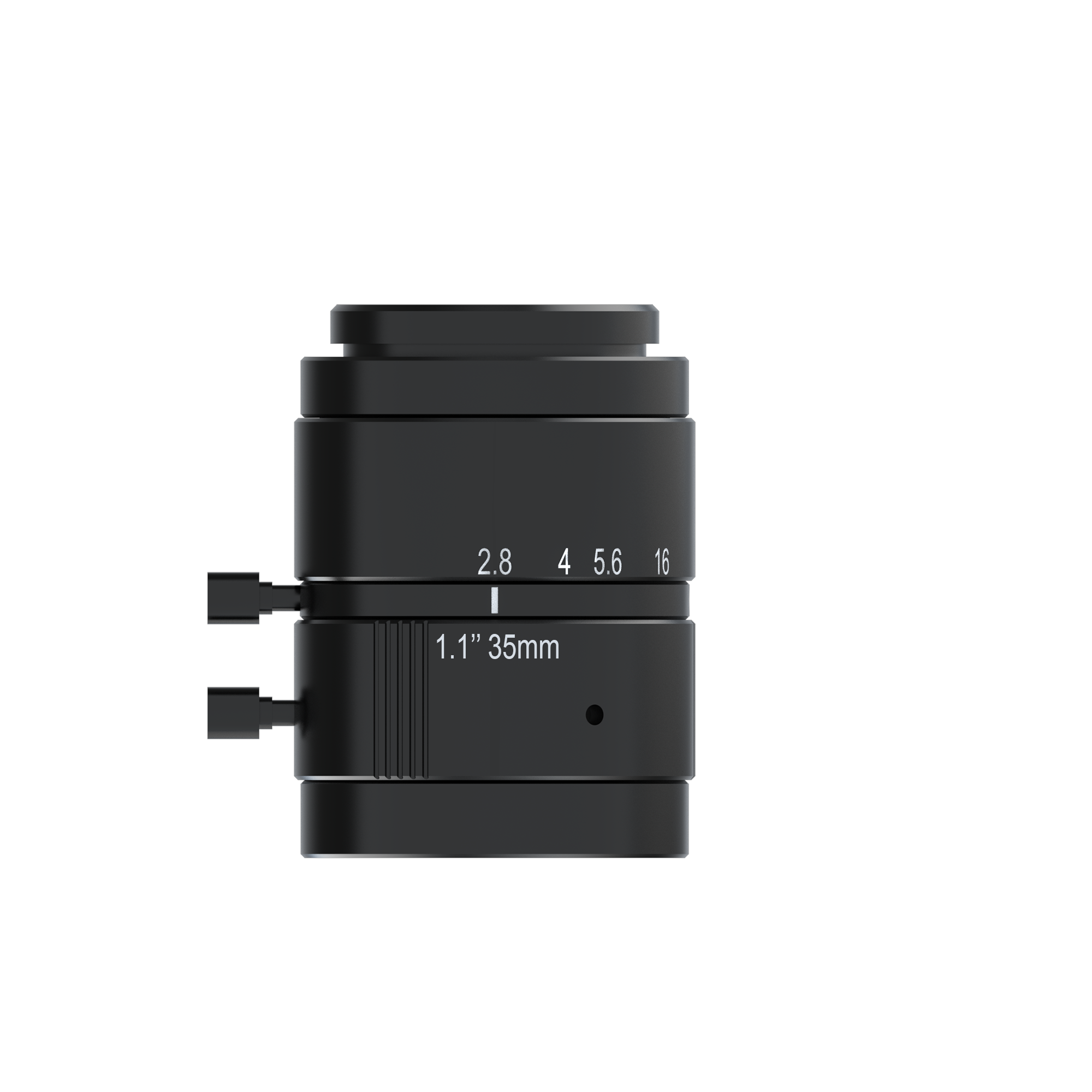

ZK-FA-1035-2816 is high-performance 20MP fixed-focus FA industrial C-mount lens, specially developed for machine-vision inspection, factory automation, surface defect detection and high-precision dimensional-measurement systems.

Designed for 1.1-inch large-format CMOS/CCD industrial sensor, it realizes full-format 20MP high-definition imaging. Manual adjustable iris (F2.8-16) and locking-type focus ring can lock aperture and focus position effectively, preventing parameter drift caused by equipment vibration on production-line. Multi-layer broadband anti-reflection coating greatly improves light transmittance and suppress ghost-image and stray-light interference.

Equipped with M27*P0.5 filter thread, users can match various optical filters to adapt complex on-site lighting environment. Wide working-distance from 90mm to 1010mm provides multiple optical magnification choices, meeting diversified installation-distance requirements. Rugged all-metal anti-vibration structure guarantees stable long-time operation. It is widely used for automated assembly-line detection, electronic component inspection, visual positioning and robot-vision OEM mass-production.

• Standard C-Mount interface, optimized for 1.1-inch large-format sensor , supports 20MP high-resolution industrial machine-vision camera
• 35mm fixed focal length, manual adjustable iris F2.8-16 with locking screw, manual lock-able focus ring for field-site anti-shift debugging
• Multi-layer broadband anti-reflection coating, high light transmittance, excellent center-to-edge resolution for precision inspection
• M27*P0.5 filter thread, convenient to install UV-IR-cut, polarizing filters for complex production-line lighting conditions
• Wide working-distance range 90-1010mm, rich optical magnification options, fit multi-scene industrial measurement requirements
• All-metal rugged mechanical housing, anti-vibration & anti-shock structure, stable for long-time continuous automation-equipment running
• Compact overall dimension Φ31x38.5mm, standard C-mount flange back 17.526mm, compatible with mainstream industrial cameras

1. Machine-Vision Inspection: Surface defect detection, part dimensional measurement, high-precision visual inspection
2. Factory Automation: Assembly-line positioning, robot visual guidance, automatic sorting equipment
3. Electronic Quality Control: PCB inspection, chip & electronic component appearance checking
4. Laboratory & Scientific Imaging: High-precision image acquisition, optical test equipment
5. Industrial On-line Monitoring: Equipment status monitoring, product appearance snapshot

• Optical parameter customization .We customize focal length, aperture, FOV, lens structure, distortion, CRA, filter, coating and image circle to match all mainstream CMOS sensors for surround view and surveillance cameras.
• Mechanical structure customization.We customize barrel TTL, front diameter, waterproof grade, mount holder, back focal length, focus range and wide-temperature resistant housing.
• OEM brand & appearance customization.We offer laser logo engraving, customized barrel colors and exclusive private model codes for OEM branding.
• Packaging customization.We customize nner bags, export cartons and branded color boxes with multi-language instructions available.

Each Machine Vision Lens is carefully packaged to ensure maximum protection during transit. The lens is first wrapped in anti-static foam and placed inside a custom-fitted, shock-absorbent box to prevent any damage from impacts or vibrations.

All packaging materials are designed to be eco-friendly and recyclable. The outer box is clearly labeled with handling instructions and product details to facilitate safe and efficient shipping.

We offer multiple shipping options to meet your delivery needs, including standard, expedited, and overnight services. Tracking information will be provided once your order has been dispatched.

For international shipments, all necessary customs documentation will be prepared and included to ensure smooth clearance.

Your satisfaction is our priority, and we strive to deliver your Machine Vision Lens promptly and in perfect condition.
