Triplex Mud Pump Valve Seat Puller Assembly
Triplex Mud Pump Valve Seat Puller Assembly
Specifications
Brand Name :
EASTLAND
Certification :
API-7K
Place of Origin :
Weifang,China
MOQ :
1 pcs
Price :
USD 20-50
Payment Terms :
T/T
Supply Ability :
5000 pcs/month
Delivery Time :
5-8 days
Packaging Details :
wooden case
Description

Eastland's hydraulic valve seat puller is designed to safetely and efficiently remove valve seats from drilling mud pumps. The components are made from premium forged along a throughout heat trreatment for center stem and nut in order to sustain high pulling force without mechnical yielding. The valve seat pullers are avaliable for three-wen seat, four-web seat and full open seat. Eastland also offers mechanical valve seat pullers accoding to customer's request.

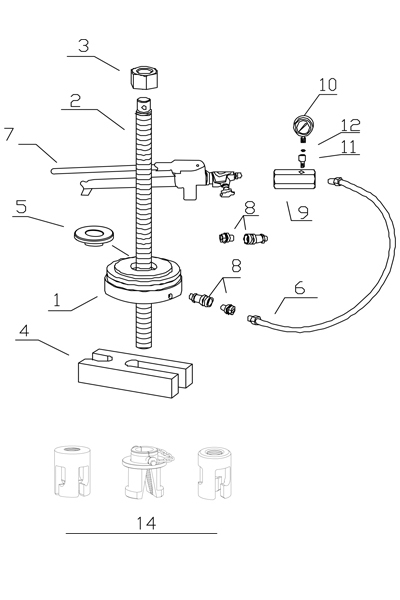

Triplex Mud Pump Valve Seat Puller Assembly
Item Description Qty.
1 Hydraulic Jack 1
2 Center Stem 1
3 Center Stem Nut 1
4 Puller H-Bar 1
5 Center Bushing 1
6 Hydraulic Hose,3/8" NPT Both EndxLG3000mm 1
7 Hydraulic Pump,10000psi,3/8"-18NPT-2A 1
8 3/8" -NPT Coupler 2
9 Gauge Adapter 1
10 Gauge 0-14K psi(100MPa) 1
11 1/4"-NPT Male Adapter, M12X1.5 1
12 Seal Mat φ12 1
13 Carrying Case 1
14 Puller Heads 3"-7" 60Ton 1

Features

  1. Eastland's puller can excert a force over 200000 pounds
  2. Compatible to API 3# to API 9# valve seats
  3. Center stem and nut are made by high stength steel with a throughout heat treatment
  4. Self-sealing quick disconnect couplings are designed to fit all fluid connectors for quick installation
  5. Base H-bar is welded with two handles for easy handling
  6. Both hydraulic and mechanical puller units are available
  7. Customerized puller is available
