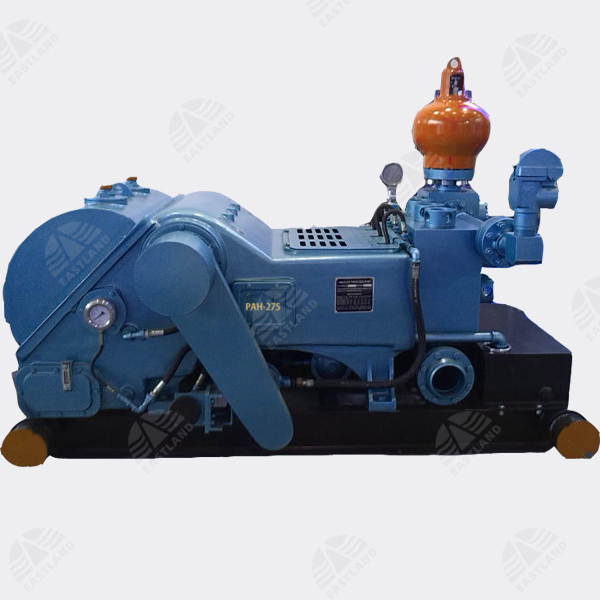

EPAH-275 Triplex Drilling Mud Pump
EPAH-275 Triplex Drilling Mud Pump
Specifications
Brand Name :
EASTLAND
Model Number :
EW446
Certification :
API 7K
Place of Origin :
WEIFANG,CHINA
MOQ :
1 set
Price :
USD 30000-50000
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
20-30 days
Packaging Details :
Container
Description

EPAH-275 Pump can be widely used in all kinds of works in oil field.

Specifications
Rated Input Power Rated Pump Speed Stroke Gear Ratio
275 HP 175 SPM 8" 4.7:1
Max. Liner Size Rod Load Weight
5" 22030 lbs 9800lbs
Performance
Liner Size(in) 5 4-1/2 4 3-1/2 3-1/4 3
Reated Pressure psi 1122 1386 1753 2290 2657 3118
Pump Speed SPM Jack Shaft RPM Displacement, GPM
175 823 357 289 228 175 151 128
Volume/Stroke, Gallons 2.04 1.65 1.31 1.00 0.862 0.734

Ratings are based on 90% mechanical efficiency and 100% volumetric efficiency.

Standard Features
  • Nodular iron power frame, eccentric, connection rods, and crossheads
  • Double-row-spherical roller bearnings carry eccentric
  • Double extended Jackshaft carried on heavy-duty straight roller bearings
  • Dual roller bearing connecting rod
  • Heat-treated alloy steel main gears are bolted to the eccentric
  • Replaceable bronze crosshead slides
  • Full splash lubrication, with oil pump to feed working parts
  • Heat-treated alloy steel, interchangeable fluid cyclinders
  • Three-rib API-7 urethane insert valves and seats
  • Replaceable-type element oil filter and oil pressure gauge
  • Threaded valve covers
  • Plated piston rods
  • Complete piston washing and lubrication system
  • The monoblock forging of hollow sphere for the pulsation damperer is first made in China
