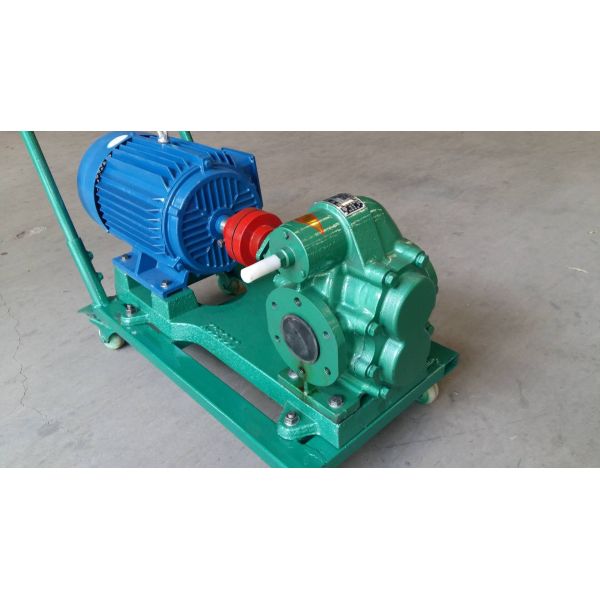

KCB series Movable Gear Oil transfer pump for transfer Lubricating oil crude oil diesel oil

Application Scope

• Various Lubricating oil: crude oil, diesel oil, lubricants, oil-type liquid.
• With copper gear can transmit low flash point liquid, such as gasoline, benzene.
• Using stainless steel can pump weak corrosive liquid and food beverage.
• Normally temperature of liquid should not be over 70 degree Celsius . If requested 300 C, we can make the anti high temperature oil pump for customers.
• It can give performance as transfer pump or booster pump in oil delivery system.
• It can be also applied as a fuel pump for delivery system,pressurization and injection in fuel supply system and in all industry fields as lubricating pump.

KCB series gear oil transfer pump​ Structure Features

1. KCB series gear oil transfer pump are mainly composed of gears,axles pump body,pump,cap safety valve and axle-end seals etc.The heat treated gears have the advantage of higher hardness and intensity,and rotate with the axles inside the replaceable bearing sleeves.All of pump's parts can be lubricated by delivered medium when working.
2. KCB series gear oil transfer pump also designed with safety valve for protection against overload.The full return flow pressure of the safety valve is 1.5times higher than the rated exhaust pressure of the pump.
3. KCB series gear oil transfer pump can be also adjusted within the allowance of exhaust pressure range according to circumstances .
4. KCB series gear oil transfer pump is properly designed with leakage and return chute,which lets the gears bear the least torque force and reduces load and wear on bearings bear the least torque force and reduces load and wear on bearings in order to raise pump's efficiency.

Technical Parameters:
