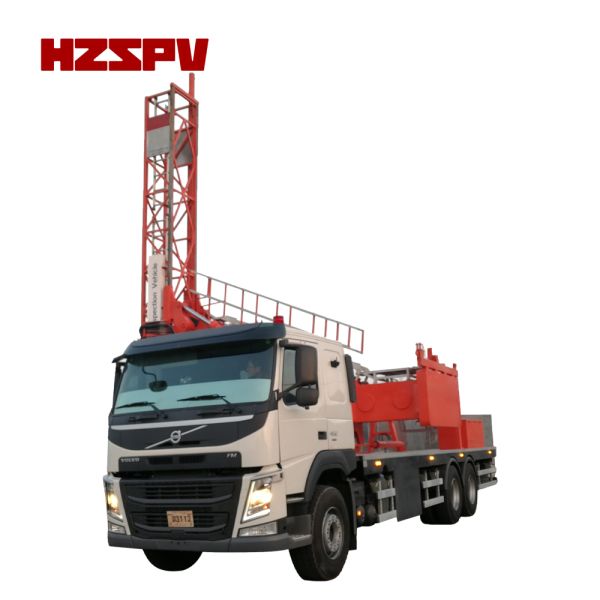

17M Bridge Inspection Truck Designed For Trestles And Viaducts bridges
17M Bridge Inspection Truck Designed For Trestles And Viaducts bridges
17M Bridge Inspection Truck Designed For Trestles And Viaducts bridges
17M Bridge Inspection Truck Designed For Trestles And Viaducts bridges
17M Bridge Inspection Truck Designed For Trestles And Viaducts bridges
17M Bridge Inspection Truck Designed For Trestles And Viaducts bridges
Specifications
Brand Name :
HSA
Model Number :
HSA5319JQJ
Certification :
ISO9001, CCC
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
150 sets per year
Delivery Time :
90 days
Packaging Details :
lude
horizontal working range under bridge :
17m
related load capacity of working platform :
300kg/600kg
Erecting time :
Within 5 Minutes
Self Propelled :
with transfer box
road occupation :
Single Lane Operation
specification crossing sidewalk :
3.5m
Specification soundbarrier :
4.8m
Description

Bridge Inspection Truck Designed For A Wide Variety Of Bridges, Trestles And Viaducts

  1. Specifications:
Structure type of bridge inspection vehicle Platform type
Max. Horizontal working range 17M (72’)
Max. vertical working depth 8000mm (26’)
Width of work platform 1080mm
Max. load on Truss platform 600KG (1763lb)
Max. load on telescopic Truss platform 300KG(881lb)
Max. Width of sidewalk spanning 3000mm (9.8’)
Max. height of guardrail spanning 4200mm (14.5’)
The 1st rotation angle scope 0~90°
The 2nd rotation angle scope 0~1800
Max. amble travelling speed 15m/min
Operation Mode Wireless Remoter , Panel, Emergency manual
Drive system Two drive system: PTO and gasoline generator
Amble self travelling device Transfer case instead of amble motor
Chassis Volvo FM450 64R B
G.V.W 28000KG
Overall dimensions 11560(L)×2500(W)×4000 (H)mm

17M Bridge Inspection Truck Designed For Trestles And Viaducts bridges

This platform type bridge inspection truck is can provide a working platform during the inspection processing and can be equipped with different chassis for mobile inspection or maintenance for all bridges.

It ensures that the staff can be quickly and safely transported to every inspection part of the bridge, including any positions on the bridge, under bridge, bridge pier, etc.

Idea for all under-bridge project: inspections, repairs, stripping operations, painting and sandblasting, general underbridge maintenance, bearing replacement, installation and replacement of under-bridge pipelines and cables.
17M Bridge Inspection Truck Designed For Trestles And Viaducts bridges

3. Market

Our Bridge Inspection Vehicles have been exported to South Korea, Brunei, Malaysia, Vitenam, Maldives, Indonisia and etc.

4. kindly watch our vedio by the below youtube link.

Platform type MBIU: https://www.youtube.com/watch?v=IyyTuEgFubo&feature=youtu.be

Bucket type: https://www.youtube.com/watch?v=dXxARhbfV8I&feature=youtu.be
