198-22-23480 1982223480 SEAL,RING FOR KOMATSU BULLDOZERS D475ASD
198-22-23480 1982223480 SEAL,RING FOR KOMATSU BULLDOZERS D475ASD
198-22-23480 1982223480 SEAL,RING FOR KOMATSU BULLDOZERS D475ASD
198-22-23480 1982223480 SEAL,RING FOR KOMATSU BULLDOZERS D475ASD
Specifications
Brand Name :
OUB
Model Number :
198-22-23480
Certification :
ISO 9001
Place of Origin :
China
MOQ :
10 Pcs/Accept trial order
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000Pcs
Delivery Time :
Within 5-15 days after getting your desposit
Packaging Details :
PP Bag Inside.outer is carton with film wrapped.
Part no. :
198-22-23480
Model :
D475ASD
Machine :
Bulldozers
Size :
OEM
Name :
SEAL RING
Cylinder :
POWER TRAIN,STEERING CLUTCH
Temperature :
+260℃
Material :
PTFE
Color :
Dark grey
Description

1. Quick Details of lip seal 198-22-23480 :

Part NO. 198-22-23480
Machine D475ASD
Size OEM
Material PTFE
Oil seal type RING,SEAL

2. 198-22-23480 parts on group :

198-22-23480 1982223480 SEAL,RING FOR KOMATSU BULLDOZERS D475ASD

NO. PART NO. PART NAME QTY
198-22-00105 CLUTCH AND BRAKE A. 2
1 198-22-23270 HOUSING 1
2 198-22-63221 HUB 2
2 198-22-63220 HUB 2
3 198-22-69510 RING 1
4 01010-61650 BOLT 24
5 01643-31645 WASHER 24
6 198-22-23160 PISTON 1
7 562-15-19230 RING,SEAL 1
8 198-22-23250 CAGE 1
9 232-15-19220 RING,SEAL 1
10 198-22-23310 CAGE 1
11 198-09-31470 BEARING 2
12 198-22-23330 SPACER 1
13 198-22-23320 SPACER 1
14 198-22-23340 NUT 1
15 198-22-23350 LOCK 1
16 01010-80816 BOLT 2
17 198-22-23260 FLANGE 1
18 198-22-23160 PISTON 1
19 562-15-19230 RING,SEAL 1
20 198-22-63130 CAGE 1
21 232-15-19220 RING,SEAL 1
22 198-09-31460 BEARING 1
23 198-09-31470 BEARING 1
24 198-22-23461 SLEEVE 1
25 07000-75160 O-RING 3
26 198-22-23480 RING,SEAL 3
27 07000-73022 O-RING 4
28 07000-75290 O-RING 2
29 198-22-69640 O-RING 2
30 198-22-25140 O-RING 2
31 01010-81245 BOLT 6
32 01643-31232 WASHER 6
33 198-22-23120 COVER 2
34 198-22-25140 O-RING 2
35 01010-61685 BOLT 24
36 01643-31645 WASHER 24
37 198-22-22351 SHAFT 1

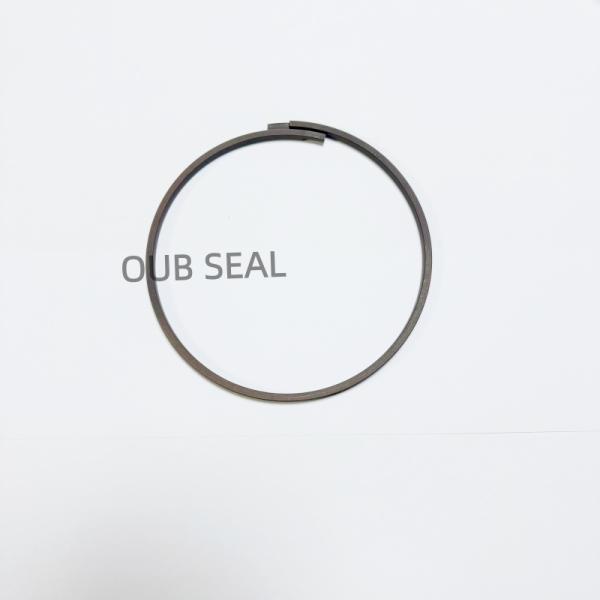

3. 198-22-23480 picture:

198-22-23480 1982223480 SEAL,RING FOR KOMATSU BULLDOZERS D475ASD

4. Service ring part no. :

PART NO. PART NO. Part NO.
198-22-23480 19M-15-19210 195-15-05630
195-15-29280 195-15-49530 131-27-05501
195-15-29210 113-40-31160 178-63-22460
195-15-39260 232-15-19210 198-22-23140

195-15-29230

 04071-00230 125-15-22710
195-15-29220 04077-00160 113-15-12270

5. FAQ

Q: Can I know what is PTFE material ?

A: Of course! The most widely recognized brand name for PTFE is Teflon.Let's break down what PTFE is, from a simple explanation to its fascinating details.

Key Properties (Why is it so special?)

  • Extremely Low Friction: PTFE has one of the lowest coefficients of friction of any known solid material. This is what makes it so slippery and non-stick. Things just slide right off it.
  • Excellent Chemical Resistance: It is almost completely inert. It doesn't react with most chemicals, including strong acids, bases, and solvents. This makes it ideal for containers and pipes in chemical plants.
  • High Heat Resistance: It can operate continuously at temperatures up to 260°C (500°F) and for short periods at much higher temperatures without degrading.
  • Excellent Electrical Insulation: It is a great electrical insulator, even at high frequencies, making it perfect for wiring in aerospace and computer applications.
  • Hydrophobic: It repels water completely. Water beads up and rolls off its surface.
  • Non-Toxic: In its solid form, it is biologically inert, which is why it's approved for use in medical implants and food processing equipment.

Q: How to distinguish the quality of PTFE material ?

A: Here are some tips :

  • Color and Purity: High-quality virgin PTFE should be a clean, uniform white. Any discoloration, cloudiness, or inconsistent tones could indicate that the material contains reprocessed scrap or impurities.
  • Surface Finish: The surface should be smooth, consistent, and free of defects like cracks, scratches, voids, or burrs. These imperfections can lead to premature wear and tear.
  • Dimensional Accuracy: Good PTFE parts will meet precise dimensional tolerances. Use calipers or micrometers to check that the inner diameter, outer diameter, and wall thickness are consistent and match the manufacturer's specifications.

6. Exhibition & Warehous

198-22-23480 1982223480 SEAL,RING FOR KOMATSU BULLDOZERS D475ASD

198-22-23480 1982223480 SEAL,RING FOR KOMATSU BULLDOZERS D475ASD

198-22-23480 1982223480 SEAL,RING FOR KOMATSU BULLDOZERS D475ASD

Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
