14X-15-19210 14X1519210 RING,SEAL KOMATSU D85EX,WA500-7
14X-15-19210 14X1519210 RING,SEAL KOMATSU D85EX,WA500-7
14X-15-19210 14X1519210 RING,SEAL KOMATSU D85EX,WA500-7
14X-15-19210 14X1519210 RING,SEAL KOMATSU D85EX,WA500-7
Specifications
Brand Name :
OUB
Model Number :
14X-15-19210
Certification :
ISO 9001
Place of Origin :
China
MOQ :
10 Pcs/Accept trial order
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000Pcs
Delivery Time :
Within 5-15 days after getting your desposit
Packaging Details :
PP Bag Inside.outer is carton with film wrapped.
Part no. :
14X-15-19210
Model :
D85EX,WA500-7
Machine :
Bulldozers,dump trucks
Size :
OEM
Name :
SEAL RING
Cylinder :
POWER TRAIN,STEERING CLUTCH
Temperature :
+260℃
Material :
PTFE
Color :
Dark grey
Description

1. Quick Details of seal 07018-31907 :

Part NO. 14X-15-19210
Machine D85EX,WA500-7
Size OEM
Material PTFE
Oil seal type RING,SEAL

2. 14X-15-19210 parts on group :

14X-15-19210 14X1519210 RING,SEAL KOMATSU D85EX,WA500-7

NO. PART NO. PART NAME QTY
154-22-60060 Power Train Assembly 1
154-15-61002 Transmission Assembly 1
1 154-15-61171 Housing 1
2 145-14-11320 Plug 1
3 113-15-12870 Seal Ring, (Kit : K02) 1
4 562-15-19220 Seal Ring, (Kit : K02) 1
5 154-15-62740 Piston 1
6 113-15-12870 Seal Ring, (Kit : K02) 1
7 154-15-62730 Piston 1
8 144-15-22881 Seal Ring, (Kit : K02) 1
9 145-14-12780 Spring 10
10 04020-01434 Pin, Dowel 2
11 425-15-22820 Plate 5
12 424-15-12711 Disc 5
13 154-15-61181 Housing 1
14 175-15-11230 Plug 1
15 14X-15-19210 Seal Ring 1
16 04077-00150 Ring, Snap 1
17 145-14-11571 Washer 4
18 232-15-11240 Bolt 4
19 134-15-62370 Cover 1
20 14X-15-19210 Seal Ring 1
21 06000-06924 Bearing 1
22 04070-00120 Ring, Snap 1
23 01252-41060 Bolt 4
24 01643-51032 Washer 4
25 154-15-61132 Housing 1
26 154-15-62350 Carrier 1

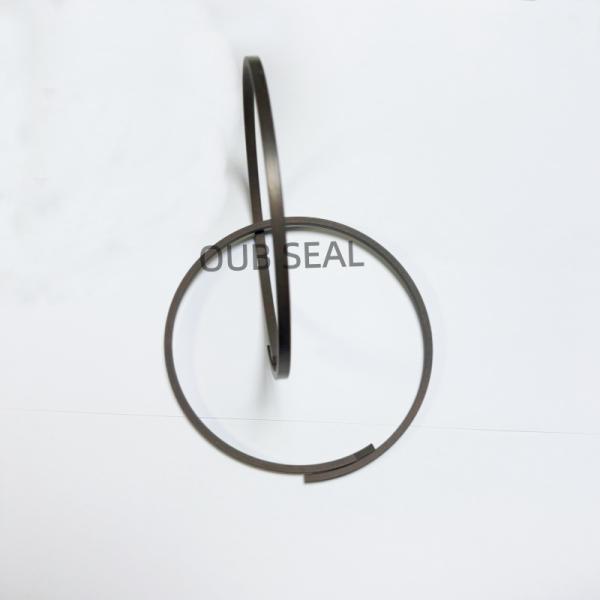

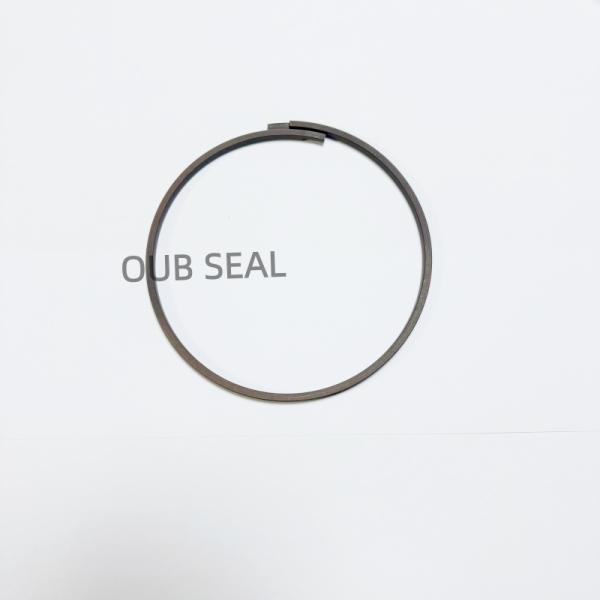

3. 14X-15-19210 picture:

14X-15-19210 14X1519210 RING,SEAL KOMATSU D85EX,WA500-7

4. Service ring part no. :

PART NO. PART NO. Part NO.
14X-15-19210 134-50-61160 134-32-61160
14X-15-19220 195-15-39510 134-54-62940
134-54-66230 07012-10140 04069-02202
134-50-62160 07145-10075 195-13-11720

134-54-62950

 04064-09530 04065-01240
134-54-61280 04065-04818 04064-01030

5. FAQ

Q: Can I know what is PTFE material ?

A: Of course! The most widely recognized brand name for PTFE is Teflon.Let's break down what PTFE is, from a simple explanation to its fascinating details.

Key Properties (Why is it so special?)

  • Extremely Low Friction: PTFE has one of the lowest coefficients of friction of any known solid material. This is what makes it so slippery and non-stick. Things just slide right off it.
  • Excellent Chemical Resistance: It is almost completely inert. It doesn't react with most chemicals, including strong acids, bases, and solvents. This makes it ideal for containers and pipes in chemical plants.
  • High Heat Resistance: It can operate continuously at temperatures up to 260°C (500°F) and for short periods at much higher temperatures without degrading.
  • Excellent Electrical Insulation: It is a great electrical insulator, even at high frequencies, making it perfect for wiring in aerospace and computer applications.
  • Hydrophobic: It repels water completely. Water beads up and rolls off its surface.
  • Non-Toxic: In its solid form, it is biologically inert, which is why it's approved for use in medical implants and food processing equipment.

Q: How to distinguish the quality of PTFE material ?

A: Here are some tips :

  • Color and Purity: High-quality virgin PTFE should be a clean, uniform white. Any discoloration, cloudiness, or inconsistent tones could indicate that the material contains reprocessed scrap or impurities.
  • Surface Finish: The surface should be smooth, consistent, and free of defects like cracks, scratches, voids, or burrs. These imperfections can lead to premature wear and tear.
  • Dimensional Accuracy: Good PTFE parts will meet precise dimensional tolerances. Use calipers or micrometers to check that the inner diameter, outer diameter, and wall thickness are consistent and match the manufacturer's specifications.
