ZGAQ-02912 Ring Cassette Oil Seal Kits For Wheel Excavator Hyundai R140W Front Axle Output Group
ZGAQ-02912 Ring Cassette Oil Seal Kits For Wheel Excavator Hyundai R140W Front Axle Output Group
ZGAQ-02912 Ring Cassette Oil Seal Kits For Wheel Excavator Hyundai R140W Front Axle Output Group
ZGAQ-02912 Ring Cassette Oil Seal Kits For Wheel Excavator Hyundai R140W Front Axle Output Group
ZGAQ-02912 Ring Cassette Oil Seal Kits For Wheel Excavator Hyundai R140W Front Axle Output Group
ZGAQ-02912 Ring Cassette Oil Seal Kits For Wheel Excavator Hyundai R140W Front Axle Output Group
Specifications
Brand Name :
CASSETTE Hyundai
Model Number :
ZGAQ-02912
Certifiion :
ISO9001
Place of Origin :
China
MOQ :
10 Pcs/Accept trial order
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000PCS+5DAY
Delivery Time :
Within 5-15 days after getting your desposit
Packaging Details :
PP Bag Inside,Carton Box Outside
OEM :
OEM:ZGAQ-02912
PART NAME :
RING-CASSETTE
OD SIZE :
SIZE:150mm
Material :
RUBBER and metal
Apliion :
WHEEL LOADERS HYUNDAI
Temp Range :
-20 to +110°
Colour :
black
Machine part :
FRONT AXLE OUTPUT GROUP
Machine :
WHEEL LOADERS R140W R140W9 HW140 HYUNDAI
Description

1. Quick details of the products

Part No. ZGAQ-02912
Machine Hyundai WHEEL LOADERS R140W HW140
Material rubber
Oil seal type CASSETTE FRONT AXLE OIL SEAL
Color black

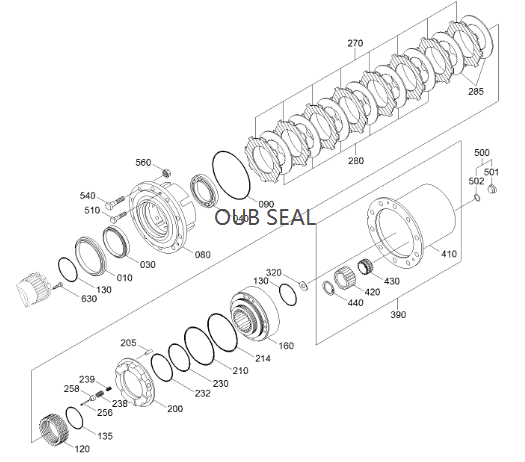

2. Parts on group AXLE OUTPUT GROUP:

ZGAQ-02912 Ring Cassette Oil Seal Kits For Wheel Excavator Hyundai R140W Front Axle Output Group

Pos. Part No Qty Parts name
10 ZGAQ-02912 [2] RING-CASSETTE
30 ZGAQ-03398 [2] BEARING-ROLLER
40 ZGAQ-02952 [2] BEARING-ROLLER
80 ZGAQ-02915 [2] HUB
90 ZGAQ-02916 [2] O-RING
120 ZGAQ-02917 [2] CARRIER-DISC
130 ZGAQ-02918 [4] O-RING
135 ZGAQ-02919 [2] O-RING
160 ZGAQ-02920 [2] GEAR-RING
200 ZGAQ-02921 [2] PISTON
205 ZGAQ-02213 [8] PIN-CYLIDRICAL
210 ZGAQ-02922 [2] U-RING
214 ZGAQ-02923 [2] RING-SUPPORT
230 ZGAQ-02924 [2] U-RING
232 ZGAQ-02925 [2] RING-SUPPORT
238 ZGAQ-01292 [12] SPRING-COMPRESSURE
239 ZGAQ-02217 [12] SPRING-COMPRESSURE
256 ZGAQ-02219 [12] SCREW-HEX
258 ZGAQ-01291 [12] SLEEVE-SPRING
270 ZGAQ-02926 [16] DISC-O/CLUTCH
280 ZGAQ-02927 [12] DISC-I/CLUTCH(2.5)
285 ZGAQ-02928 [4] DISC-I/CLUTCH(2.0)
285 ZGAQ-02927 [4] DISC-I/CLUTCH(2.5)
285 ZGAQ-02929 [4] DISC-I/CLUTCH(3.0)
320 ZGAQ-02930 [2] WASHER-THRUST(2.5)
390 ZGAQ-02931 [2] CARRIER-PLANET
410 ZGAQ-02932 [1] CARRIER-PLANET
420 ZGAQ-02933 [3] GEAR-PLANET
430 ZGAQ-03163 [3] BEARING-ROLLER
440 ZGAQ-02935 [3] RING-RETAINER
500 @ [2] PLUG-SCREW
501 ZGAQ-02191 [1] PLUG-SCREW
502 ZGAQ-02192 [1] O-RING
510 ZGAQ-02061 [4] SCREW-HEX
540 ZGAQ-02936 [20] BOLT-WHEEL
560 ZGAQ-03164 [20] NUT-WHEEL
630 ZGAQ-02227 [2] SCREW-CAP

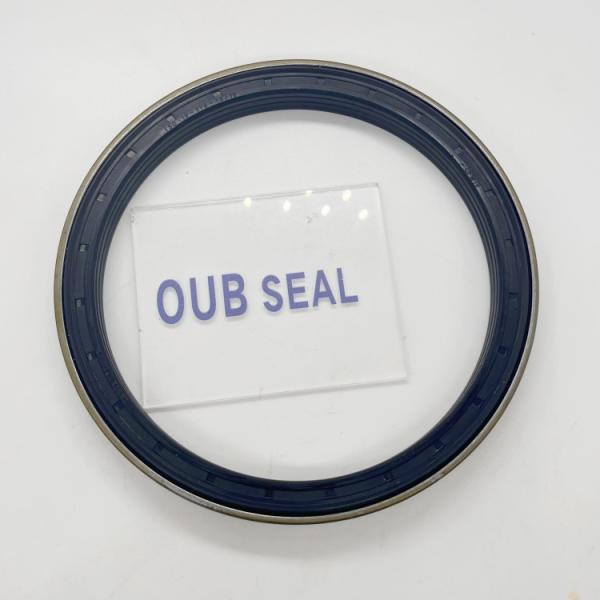

ZGAQ-02912 OIL SEAL pictures viewing:

ZGAQ-02912 Ring Cassette Oil Seal Kits For Wheel Excavator Hyundai R140W Front Axle Output Group

3. Our advantages

  • Focus on the development and manufacture of Hydraulic Seal Kits for 20 years.
  • A great number standard parts in stock.
  • We have oil seal,dust seal,rod seal,BOOM kits,ARM kits,BUCKET kits,main pump kits,hydralic seal kits etc.

4. Hyundai part No. display

part no. part no. part no. .part no.
ZGAQ-02912 8M4228 SJBN-00277 3901706
S642-095003 8M-4228 XKCC-00039 Y191-086000
3920691 308624 ZGAQ-01161 XKBF-00961
Y440-105000 0419812 ZGAQ-02909 Y240-080012
3804849 ZGAQ-01195 ZGAQ-01196 S641-110002

5. FAQ

Q: Can I believe you?

A: You can visit my website and visit our factory and office anytime.At the same time, I can visit our production workshop with you by video.

Q: Do you have a minimum order quantity?

A: Ready-made products can also be sold in one quantity.

Q: Where has your product sold to?

A: Our products have sold to America, India, Korea, Africa and other countries over the world.
