TC Type Oil Seals Mechanical Double Lip Oil Seal For Leak And Dust Prevention
TC Type Oil Seals Mechanical Double Lip Oil Seal For Leak And Dust Prevention
TC Type Oil Seals Mechanical Double Lip Oil Seal For Leak And Dust Prevention
TC Type Oil Seals Mechanical Double Lip Oil Seal For Leak And Dust Prevention
Specifications
Brand Name :
CCO
Model Number :
TC Oil Seal
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000/week
Packaging Details :
Paper+Carton Box
Lip :
Double
Color :
Gray
Type :
TC
Material :
Rubber
Working Medium :
Oil, Water, Gas
Application :
Automotive, Industrial, Agricultural
Description

TC Type Oil Seals Mechanical Double Lip Oil Seal For Leak And Dust Prevention

TC type oil seals have the following main features:

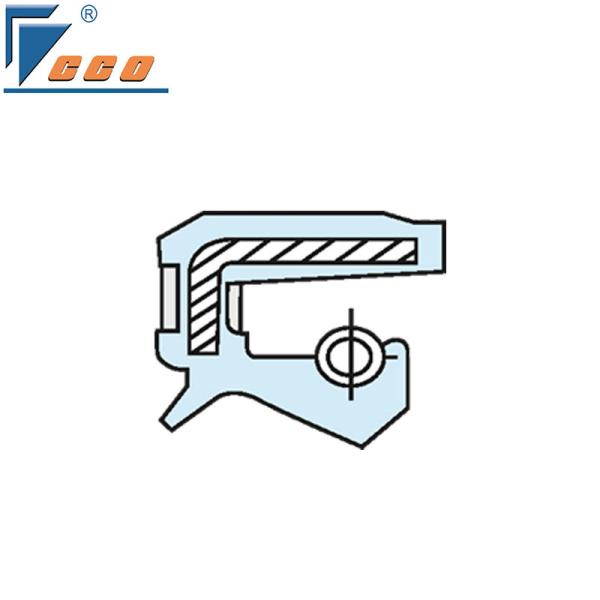

  • Double-lip sealing structure (including main lip and secondary lip), equipped with a spring. The main lip is primarily used for sealing liquids and preventing leakage; the secondary lip prevents dust, water, and other contaminants from entering the equipment interior. While maintaining basic sealing performance, it significantly enhances equipment reliability under complex operating conditions.
  • Rotary seal, suitable for low-pressure environments, with a maximum pressure of 0.03 MPa (0.3 kgf/cm²).
  • Excellent elasticity and adaptability: The rubber material itself provides the oil seal with excellent elasticity, enabling it to adapt to shaft movement and shape changes. The performance of nitrile rubber can be flexibly adjusted through formulation to suit different operating conditions, particularly suitable for sealing and vibration damping applications involving medium temperatures and contact with oil-based media. When selecting, it is necessary to match the optimal acrylonitrile content of nitrile rubber grades based on specific medium types, temperature ranges, and cost budgets.
  • Wide applicability: It provides reliable sealing in various working environments, including sealing for various rotating shafts.

Brand Name

 CCO

Original

 Hebei,China

Material

 NBR/FKM/ACM/SILICONE

Used

 Automobile Industry
Industrial Machinery
Agricultural Machinery

Sample

 Available

Size

 Standard

Features

Oil Resistance, Heat Resistance,Wear Resistance

Other Types

Type

 Features

TC

 The outer part is rubberized design, double lip with spring

SC

 The outer part is rubberized design, double lip with spring

TB

 The outer layer is an iron shell, double lip with spring

SB

 The outer layer is an iron shell, double lip with spring

TA

 The design of the inner shell combination is used to strengthen the steel of the oil seal,double lip with spring

EC

 It is mainly used for the orifice core of the oil seal and the bearing, mainly for the gear box and other parts

SA

 The design of the inner shell combination is used to strengthen the steel of the oil seal,double lip with spring

DKB

 The outer iron shell is fluted and has a dual lip dust seal.

TCN

 The exterior is iron on one side and rubber on the other, with springs on both lips

TCV

 Outer layer is rubber, inner skeleton, double lip with spring

VG

 Surface threaded, single lip without spring

VB

 Outside is iron shell, inside is rubber, single lip without spring

VC

 The outer part is rubberized, single lip without spring

Details Images

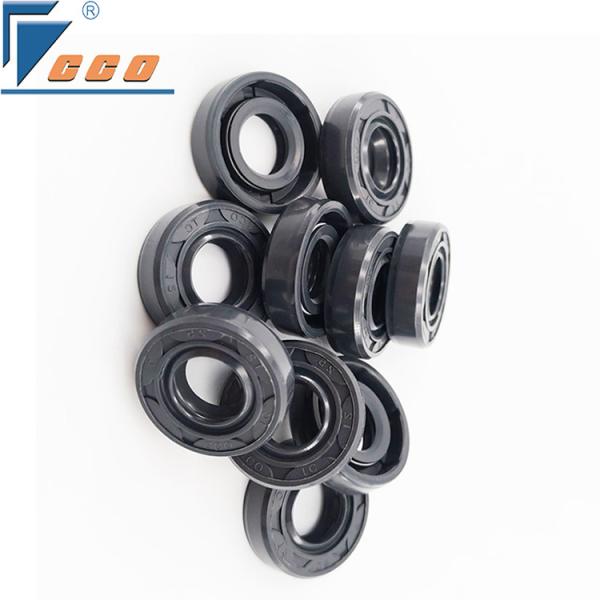

TC Type Oil Seals Mechanical Double Lip Oil Seal For Leak And Dust PreventionTC Type Oil Seals Mechanical Double Lip Oil Seal For Leak And Dust Prevention

Packaging

TC Type Oil Seals Mechanical Double Lip Oil Seal For Leak And Dust Prevention

Company Introduction

Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.
The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products. Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.
