Black Durable SB Type Oil Seal Skeleton NBR Single Lip - 40 ℃ ~ 120 ℃
Black Durable SB Type Oil Seal Skeleton NBR Single Lip - 40 ℃ ~ 120 ℃
Black Durable SB Type Oil Seal Skeleton NBR Single Lip - 40 ℃ ~ 120 ℃
Black Durable SB Type Oil Seal Skeleton NBR Single Lip - 40 ℃ ~ 120 ℃
Specifications
Brand Name :
CCO
Model Number :
SB Oil Seal
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000/week
Packaging Details :
Paper+Carton Box
Working Temperature :
-40℃ to 120℃
Seal Type :
Rotary Shaft Seal
Resistance :
Oil, Water, Dust
Installation Method :
Press Fit
Shaft Diameter :
5mm to 100mm
Spring :
One
Place :
China
Lip Type :
Single Lip
Description

Black Durable SB Type Oil Seal Skeleton Oil Seals NBR Single Lip - 40 ℃ ~ 120 ℃

Product Information

Our SB-type oil seal is an exceptional sealing product designed for harsh operating conditions. Its compact structure consists of an external single metal retainer and an internal rubber coating, with the main sealing lip and built-in spring working together to ensure effective sealing. The metal outer diameter is precision ground and features an entry chamfer for easy and convenient installation.

In terms of material, options include nitrile rubber (NBR) or fluorocarbon rubber (FKM). NBR has a working temperature range of -40°C to 120°C, while FKM can operate stably in high-temperature environments ranging from -26°C to 250°C.

Whether it's mineral oil, synthetic oil, or grease, it can handle it all with excellent sealing performance. It has good radial stiffness, especially in larger sizes, and stays stable after installation, preventing rebound. It's great for all kinds of machinery that need high sealing standards, providing a solid foundation for equipment to run smoothly.

Materials

According to the different use of media, pressure and temperature, choose different materials. Common materials include: NBR, FKM, Silicone Rubber, etc.

MATERIAL

 FEATURES Temperature

Nitrile Rubbr

(NBR)

Excellent wear resistance

Excellent aging resistance

Excellent Oil resistance

Good water resistance

Fair ozone resistance

Fair acid resistance

 -40~120°C

Fluorinated Rubber

(FKM)

Excellent wear resistance

Excellent aging resistance

Excellent Oil resistance

Good water resistance

Excellent ozone resistance

Excellent acid resistance

 -26~250°C
Silicone Rubber

Poor wear resistance

Excellent aging resistance

Poor Oil resistance

Good water resistance

Excellent ozone resistance

Fair acid resistance

 -60~225°C

Standard

Number Specifications Number Specifications
1 20*40*11 28 150*180*14
2 28*45*8 29 160*190*14
3 38*58*11 30 160*190*16
4 40*62*9 31 165*220*20
5 42*55*7 32 170*200*15
6 45*68*12 33 170*200*16
7 50*72*12 34 180*210*15
8 55*78*12 35 180*210*16
9 60*80*8 36 180*235*20
10 60*80*10 37 190*220*15
11 65*90*13 38 190*225*16
12 75*100*13 39 200*230*15
13 80*105*13 40 200*230*16
14 90*115*13 41 200*240*20
15 95*120*13 42 210*240*15
16 100*125*13 43 210*250*16
17 95*130*13 44 210*250*20
18 105*135*14 45 220*255*16
19 110*140*14 46 220*260*22
20 115*145*14 47 230*260*15
21 120*150*14 48 240*270*15
22 125*155*14 49 240*280*19
23 130*160*14 50 250*280*15
24 135*165*14 51 270*330*25
25 135*170*12 52 280*320*18
26 140*170*14 53 320*360*25
27 145*175*14 54 365*405*18

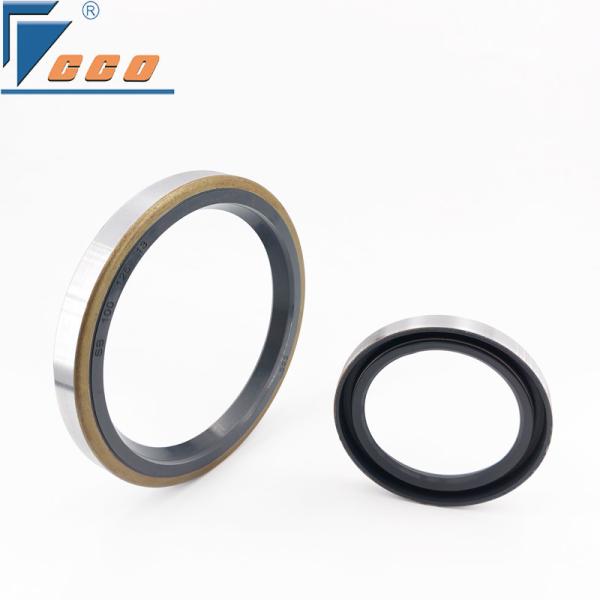

Details Images

Black Durable SB Type Oil Seal Skeleton NBR Single Lip - 40 ℃ ~ 120 ℃

Black Durable SB Type Oil Seal Skeleton NBR Single Lip - 40 ℃ ~ 120 ℃Black Durable SB Type Oil Seal Skeleton NBR Single Lip - 40 ℃ ~ 120 ℃

Product Packaging

Black Durable SB Type Oil Seal Skeleton NBR Single Lip - 40 ℃ ~ 120 ℃Black Durable SB Type Oil Seal Skeleton NBR Single Lip - 40 ℃ ~ 120 ℃

Company Introduction

Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.

The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products.

Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.
