Oil Seal Cover Skeleton Oil Seal Gearbox Oil Sealing Corrosion Resistant Dustproof
Oil Seal Cover Skeleton Oil Seal Gearbox Oil Sealing Corrosion Resistant Dustproof
Oil Seal Cover Skeleton Oil Seal Gearbox Oil Sealing Corrosion Resistant Dustproof
Oil Seal Cover Skeleton Oil Seal Gearbox Oil Sealing Corrosion Resistant Dustproof
Specifications
Brand Name :
CCO
Model Number :
EC Oil Seal
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000/week
Packaging Details :
Paper+Carton Box
Manufacturer :
EC Seals
Installation :
Press-fit
Country Of Origin :
China
Package :
Carton Box
Color :
Gray
Media :
Oil, Grease, Water, Air
Description

Oil Seal Cover Skeleton Oil Seal Gearbox Oil Sealing Corrosion - Resistant And Dustproof

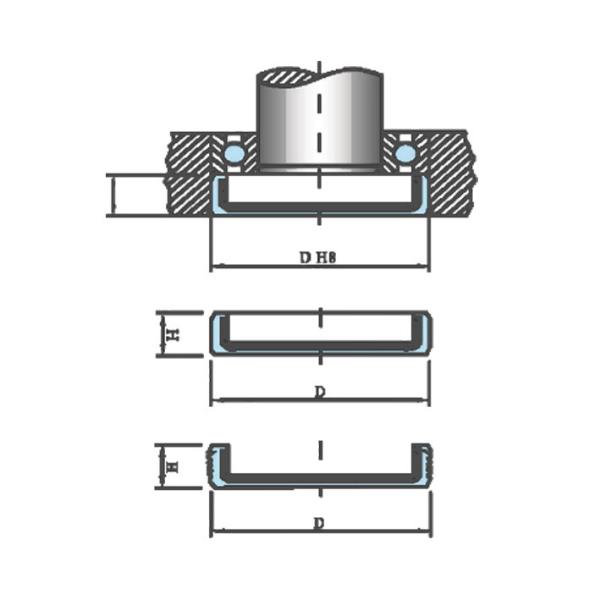

Structure

  • A metal skeleton coated with rubber
  • The rubber part of the encapsulated skeleton is in direct contact with the sealing surface
  • Rubber layer at the outer diameter prevents oil leakage

The exposed steel skeleton design of the EC-type end cover oil seal greatly simplifies the installation process. During installation, specialized tools can be used to quickly position and secure the seal directly via the skeleton, eliminating the need for complex operations. During disassembly, the skeleton's load-bearing points enable damage-free removal, minimizing damage to the seal lip and shaft surface. This design significantly reduces installation and maintenance time, lowers labor costs, and is particularly suitable for mechanical equipment end caps that require frequent maintenance and seal replacement, such as gearbox end caps and fan end caps.

EC-type end cover oil seals are widely used in end cover sealing applications in automotive manufacturing, construction machinery, industrial automation, and other fields due to their optimized design for end cover structures, excellent sealing performance, convenient installation and maintenance, and environmentally friendly and safe characteristics.

Specifications

No. SPECIFICATION No. SPECIFICATION
1 8*5 40 35*6
2 10*4 ... ...
3 12*4 90 75*7
4 12*5 91 75*9
5 12*7 92 75*10
6 14*4 93 75*12
7 15*4 94 80*7
8 16*4 95 80*8
9 16*5 ... ...
... ... 132 180*12
35 32*5 133 180*15
36 32*6 134 190*12
37 32*7 135 200*13
38 32*8 136 210*12
39 35*5 137 230*14

Photos


Oil Seal Cover Skeleton Oil Seal Gearbox Oil Sealing Corrosion Resistant DustproofOil Seal Cover Skeleton Oil Seal Gearbox Oil Sealing Corrosion Resistant Dustproof

Package

Paper bag + carton, also can be customized.

Oil Seal Cover Skeleton Oil Seal Gearbox Oil Sealing Corrosion Resistant Dustproof

About Our Company

Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.
The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products. Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.

Oil Seal Cover Skeleton Oil Seal Gearbox Oil Sealing Corrosion Resistant Dustproof
