Full Size Nitrile Rubber Sealing High Temperature Oil Seal Ring Skeleton Oil Seal
Full Size Nitrile Rubber Sealing High Temperature Oil Seal Ring Skeleton Oil Seal
Full Size Nitrile Rubber Sealing High Temperature Oil Seal Ring Skeleton Oil Seal
Full Size Nitrile Rubber Sealing High Temperature Oil Seal Ring Skeleton Oil Seal
Specifications
Brand Name :
CCO
Model Number :
SB Oil Seal
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000/week
Packaging Details :
Paper+Carton Box
Lubrication :
Oil or Grease
Shaft Diameter :
5mm to 100mm
Spring :
One
Features :
Highly resistant to oil and heat
Working Temperature :
-40℃ to 120℃
Material :
Rubber
Type :
Rotary Shaft Seal
Place :
China
Description

Full Size Nitrile Rubber Sealing High Temperature Oil Seal Ring Skeleton Oil Seal

Product

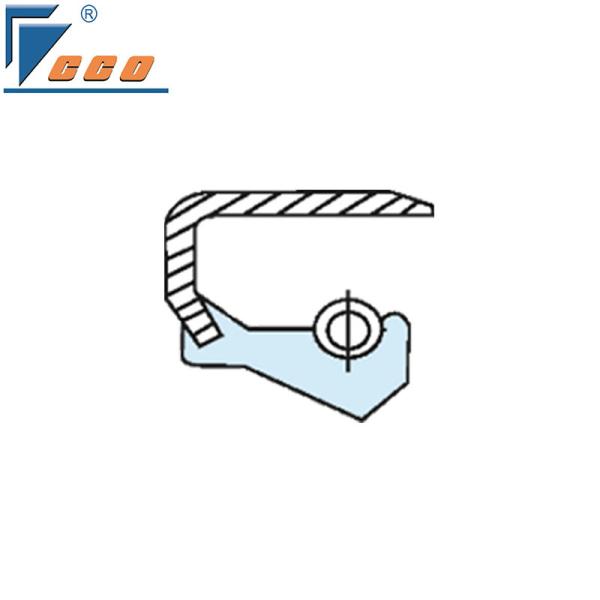

The outer layer is an iron shell, designed for steel rotating shafts or cast iron pool holes.

Exceptional wear resistance for high-speed, high-frequency applications: SB type oil seals are made from high-quality, highly elastic materials such as nitrile rubber (NBR) and fluorocarbon rubber (FKM), combined with advanced vulcanization processes, to provide outstanding wear resistance. In high-speed rotating applications (maximum speed up to 3000 rpm) such as motor shafts, gearbox input shafts, and high-frequency vibrating compressor crankshafts, wear rates are reduced by 30% compared to standard oil seals, significantly extending the replacement cycle and minimizing equipment downtime for maintenance.


The temperature resistance range is extremely broad: NBR material can operate stably at temperatures ranging from -40°C to +120°C, meeting the requirements of conventional industrial environments; FKM material can withstand extreme temperature differences from -26°C to +250°C. Whether in outdoor equipment in cold regions or in high-temperature, high-pressure engine compartments, SB-type oil seals maintain excellent elasticity and sealing performance, ensuring stable operation of equipment under all conditions and in all environments.

Materials

MATERIAL

 FEATURES Temperature

Nitrile Rubbr

(NBR)

Excellent wear resistance

Excellent aging resistance

Excellent Oil resistance

Good water resistance

Fair ozone resistance

Fair acid resistance

 -40~120°C

Fluorinated Rubber

(FKM)

Excellent wear resistance

Excellent aging resistance

Excellent Oil resistance

Good water resistance

Excellent ozone resistance

Excellent acid resistance

 -26~250°C
Silicone Rubber

Poor wear resistance

Excellent aging resistance

Poor Oil resistance

Good water resistance

Excellent ozone resistance

Fair acid resistance

 -60~225°C

Standard

Number Specifications Number Specifications
1 20*40*11 28 150*180*14
2 28*45*8 29 160*190*14
3 38*58*11 30 160*190*16
4 40*62*9 31 165*220*20
5 42*55*7 32 170*200*15
6 45*68*12 33 170*200*16
7 50*72*12 34 180*210*15
8 55*78*12 35 180*210*16
9 60*80*8 36 180*235*20
10 60*80*10 37 190*220*15
11 65*90*13 38 190*225*16
12 75*100*13 39 200*230*15
13 80*105*13 40 200*230*16
14 90*115*13 41 200*240*20
15 95*120*13 42 210*240*15
16 100*125*13 43 210*250*16
17 95*130*13 44 210*250*20
18 105*135*14 45 220*255*16
19 110*140*14 46 220*260*22
20 115*145*14 47 230*260*15
21 120*150*14 48 240*270*15
22 125*155*14 49 240*280*19
23 130*160*14 50 250*280*15
24 135*165*14 51 270*330*25
25 135*170*12 52 280*320*18
26 140*170*14 53 320*360*25
27 145*175*14 54 365*405*18

Details Images

Full Size Nitrile Rubber Sealing High Temperature Oil Seal Ring Skeleton Oil SealFull Size Nitrile Rubber Sealing High Temperature Oil Seal Ring Skeleton Oil Seal

Product Packaging

Full Size Nitrile Rubber Sealing High Temperature Oil Seal Ring Skeleton Oil SealFull Size Nitrile Rubber Sealing High Temperature Oil Seal Ring Skeleton Oil Seal

Company Introduction

Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.

The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products.

Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.
