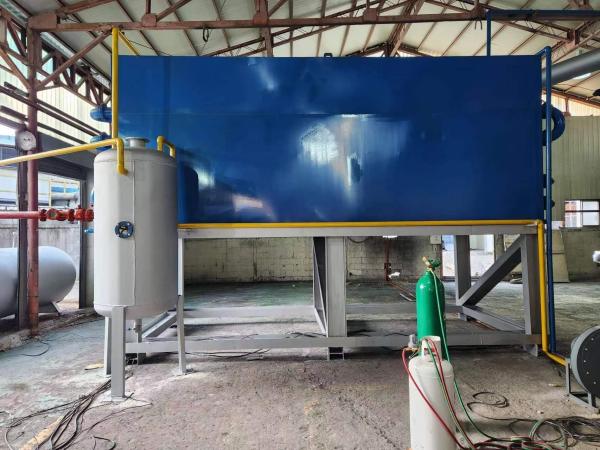

Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution
Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution
Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution
Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution
Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution
Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution
Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution
Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution
Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution
Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution
Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution
Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution
Specifications
Place of Origin :
Henan, China
Packaging Details :
waste tire pyrolysis plant in Seaworthy packing
Supply Ability :
200 Set/Sets per Year
Price :
$45,000.00/sets >=1 sets
Type :
High Technology Waste Tire Pyrolysis Plant
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Tire Machine Type :
Tire Recycling Machine
Voltage :
380V 220V
Dimension(L*W*H) :
2600mm*6600mm
Year :
2023
Warranty :
1 Year
Key Selling Points :
Long Service Life
Power (kW) :
15.5 kW
Weight (KG) :
32000 KG
Applicable Industries :
Manufacturing Plant, Energy & Mining
Showroom Location :
United States, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Thailand, South Korea, Chile, Bangladesh, South Africa
After-sales Service Provided :
Engineers available to service machinery overseas
Application :
High Technology Waste Tire Pyrolysis Plant
Reactor Material :
Q245R Boiler Steel
Plate Thickness :
18mm
Machine weight :
30tons
Handling capacity :
10 tons
Cooling system :
Water cooling
Heating method :
Direct heating
Installation :
Free of charge
Area required :
300sq meter
Port :
FOB LIANYUNGANG
MOQ :
1
Description

Waste Tyre Pyrolisys Plant

Model of Pyrolysis plant :

Model Reactor size Material Handling capacity/batch Weight Seaworthy packing
LJ-8 2200*6000mm Q245R /Q345R boiler steel ,16mm thickness 5 tons 24tons 2*40HQ
LJ-9 2200*6600mm Q245R /Q345Rboiler steel ,16mm thickness 8tons 26tons 2*40HQ
LJ-10 2600*6600mm Q245R /Q345Rboiler steel ,16mm thickness 10tons 30tons 1*40FR+1*40HQ
LJ-12 2800*6600mm Q245R/Q345R boiler steel ,18mm thickness 12tons 32tons 1*40FR+1*40HQ
LJ-15 2800*7700mm Q245R/Q345R boiler steel ,18mm thickness 15tons 40tons 1*40FR+1*40HQ

Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution

Working process of Waste Tire Pyrolysis To Fuel Oil Machine:

First, the raw materials are put into the reactor, and then seal the feeding in door, later start the machine and the reactor will be rotating and heated by coal, natural gas, wood or electricity. When the temperature reaches the degree of 250 to 280, we will get the crude oil, the oil steam will be continuous produced until the temperature reaches 350-460°C; oil steam will flow through oil gas separator, light component will enter the condensers and meanwhile the heavy oil will be discharged automatically into in heavy oil tank. The liquefied part will be condensed as crude oil, and the part of tire oil which cannot be liquefied will be transferred by the water seal back to the burning chamber to be reused as heating material.

Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution

End of Product from fuel oil from tire pyrolysis plant:

Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution

Tire Pyrolysis recycling Oil Plant Installation: We will be in charge of arranging our engineer to go to your place to guide the installation and train your workers how to operate the tire oil pyrolysis plant.

Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution

Oil refining from tyre production Line Land requirement: 300sq meters(10m*30m)

Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution

Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy SolutionWaste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy SolutionWaste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution

Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy SolutionNew Energy Tire to Fuel oil Exporting Experience:

America:

Brazil, Canada, Colombia, USA,

Middle East:

Dubai, Jordan, Saudi Arabia, Turkey

Europe:

Albania , Bosnia and Herzegovina

Asia:

Afghanistan, India, Malaysia, Pakistan, Philippines, South Korea, Vietnam, Myanmar, Thailand, Uzbekistan

Africa:

Ghana, Mozambique, Zambia

Waste Tyre Pyrolisys Plant 2600mm*6600mm For Green Energy Solution
