Electric Insulating Oil Purifier High Efficiency Vacuum Insulating Oil Purifier Machine for Power Plant Maintenance

Technical Parameters:

Advantages:

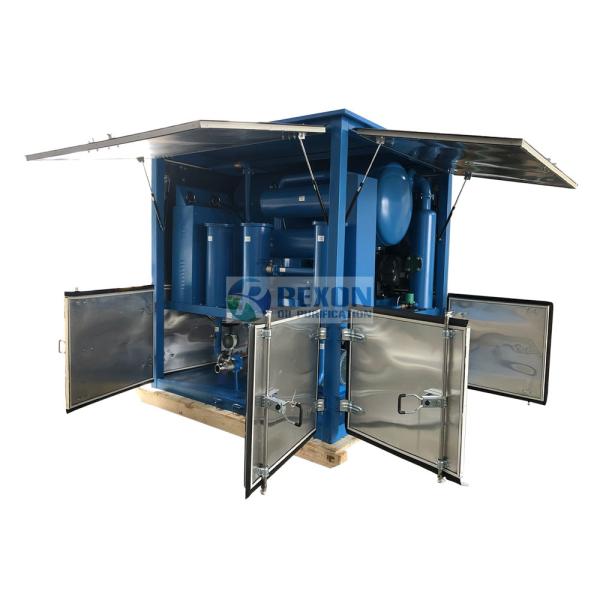

Electric Insulating Oil Purifier High Efficiency Vacuum Insulating Oil Purifier Machine for Power Plant Maintenance, Weather Proof Type Double Stage High Vacuum Insulating Oil Purifier Machine 9000Liters/Hour, Vacuum Transformer Oil Filtration System with Weather Proof Housing, Dust Proof Type for Oustide Use, it can protect the machine not to be damaged by raining weather, or in other bad circumstance use. So you can take use of the machine in any weather and many circumstances for any on-site oil filtration project.

Application:
Electric Insulating Oil Purifier High Efficiency Vacuum Insulating Oil Purifier Machine for Power Plant Maintenance, Rexon High Vacuum Type Transformer Oil Purification System with Full Enclosure (Weather-Proof Housing) Which is a ultra high vacuum oil dehydration system for Dielectric Transformer Oil Purification and Oil Filtering. This transforemr oil filtration equipment can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipment working safely and normally. It's particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work on-site. Meanwhile, it can be used as independent vacuum resource with functions of vacuum drying and vacuum oiling.

Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. Functions of live line work onsite, vacuum drying and vacuum oil filling.
9. Weather Proof designing which can be used outside even in raining weather.
10.Designed for processing oil in workshops, in storage tanks or directly in transformers (energized and de-energized transformers both).
