Steady Closed Trailer Power Substation Used Transformer Oil Purifier 3000LPH~18000LPH

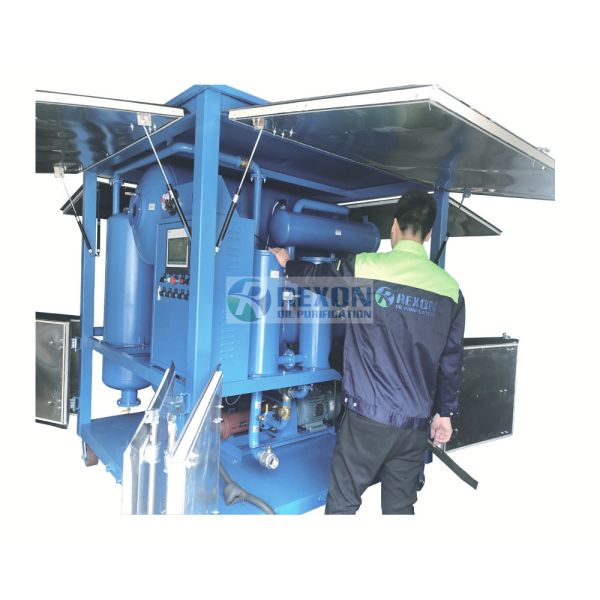

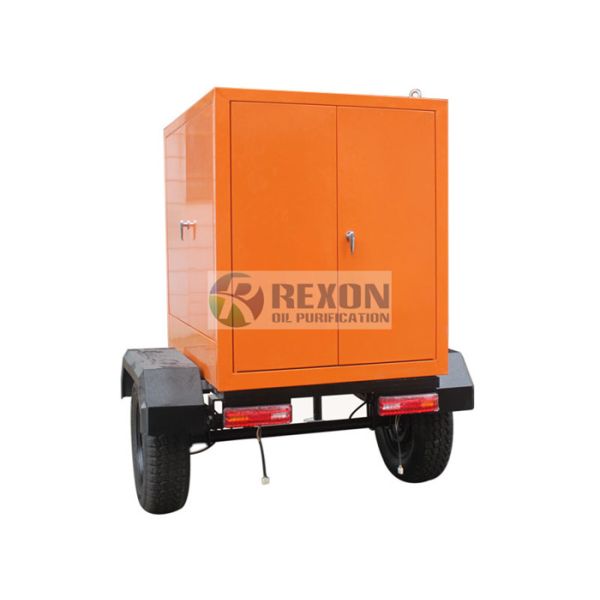

This Plant will equip with mobile trailer(4 wheels or 2 wheels based on model size) and combined with weather proof housing cover, which can move long distance for on-site oil filtration job, easy and steady for transport. Since it is completely water proof, dust proof, it can protect the machine not to be damaged by raining weather, or in other bad circumstance use. So you can use the machine in any weather and many circumstances for any on-site oil filtration project.

This oil filtration system is applied to treat various of unqualified insulation oils including aging transformer oil, mutual inductor oil, switch oil. Also it can inject the insulating oil into the transformers. The functions include: dewatering, degassing, removing the impurities, and recovering the oil's original function.


1. Double-stage High Vacuum dehydration and degassing and removing impurities from the used transformer oil.
2. Eliminate acidity, sludge, free carbon, discoloration elements, and other soluble matters in the oil, which decays the transformer.
3. It can vacuum filling oil to transformers, and it can vacuum dry transformers and on-line operation with transformer.
4. The standard ZYD system is designed for purifying and filtering oils in workshops, in storage tanks or directly in transformers (energized or de-energized transformers).

The oil technical data after treatment:
1. Gas content is less than 0.1%
2. Impurity size is less than 1μm without free carbon
3. Water content is less than 3 part per million
3. Oil dielectric strength (breakdown voltage) is more than 75KV
4. Acidity value is less than 0.01 mg KOH/g
5. Dielectric loss factors at 90℃ is less than 0.001

(oil filtration, oil purification, oil treatment, oil purifier, oil recycling, oil processing, oil filtering, oil filtration, energy saving, oil regeneration, oil processor, oil filter, oil process, oil purify, oil regenerating, oil restoration, waste oil disposal, oil reclaimed, oil reclaiming, waste oil management, oil regenerate, oil reconditioned, oil reconstituted, oil restituting, oil recovering, oil recondition, oil filters, oil refinery, oil refiner, oil cleaning, oil recycle, oil reclaiming, oil separator, oil recovery, oil recycle, oil reclamation, oil refinery, oil separator, oil separation, oil purifiers, oil recondition )


Technical Parameters:

Our Transformer Oil Purifier Maintenance Machines can bring you:
→Purifying your transformer oil high efficiently
→Maintain your transformer oil always in good status
→Save your old transformer oil replacement cost
→Solve your waste transformer oil disposal problem
→Guarantee your transformers working normally with qualified oil property
→Protect your transformers and power equipment by oil pollution problems
→Reduce your maintenance time, energy and invest on transformers and power plant
→Create a safety and cleaning oil use environment for your transformers of power station
→Bring a green oil ideal to the world and save oil energy for all of our generations
