Upgraded Standard Type Transformer Oil Regeneration Purifier 6000L/H SGS Pass
Upgraded Standard Type Transformer Oil Regeneration Purifier 6000L/H SGS Pass
Upgraded Standard Type Transformer Oil Regeneration Purifier 6000L/H SGS Pass
Upgraded Standard Type Transformer Oil Regeneration Purifier 6000L/H SGS Pass
Upgraded Standard Type Transformer Oil Regeneration Purifier 6000L/H SGS Pass
Upgraded Standard Type Transformer Oil Regeneration Purifier 6000L/H SGS Pass
Upgraded Standard Type Transformer Oil Regeneration Purifier 6000L/H SGS Pass
Upgraded Standard Type Transformer Oil Regeneration Purifier 6000L/H SGS Pass
Specifications
Brand Name :
REXON
Model Number :
ZYD-100 (6000LPH)
Certification :
CE, ISO9001, SGS, CCC
Place of Origin :
China
MOQ :
1 Set
Price :
USD $4000/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set/Month
Delivery Time :
1~3 Weeks
Packaging Details :
Export Standard Wooden Case
Function 1 :
Transformer Oil Filtration
Function 2 :
Transformer Oil Purification
Function 3 :
Transformer Oil Regeneration
Working Vacuum :
-0.06 ~- 0.099MPa
Best Heating Temperature :
55~65
Gas Content After Process :
Below 0.1%
Impurity Size After Process :
Below 1 Micron
Description

Upgraded Standard Type Transformer Oil Regeneration Purifier 6000L/H SGS Pass

Why Need Rexon Oil Purifier?

There are contaminants in transformer oil as following:
1.Solid particles like rust scales, dust and fibres
2.Generation of carbon particles due to ageing of switchgear
3.Oil absorbs moisture resulting in free and dissolved water
4.Absorption of air
5.Aging fluids produce absorbed gases, causing equipment failure and arc suppression in swithgear
6.Sludge formation
7.Increase in acidity level
8.Chemical products are caused by oxidation, as well as cross contamination of other products.

Brief Introduction
Machine Condition: New
Treatment Capacity: 6000 L/H
Working Pressure: ≤0.4 Mpa
Place of Origin: Chongqing, China (Mainland)
Brand Name: REXON OIL PURIFICATION
Model Number: ZYD-100
Application: Transformer Oil
Power data: 380V 50HZ/3 Phase Or As Required

What ZYD-100 can do for you?
1.Removes water, trace water and acidity from oil completely
2. Remove impurities from transformer oil fast
3. Reduces combustible gases and oxygen to standard value
4. Improves oil dielectric values
5. Improves transformer power factor
6. Extends oil service life
7. Extends transformer service life and reliability

Oil Data After Process:
Impurity size after process: ≤1 micron
Gas content after process: ≤0.1%
Moisture content after process: ≤3 PPM

Advantages
Upgraded Standard Type Transformer Oil Regeneration Purifier, comparing with the single-stage vacuum oil purifier, series ZYD adds ROOTS vacuum system, second stage of separating system to improve the effect of purification which dewaters, degases and removes impurities more quickly, more completely and make the oils limiting voltage-withstand value much higher. This machine also can remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly. As the bridge-type vacuum linking system that can filter and be an independent vacuum power supply, this machine can be vacuum treating the electric insulating devices.

Technical Parameters

Parameters Unit ZYD-30 ZYD-50 ZYD-100 ZYD-150 ZYD-200 ZYD-250 ZYD-300
Flow Rate L/H 1800 3000 6000 9000 12000 15000 18000
Working Vacuum Mpa -0.08 ~-0.099
Working Pressure Mpa ≤ 0.3
Temp Range ºC 20 ~80
Power Supply 380V, 50Hz, 3Phase( As per required)
Working Noise Db 60 - 80 (Depended on the configuation)
Heating Power KW 30 60 90 135 150 165 180
Total Power KW 35 67.5 101.5 149 164 198
Inlet/Outlet Diam MM 25 32 42 50 50 60 60
Weight KG 450 550 750 950 1200 1850 2000
Size Length MM 1450 1450 1750 1850 1950 2050 2150
Width MM 950 1000 1250 1300 1350 1400 1450
Height MM 1700 1750 1950 2000 2050 2100 2150
AFTER TREATMENT
Dielectric Strength KV ≥ 75-85
Water Content PPM ≤ 3
Gas Content % ≤ 0.1
Particle Size μ ≤ 3
Cleanliness ≤NAS 1638 Grade 5

Rexon Customer Visit

Upgraded Standard Type Transformer Oil Regeneration Purifier 6000L/H SGS Pass

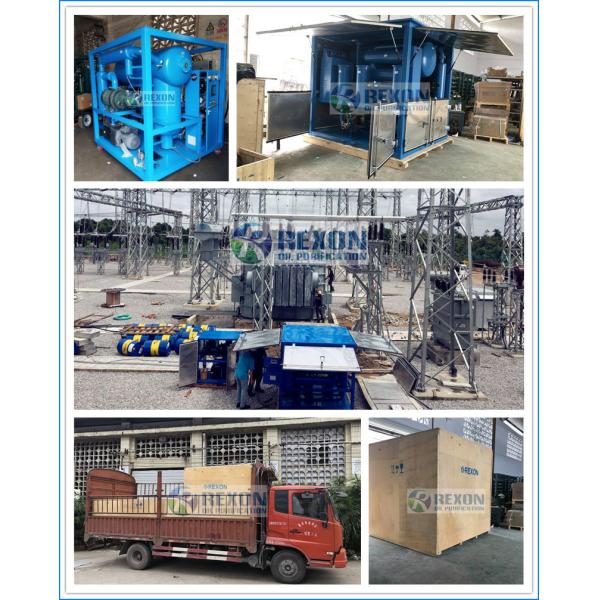

Rexon Transformer Oil Purifier Onsite Use:

Upgraded Standard Type Transformer Oil Regeneration Purifier 6000L/H SGS Pass
