6000LPH Hotsale Bipolar Vacuum Transformer Oil Filtration Plant for Power Plant Maintenance

Application.
It is widely used in various large transformer equipment installation and maintainence, and in vacuum hot oil cyclic drying. It is dedicated to 110KV ~ 1100KV transfomer oil, high-grade, imported new oil deep purification. In comparison with single-stage vacuum oil purifier, this machine has one Roots pump booster system, secondary high vacuum separation system and three-dimensional flash rapid evaporation system.

After its dehydration, degassing, acetylene removal, acid removal, free carbon removal, etc., the breakdown value of the insulation oil is higher. The machine can be used not only as a oil purifier, but also as an independent vacuum source for vacuum drying and oil injection of transformer equipment.

Oil technical data after REXON Series ZYD oil purifier machine treatment:
A. Gas content is less than 0.1%
B. Impurity degree is less than 1μm without free carbon
C. Oil dielectric strength (breakdown voltage) is more than 75KV
D. Water content is less than 3 ppm(part per million)
E. Acidity value is less than 0.01 mgKOH/g
F. Dielectric loss factors at 90ºC is less than 0.001
G. Cleanliness degree is less than NAS 1638 Grade 5

FAQ
1.What is the usage of vacuum oil purifier?

It can remove 100% free water and 99.9% dissolved water, 100% free gas and 98% dissolved gas, impurities.

2.Does your process use chemicals or additives?

No, it is pure -physical technology.

3.What are the consumptive materials in the oil purifier machine?

The filters. Generally,new filters can work at least 3,000 hours.

4.What is your material of your machine?

Carbon steel or Stainless steel (Standard type is SUS304)

5. Any of the products is customizable?

Yes, all parts of the machine is customizable as required.

Technical Parameters

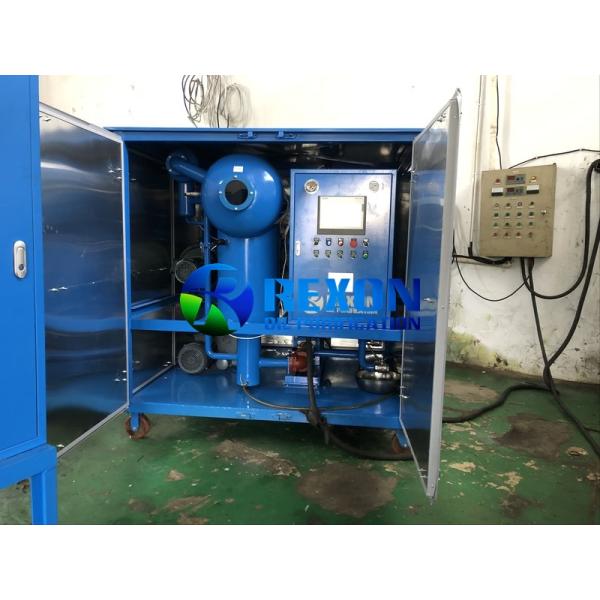

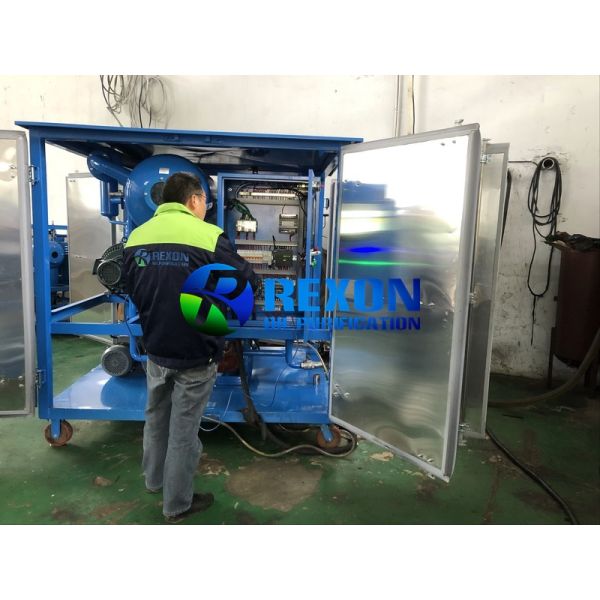

Machine Pictures:

Welcome to contact us for details and price!

Rexon Oil Purification, Slove Your Oil Problems!
