API Standard Marine Casing Cutter/Mechanical Internal Casing Cutter for Tubing Drill Pipe and Casing
API Standard Marine Casing Cutter/Mechanical Internal Casing Cutter for Tubing Drill Pipe and Casing
API Standard Marine Casing Cutter/Mechanical Internal Casing Cutter for Tubing Drill Pipe and Casing
API Standard Marine Casing Cutter/Mechanical Internal Casing Cutter for Tubing Drill Pipe and Casing
API Standard Marine Casing Cutter/Mechanical Internal Casing Cutter for Tubing Drill Pipe and Casing
API Standard Marine Casing Cutter/Mechanical Internal Casing Cutter for Tubing Drill Pipe and Casing
API Standard Marine Casing Cutter/Mechanical Internal Casing Cutter for Tubing Drill Pipe and Casing
API Standard Marine Casing Cutter/Mechanical Internal Casing Cutter for Tubing Drill Pipe and Casing
Specifications
Model Number :
Casing Cutter
Certification :
API
Place of Origin :
China
MOQ :
1 pc
Price :
USD800-5000/pc
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500 pieces per month
Delivery Time :
15-25 work days
Packaging Details :
Export Wooden Case
Product Name :
API Standard Marine Casing Cutter/Mechanical Internal Casing Cutter for Tubing Drill Pipe and Casing
Keywords :
Casing Cutter
Material :
High Manganese Steel
Processing Type :
Forging
Description

API Standard Marine Casing Cutter/Mechanical Internal Casing Cutter for Tubing Drill Pipe and Casing

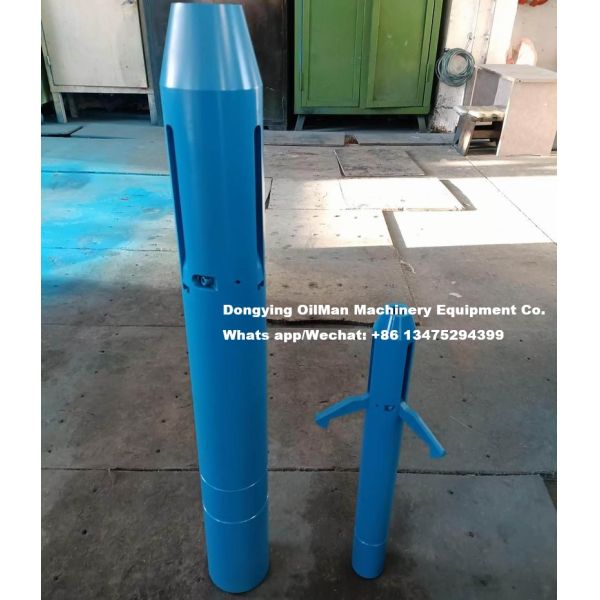

Marine casing cutter is one of tools which cuts the casing internally. It uses water horse power to drive cutters work, it has reasonable structure and convenient maintenance, faster cutting speed. When cutting multi-layer non-concentric casings, it could bear strenuous vibration. Strong cutter arms can extend to 5 times as much as body diameter, so as to get maximum stability performance under various adverse cutting condition( including hard point, decentration, discontinuous cutting etc).

Mechanical internal casing cutter is a tool which is used for cutting downhole fixed(or stuck) pipe from inner of casing, it can work at any place except joint and coupling.

Marine Casing Cutter Technical Parameters

Model Body OD Casing Size Connection
mm (inch) inch
GD111 111(4-3/8) 5-1/2~9-5/8 2-7/8REG
GD146 146(5-3/4) 7~16 3-1/2REG
GD203 203(8) 9-5/8~30 NC50
GD238 238(9-3/8) 10-3/4~36 6 5/8REG
GD298 298(11-3/4) 13-3/8~60 6 5/8REG

Mechanical Internal Casing Cutter Technical Parameters

Model Cutter OD Casing/Tubing Size Cutting Thickness Connection
mm (inch) inch mm
ND73 57(2-15/64) 2 7/8 5.5 1.9TBG
ND89 67(2-41/64) 3 1/2 6.5 1.9TBG
ND102 85(3-11/32) 4 5.7~6.7 2-3/8TBG
ND114 89(3-1/2) 4 1/2 7.4~10.9 2-3/8TBG
ND127 102(4-1/64) 5 5.59~11 2-7/8REG
ND140 120(4-23/32) 5 1/2 7~9.2 NC31
ND168 149(5-7/8) 6 5/8 7.3~8.9 NC38
ND178 146 (5-3/4) 7 5.87~13.72 4-1/2REG
ND244 212(8-11/32) 9 5/8 7.92~13.84 6-5/8REG
ND340 295(11-39/64) 11 3/8 8.38~12.19 6-5/8REG

API Standard Marine Casing Cutter/Mechanical Internal Casing Cutter for Tubing Drill Pipe and Casing

If any needs, pls contact us freely:

Dongying OilMan Machinery Equipment Co.
Address: North Two Road, Dongying City, Shandong Province, China.
Mob/whats app/we chat:+86 13475294399
*Email: christal@oilmancn.com Website:www.oilmanchina.com
