1-1/2 Oilfield Downhole Tools , Oil Well Polished Rod Stuffing Box
1-1/2 Oilfield Downhole Tools , Oil Well Polished Rod Stuffing Box
1-1/2 Oilfield Downhole Tools , Oil Well Polished Rod Stuffing Box
1-1/2 Oilfield Downhole Tools , Oil Well Polished Rod Stuffing Box
1-1/2 Oilfield Downhole Tools , Oil Well Polished Rod Stuffing Box
1-1/2 Oilfield Downhole Tools , Oil Well Polished Rod Stuffing Box
1-1/2 Oilfield Downhole Tools , Oil Well Polished Rod Stuffing Box
1-1/2 Oilfield Downhole Tools , Oil Well Polished Rod Stuffing Box
Specifications
Model Number :
Single Packed & Double Packed
Certification :
API
Place of Origin :
China
MOQ :
1 pc
Price :
USD100-500/pc
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
7-30 work days
Packaging Details :
Export Wooden Case
Product Name :
1-1/2" Oilfield Production Oil Well Sucker Rod Polished Rod Stuffing Box
Keywords :
Polished Rod Stuffing Box
Application :
Oil Well Drilling
Rod Size :
1", 1 1/8" , 1 1/4", 1 1/2" and 1 3/4"
Description

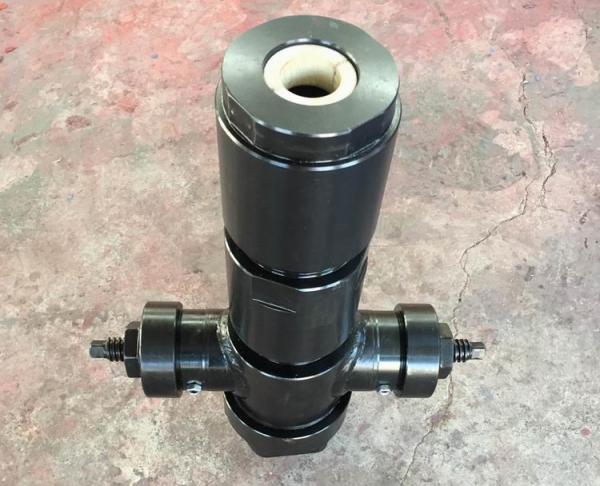

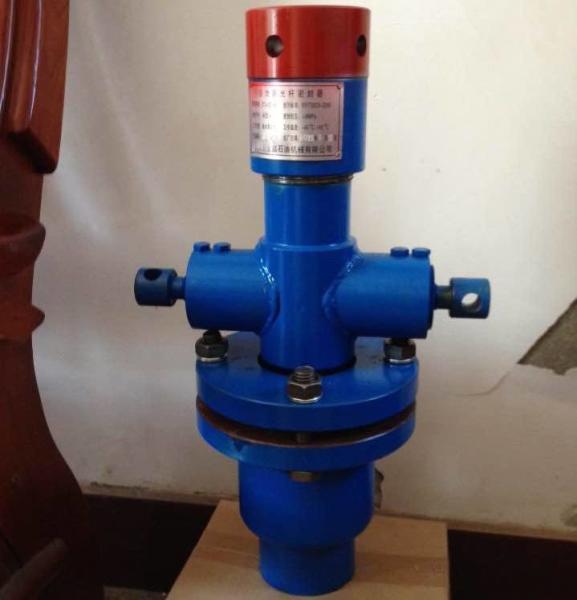

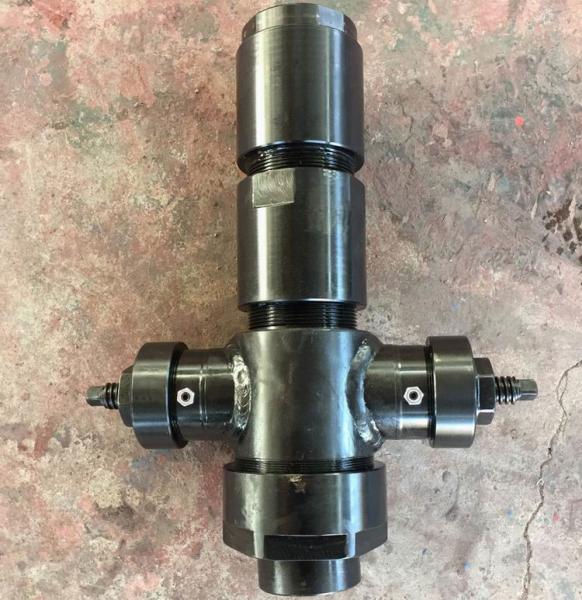

1-1/2" Oilfield Production Oil Well Sucker Rod Polished Rod Stuffing Box

Description of Polished Rod Stuffing Box:

Stuffing box to be installed at Pumping Well Head and seal off the Polished Rod with cone packing and free floating lubricated upper section to assure self alignment and packing burn out, designed to seal off leakage by fluid pressure.

This stuffing box is available for Single Pack and Double Pack stuffing box as below, using 1045/4130 casting steel or ductile iron as per customer demand, for cap, glands, body and base, bottom are API gauged threads of tubing EUE or LP.

They are suitable for rod sizes 1", 1.1/8" , 1.1/4", 1.1/2" and 1.3/4". Simple structure, easy installation and convenient maintenance, and they can make sure the sealing effectiveness through its single packing or double packing or even triple packing.

1-1/2

Technical Specifications of Polished Rod Stuffing Box:

Working Pressure ≤1500psi
Bottom Thread 1.3/4”, 2”, 2.1/2”, 3”, 3.1/2”, 4”
Bottom Connection Box or Pin, API Tubing or Line Pipe thread.
Material AISI1045/4130 casting steel or ductile iron
Split Cone Packing (rod sizes) 1”, 1.1/8”, 1.1/4”, 1.1/2” and 1.3/4”.

Packing pieces Height
Required 13.1/2” 16” 17”
TOP 4 4 6
BOTTOM 1 1 1

1-1/2

1-1/2

1-1/2

If any needs, pls contact us freely:

Dongying OilMan Machinery Equipment Co.
Address: North Two Road, Dongying City, Shandong Province, China.
Mob/whats app/we chat:+86 13475294399
*Email: christal@oilmancn.com
