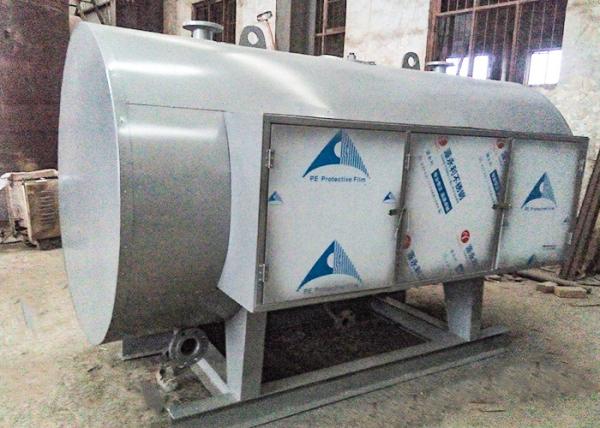

8t Thermal Oil Furnace , Electric Thermal Oil Boiler Environment Protection
8t Thermal Oil Furnace , Electric Thermal Oil Boiler Environment Protection
8t Thermal Oil Furnace , Electric Thermal Oil Boiler Environment Protection
8t Thermal Oil Furnace , Electric Thermal Oil Boiler Environment Protection
Specifications
Brand Name :
Yinyu
Model Number :
DRYL
Certification :
ISO/BV
Place of Origin :
Henan China
MOQ :
1
Price :
$5,000.00-$10,000.00
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Qty/per month
Delivery Time :
7-30 work days
Packaging Details :
Loose packge
Material :
GB/T 3087-2008
Usage :
Industries
Style :
Vertical/Horizontal
Structure :
Electric heating
Type :
Nature circulation
Pressure :
Low pressure
Output :
Hot transfer fluid
Warranty :
1 year,Lifetime maintain commitment
Color :
Customized
Thermal efficiency :
95%-98%
Description

8t High efficiency environment protection automatic electric heating thermal oil boiler

The electric heating thermal oil system is a new type of environmentally friendly thermal energy conversion equipment, often electric as the power source, through the original heat transfer (electric heating tube) will be the power of heat, heat transfer oil as a heat transfer medium through the high temperature oil pump in the system mandatory circulation, so that it is heated around, to meet the need for heat equipment continuous heat energy. Such equipment is characterized by the small size of the equipment, installation is more flexible, through the conversion of electrical energy to heat energy is very environmentally friendly, while high heat transfer efficiency can ensure that the lower operating pressure to obtain a higher operating temperature. After investigation, the device in the process of use will generally exist after a period of use of electricity increase, while heat exchange efficiency decline and other problems, resulting in the phenomenon of short thermal oil service life, the system after a period of use easy to form coking, carbon accumulation.

8t Thermal Oil Furnace , Electric Thermal Oil Boiler Environment Protection

Part of product parameters

DRYL​-5600

NO; Name Unit Number Description
1 Rated thermal power KW 5600
2 Rated working power Mpa 1.0
3 Rated inlet/outlet ℃ ℃ 310/290
4 Design efficiency ％

92.45(Oil)

92.13(Gas)
5 Boiler heat efficiency ％ More than 98% Be added economizer
6 Design fuels / Light oil,Gas
7 Fuels LHV MJ/kg 42.917(Oil)
MJ/Nm3 35.438(Gas)
8 Consumption of fuels kg/h 70.77(Oil)
Nm³/h 86.53(Gas) Be added economizer
9 Radiation heating area m² 7.199
Convection heating area m² 28.71
GGH heating area m² 10.965
10 Fume temperature ℃ 136.68(Oil)
℃ 137.02 (Gas)
11 Fume temperature ℃ 60-80 Be added economizer
12 Excess air coefficient / 1.15
13 Volume m3 0.46
14 Bulk weight kg 4250
15 Bulk size mm 8956×2827×2781
16 Chimney mm Φ325×10000
17 Combustion model / Micro positive pressure Chamber combustion
18 Boiler structure feature Horizontal-type chamber combustion
19 Control way Full automation/Manual
20 Ignition way High-tension/Electrode

Our services

Pre-sale service:
We help customer choose the best boiler model according to

different requirements of various industry. Before delivery we

will provide foundation drawing, layout drawing, boiler room

layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the

production process to ensure on time delivery with perfect

finished product.
After-sale service:

1. provide full range of original spare parts.
2. Engineers abroad installation and commissioning service is

available.
3. Our engineers will held a training for boiler workers to

ensure the safe operation.
4. Free maintenance and repair for one year and lifelong

service.

Boiler application areas
8t Thermal Oil Furnace , Electric Thermal Oil Boiler Environment Protection
