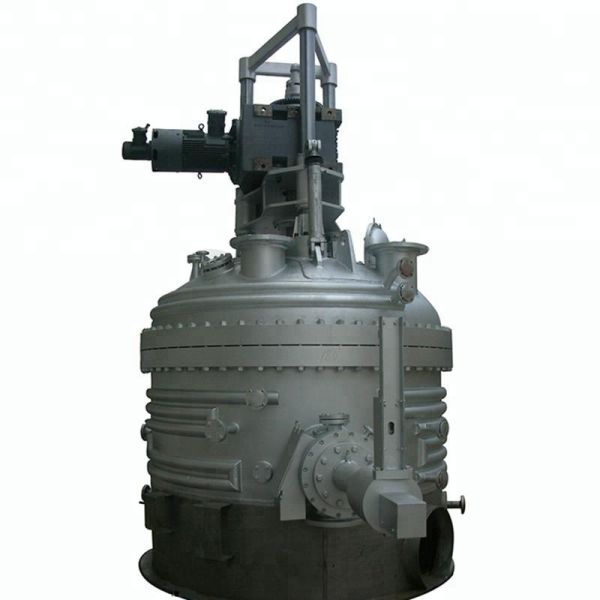

Stainless Steel 304/316 Agitated Nutsche Filter Dryer with 4.5 m2 Filtration Area and 450mm Filter Cake Height
Stainless Steel 304/316 Agitated Nutsche Filter Dryer with 4.5 m2 Filtration Area and 450mm Filter Cake Height
Stainless Steel 304/316 Agitated Nutsche Filter Dryer with 4.5 m2 Filtration Area and 450mm Filter Cake Height
Stainless Steel 304/316 Agitated Nutsche Filter Dryer with 4.5 m2 Filtration Area and 450mm Filter Cake Height
Stainless Steel 304/316 Agitated Nutsche Filter Dryer with 4.5 m2 Filtration Area and 450mm Filter Cake Height
Stainless Steel 304/316 Agitated Nutsche Filter Dryer with 4.5 m2 Filtration Area and 450mm Filter Cake Height
Stainless Steel 304/316 Agitated Nutsche Filter Dryer with 4.5 m2 Filtration Area and 450mm Filter Cake Height
Stainless Steel 304/316 Agitated Nutsche Filter Dryer with 4.5 m2 Filtration Area and 450mm Filter Cake Height
Stainless Steel 304/316 Agitated Nutsche Filter Dryer with 4.5 m2 Filtration Area and 450mm Filter Cake Height
Stainless Steel 304/316 Agitated Nutsche Filter Dryer with 4.5 m2 Filtration Area and 450mm Filter Cake Height
Specifications
Brand Name :
Juneng
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
$39,679-40,000 / set
Flow Rate :
3 gpm (11.4 lpm)
Maximum pressure :
150 psi
Particle Size :
2
Weight :
2200 kg
Shell Material :
carbon steel, stainless steel 304/316, hastelloy
Filtration area :
4.5 m2
Filter cake height :
450mm
Work pressure :
-0.1~0.3 Mpa
Shell diameter :
2400 mm
Nominal volume :
6.5 m3
Model :
GXG-2400
Function :
Filtering, washing, drying
Stirring speed :
Stepless speed regulating
Discharge valve :
Automatic
Filter material :
Horizontal placing
Description

Pressure -0.1~0.3 Mpa Agitated Nutsche Filtration Filter Filtering, Drying Machine

Product description:

GXG series multi-functions filtering, washing , drying (three in one ) machine is a solid-liquid equipment with the functions of filtration, washing, drying reaction and residue discharging automatically.

Application:

It is widely used in fine chemical, petroleum, foodstuff, printing, pharmaceutical industries, Glyphosate, Penicillin and so on.

Product competitive advantage:

1, Full enclosed filter, no leakage, no pollution

2, Solid-liquid separation can be realized under pressure or vacuum state. Filter cakes evenly distributed when filtering which has good effect.

3, Stirring system can stepless speed regulating and multi-function work. It can enlarge furthest for the cake space, thus filter cake can be fully cleaned; the time of drying is reduced greatly, with high efficiency.

4, Discharge valve can discharge automatically which can lower labor intensity.

5, Especially suitable for the material that large solid content, and recovering liquid phase and solid phase respectively.

6, Adopting horizontal placing filter material, one time completely filtering no remains. Filter material has unique sealing structure which is easy to be changed.

7, Anticorrosion three in one system is made of special material which can be suitable for multiform anticorrosion medium.

8, Stirring, mixing , beating , reacting, washing and multiform process working can be practiced in the body and it can carry out full automatic control.

Product Specifications:

Model

Filtration area m2

Shell
diameter (mm)

Work
pressure (Mpa)

Nominal
volume (m3)

Filter cake
height (mm)

GXG-600

0.28

600

-0.1~0.3

0.2

150

GXG-800

0.5

800

-0.1~0.3

0.5

180

GXG-1200

1.1

1200

-0.1~0.3

1.3

250

GXG-1600

2.0

1600

-0.1~0.3

2.8

350

GXG-2000

3.1

2000

-0.1~0.3

4.8

400

GXG-2400

4.5

2400

-0.1~0.3

6.5

450

GXG-2600

5.3

2600

-0.1~0.3

8.7

450

GXG-2800

6.0

2800

-0.1~0.3

12

450

GXG-3000

7

3000

-0.1~0.3

13

500

GXG-3200

8

3200

-0.1~0.3

14.5

500
