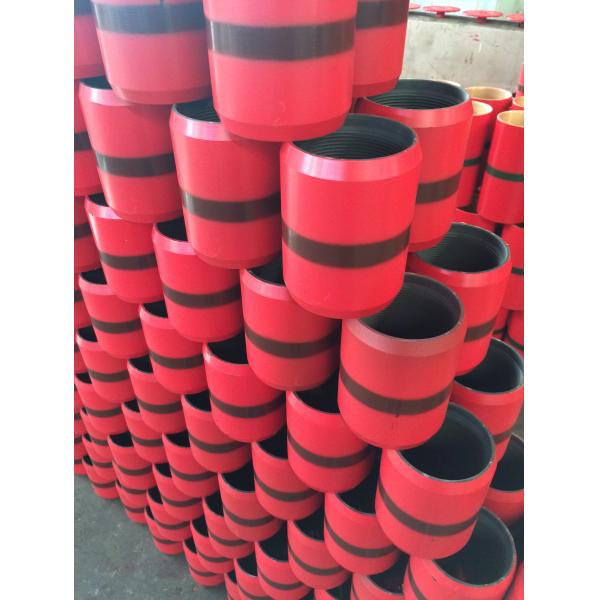

Hot Sale! API 5CT OCTG Female Shaft coupling N80/L80
Hot Sale! API 5CT OCTG Female Shaft coupling N80/L80
Hot Sale! API 5CT OCTG Female Shaft coupling N80/L80
Hot Sale! API 5CT OCTG Female Shaft coupling N80/L80
Hot Sale! API 5CT OCTG Female Shaft coupling N80/L80
Hot Sale! API 5CT OCTG Female Shaft coupling N80/L80
Specifications
Place of Origin :
china
Brand Name :
oilfield
Certification :
API 5CT
Model Number :
1“9～20”
Thread type: :
EUE, NUE, STC, LTC, BTC
Length: :
as customer requirement
Outer Diameter: :
20mm-1330mm
Thickness: :
0.9 - 30 mm, 0.9mm-30mm
MOQ :
1pcs
Price :
1~300 dollar
Packaging Details :
round square rectangular Galvanized Carbon Steel Pipe In Bundles or In Bulks or waterproof package P
Delivery Time :
20 days
Payment Terms :
LC &T/T/D&P
Supply Ability :
2800000 pcs
Description

The Product Standard: API SPEC 5CT9thPSL1; PSL2; PSL3;

Size:1"9~20"

Grade:H40,J55,K55,N80,L80,R95(C95),T95,P110,Q125

Hot Sale! API 5CT OCTG Female Shaft coupling N80/L80

1.Std :API 5CT &5B

2.Size : 1.9"to 4 1/2"

3.Non-upset and external-upset

Features

1.Material:J55, K55, N80-1, N80-Q, L80, C90, P110

2.Size:from 2-3/8" to 4-1/2"

3.Type:NUE EUE

4.Std ref:API 5CT&5B

5.Placement:female

6.Surface treatment: Whole phosphating, or inside phosphating and outside coating

7.Packing: By carton, wooden case, wooden pallet, or by requirements of customers

Technial Parameters

Name

Thread

Specifications

O.D*L(mm)

Weight(kg)

Load carring width(mm)

API 5CT OCTG Female Shaft coupling N80/L80

NU

2-3/8"TBG

73.02*107.95

1.28

4.76

2-7/8"TBG

88.90*130.18

2.34

4.76

3-1/2"TBG

107.95*142.88

3.71

4.76

4"TBG

120.65*146.05

4.35

4.76

4-1/2"TBG

132.08*155.58

4.89

4.76

EU

2-3/8"UPTBG

77.80*123.82

1.55

3.97

2-7/8"UPTBG

93.17*133.35

2.4

5.56

3-1/2"UPTBG

114.30*146.05

4.1

6.35

4"UPTBG

127.00*152.40

4.82

6.35

4-1/2"UPTBG

141.30*158.75

6.05

6.35

1.Advantage:good sealing

2.Size:from 2-3/8"to 4-1/2"

3.Standard reference:API 5CT & 5B

4.Material:J55,K55,N80,L80,C90,P110, N80-1,N80-Q

5.Surface treatment:whole phosphating,or inside phosphating and outside coating

6.Package:by carton, wooden case, wooden pallet or by customer request

Package informations

Specificaiton Tubing Size OD (inches) Coupling Size OD (inches) Length (inches) Weight per Coupling (kgs ) Palletized Carton Quantity Palletized Carton Weight
(pieces) (Kgs)

EUE tubing coupling

 1.9 2.500 3.875 0.84 2352 1976
2 3/8 3.063 4.875 1.55 1152 1786
2 7/8 3.668 5.250 2.40 800 1920
3 1/2 4.500 5.750 4.10 512 1229
4 5.000 6.000 4.82 392 1890
4 1/2 5.563 6.250 6.05 392 2372

Specificaiton Tubing Size OD (inches) Coupling Size OD (inches) Length (inches) Weight per Coupling (kgs ) Palletized Carton Quantity Palletized Carton Weight
(pieces) (Kgs)

NUE tubing couplig

 1.9 2.200 3.750 0.56 3468 1943
2 3/8 2.875 4.250 1.28 1690 2164
2 7/8 3.500 5.125 2.34 800 1872
3 1/2 4.250 5.625 3.71 512 1900
4 4.750 5.750 4.35 392 1706
4 1/2 5.200 6.125 4.89 392 1917

Hot Sale! API 5CT OCTG Female Shaft coupling N80/L80

IF YOU ARE INTERSTED IN OUR PROEUCT PLEASE CONTACT WITH ME AND LET ME KNOW THE DETAILS INFORMATION ABOUT THE PRODUCT, WE WILL GIVE YOU THE BEST PRICE ABND BEST SURVICE.

Sally Zhang

Tel:0086 181 3659 6692

Fax:0519 8526 8163

Mail:oilfield.sally@yahoo.com

Skype:sally77778

Web:http://www.oilfield-octg.com
