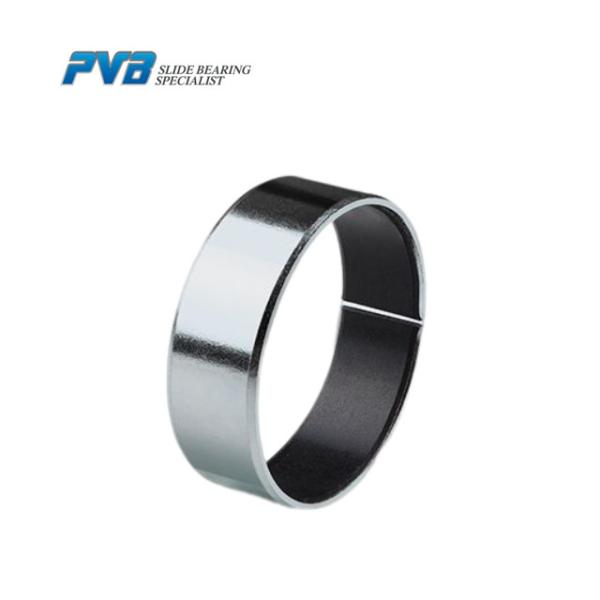

Steel Back Boned PTFE Soft Strip Solid Lubricant Bushing Bearing
Steel Back Boned PTFE Soft Strip Solid Lubricant Bushing Bearing
Steel Back Boned PTFE Soft Strip Solid Lubricant Bushing Bearing
Steel Back Boned PTFE Soft Strip Solid Lubricant Bushing Bearing
Specifications
Brand Name :
PVB
Model Number :
PEF-010
Certification :
ISO 9001;IATF 16949
Place of Origin :
China
Material :
Steel+PTFE Compound Type
Surface Treatment :
Tin Plating, Zin Plating
Avalability :
Cylindrical, Flange, Thrust Washer
Advantage :
Corrosion resistance
Performance :
Long Service Life
Characteristics :
Maintenance free, long life
Temperature Range :
-200°C to +260°C
Standard :
DIN 1494 / ISO 3547
Description

PEF-010 Steel back boned PTFE Soft Strip Solid Lubricant Bushing Bearing

PEF010 Steel back PTFE bearing is a steel back boned PTFE Tape which marks the material as high temperature resistant. Therefore, this type bearing bushing is the appropriate material for Powertrain applications -- the boned structure is especially designed for high frequent oscillating movements as seen in most drivetrain dampeners.

Bearings of more than 0.75 mm thickness can be produced with an interference fit in the housing. Various methods are available to protect the steel shell from corrosion.

Material Structure

Steel Back Boned PTFE Soft Strip Solid Lubricant Bushing Bearing

Steel+PTFE Tape

Availability

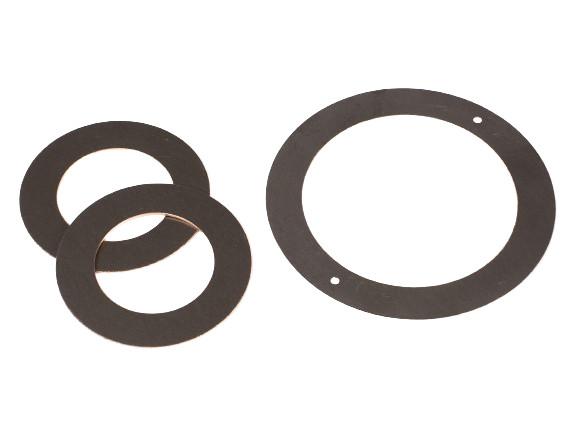

Different PTFE compounds are available. Fabricated parts include rolled bearings with or without an axial flange, deep-drawn bearings and die-cuts. The metal backing is available in four different steel thicknesses.

Application:


1.Sports equipment
2.Door hinges of automobile
