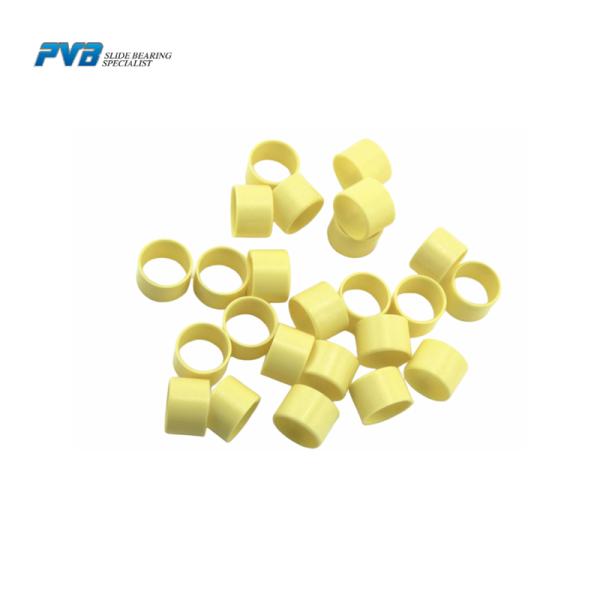

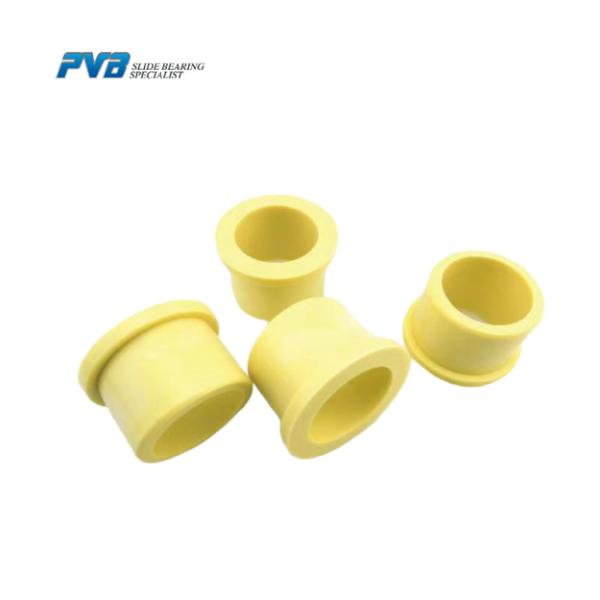

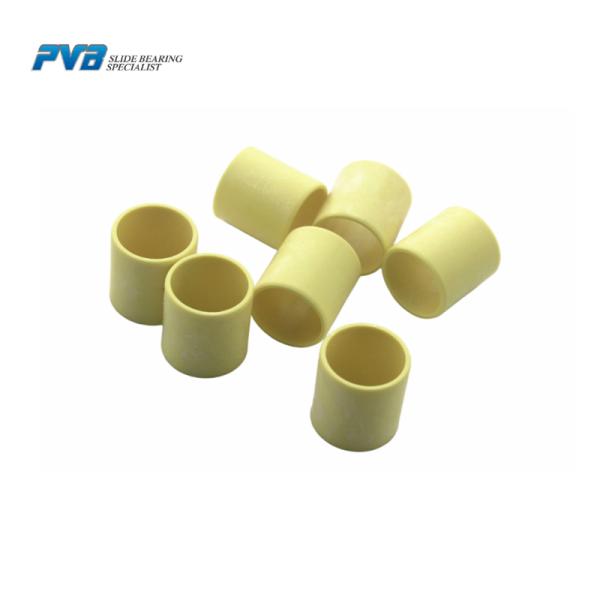

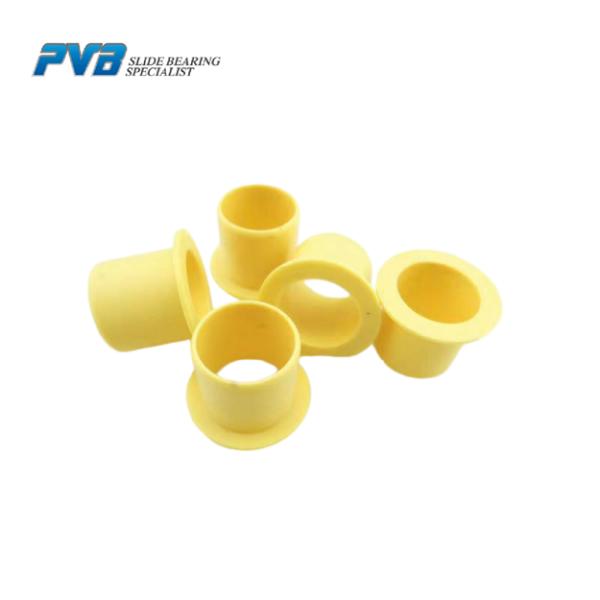

P102 Self Lubricating Plastic Bushing Polymer Flanged Linear Plain Bearings
P102 Self Lubricating Plastic Bushing Polymer Flanged Linear Plain Bearings
P102 Self Lubricating Plastic Bushing Polymer Flanged Linear Plain Bearings
P102 Self Lubricating Plastic Bushing Polymer Flanged Linear Plain Bearings
P102 Self Lubricating Plastic Bushing Polymer Flanged Linear Plain Bearings
P102 Self Lubricating Plastic Bushing Polymer Flanged Linear Plain Bearings
P102 Self Lubricating Plastic Bushing Polymer Flanged Linear Plain Bearings
P102 Self Lubricating Plastic Bushing Polymer Flanged Linear Plain Bearings
Specifications
Brand Name :
PVB
Model Number :
P102
Certification :
ISO 9001;IATF 16949
Place of Origin :
China
Material :
Plastic
Color :
Yellow
Type :
Cylindrical, Flange
Advantages :
Self Lubricating
Description

P102 Self Lubricating Bearing Plastic Bushing Polymer Flanged Linear Plain Bearings

P102 Plastic flange bushing is a type of plastic bushing. It is designed for low friction and wear resistance and it ischaracterized by their extremely low coefficient of friction while operating dry and minimal stick-slip effect.

Material:

Yellow Plastic

Feature:

  • Self-Lubricating and Maintenance-Free
  • Low Friction anChemical Resistance
  • Chemical Resistance
  • Lightweight and Cost-Effective
  • Suitable for Soft Shafts

Application

  • Dampening vibrations and eliminating the need for lubrication.
  • Automotive industry:In areas like steering systems, hinges, and pedal mechanisms.
  • Agricultural machinery: Where resistance to dirt and corrosion is important.

Technical Data


Material performance Table
Units
P102series
Test standard

General properties

Density		 g /cm3 1.46 ISO1183

Color
Yellow

Max. moisture absorption at 23℃, 50% RH
weight %		 0.3 ISO62

Max. moisture absorption
weight %		 1.2 ISO62

MechanicaI properties

Flexural modulus		 MPa 2800 ISO178

FIexu raI strength at 20℃		 MPa 80 ISO178

Max . recommended surface pressure (20℃)		 MPa 70

Shore Hardness (D-type)		 75 ISO868

PhysicaI and ther maI properties

Max . application temperature long-term		 ℃ 90

Max . application temperature short-term		 ℃ 120

Min . application temperature		 ℃ - 50

Thermal conductivity		 W/(m·k) 0.25 ISO22007

Coefic ient of thermal expansion (23℃)		 -1 -5
K ·10		 10 ISO11359

Electrical properties

Specific contact resistance		 Ω cm 1E14Min ICE60093

Surface resistance		 Ω 1E12Min ICE60093

Friction performance

Coeficient of friction, dynamic, against steel shaft		 μ 0.06-0.18

Max . rotational speed		 m/s 1.5

Max . pv value (dry operation)		 MPa · m/s 0.4
