Specifications
Model NO. :
YJV22 YJV32 YJV72
Current :
DC & AC
Insulation Material :
XLPE
Sheath Material :
PVC
Material Shape :
Round Wire
Wire Core Material :
Bare Copper Wire
Certification :
ISO, CCC, CE, RoHS
Model :
Yjv22 Yjv32
Brand :
Xinxin
Color :
Black/White
Shape :
Round/Flat
Conductor :
Copper/Aluminum
Insulation :
XLPE
Sheath :
PVC
Armor :
Steel Wire/Tape
Transport Package :
Wooden Steel Drum
Specification :
1.1*1.1*0.98m
Trademark :
Shanghai Shenghua Cable Group
Origin :
Shanghai, China
HS Code :
8544492100
Supply Ability :
100000
Description
YJV22 XLPE Power Cable

Product Name:YJV22 XLPE insulation PVC Sheathed Steel tape Armored Power Cable 0.6/1kV

Description:
CU/XLPE/STA/PVC, IEC 60502
IEC 60502, IEC 60228, GB/T 12706.1-2008.
CE, CCC, KEMA
0.6/1kV, suitable for underground laying

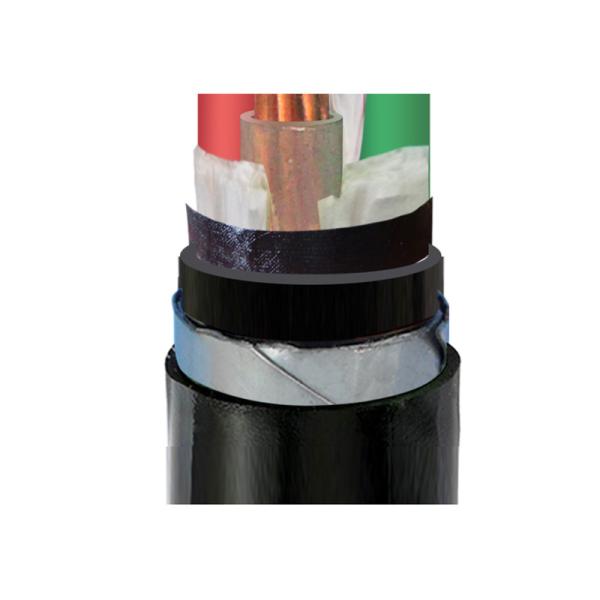

Constructions
Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation: XLPE/A
Inner Covering: PVC
Armoring: Steel Tape
Sheath: PVC type ST2 to IEC 60502, black
Note: Insulation color as per standards or at request

Applications
Suitable for U/G laying, Able to bear external mechanical forces but large pulling forces.
Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage: 0.6 / 1 kV
Max. Conductor Temp.: normal (90ºC), short circuit no more than 5 s (160ºC when section-area below 300mm2, 140ºC when section-area above 300mm2)
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0ºC
Min. Bending Radius: 15 *(cable O.D)

Certificates
CE, RoHS, CCC, KEMA and more others at request
