Specifications
Model NO. :
HPMCU-300V 2x2x20AWG.
Application :
Underground
Conductor Material :
Copper
Sheath Material :
TPU
Insulation Material :
PVC
Material Shape :
Round Wire
Range of Application :
Mine
Certification :
ISO9001, CE, CCC, RoHS, VDE
Brand :
Shanghai Shenghua
Conductor :
Tinned Copper Wire
Insulation :
PVC
Insulation Color :
Black/Brown,Blue/Violet
Filler :
Nylon Wire
Individual Shield :
Aluminum -Foil
Overall Shield :
Aluminum -Foil
Drain Wire :
Tinned Copper Wire.
Jacket :
TPU
Jacket Color :
Black
Test Voltage :
3000V/1min
Conductor Resistance :
34.6 Omega;/ Km
Rated Voltage :
300V
Transport Package :
1000m/Drum
Specification :
2x2x20AWG
Trademark :
SHAN CABLE
Origin :
Shanghai China
HS Code :
8544492100
Supply Ability :
6812km/Week
Description

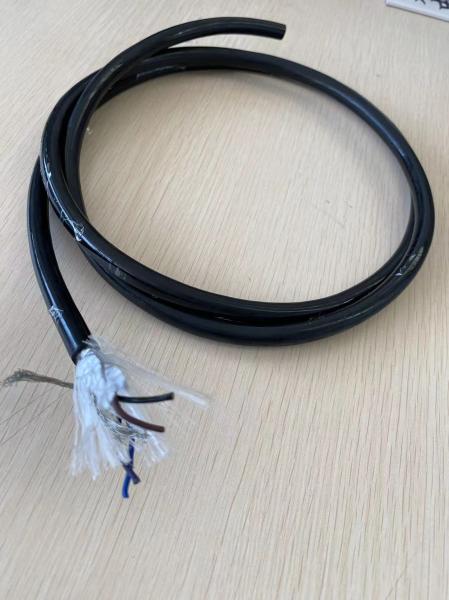

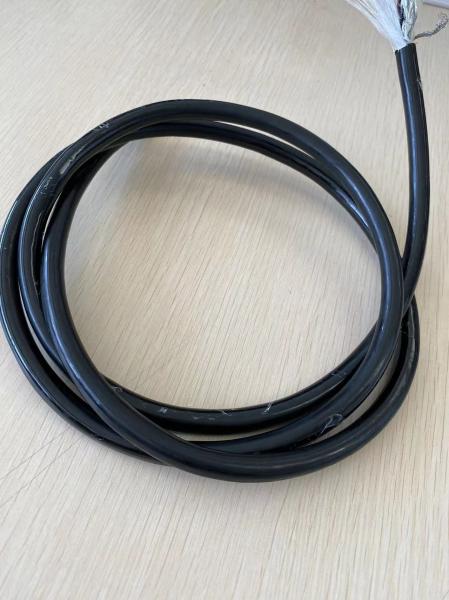

TPU Outer Sheathed Instrumentation Cable For Mining HPMCU-300V 2x2x20AWG.
  1. Cable Name :TPU Instrumentation Cable HPMCU-300V 2x2x20AWG.
  2. Technical Specifications
Diagrammatic cross-section Insulation Color)
Insulation

Black&Brown,Blue&Violet
Marking on the Jacket
SHANGHAI SHENGHUA HPMCU-SP -300V 2X2X20AWG***Meter

Marking should be :Clearness,beautiful,

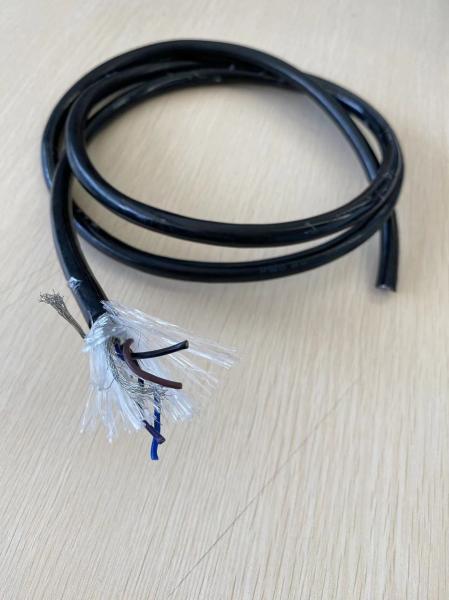

Construction
Conductor structure Jacket
Conductor Material Tinned copper (Material TPU
Conductor Size 26/0.16mm(AWG20) Average Thickness 1.6mm
Conductor Q.D 0.94mm Min Thickness) 1.5mm
Insulation Material SR-PVC O.D. 9.3±0.5 mm
Insulation Q.D.) 1.60±0.05mm Color Black
Min Thickness 0.28mm
Average Thickness 0.33mm
Shield Electrical Characteristics)
Twisted pitch 32±5mm conductor resistance,at 20ºC) 34.6 Ω5/KM
Individually Shield Aluminum-Foil Rated voltage) 300V
Filler Nylon Wire Voltage withstand test) 2000V/1min
Overall Shield Aluminum-Foil (Rated temperature) 80ºC
Drain wire 26/0.16mm
(Tinned Copper)
Wrapped material
(Non-woven fabrics)
Braid Physical Properties
aterial / Tensile strength ≥10.3 MPa
Size / Elongation
/
/

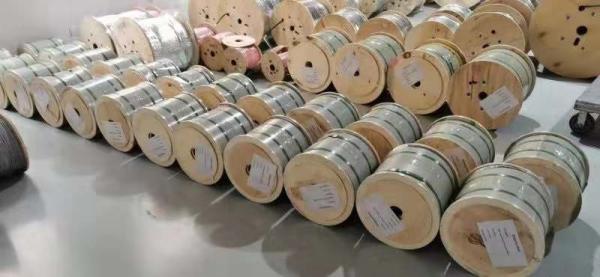

  1. Packing request

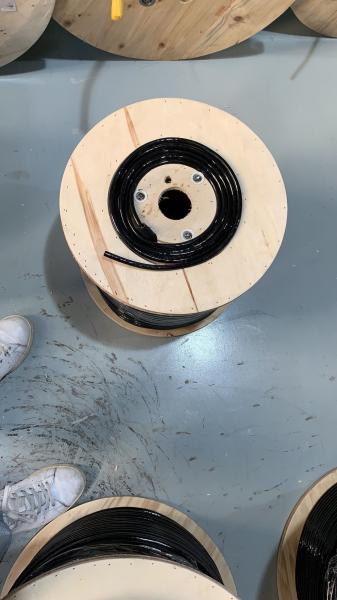

  1. Using Reel or wooden drum ,and stored in a dry place without any corrosive gas
